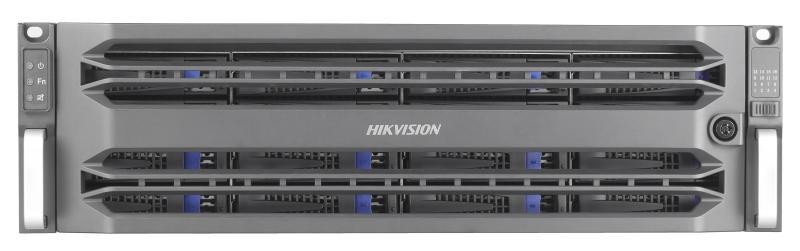

16-slot Cost-efficient Super Capacity Storage

16*18 TB IoT SMR enterprise HDD
IoT fully sealed helium HDD technology
Surveillance-specialized direct storage (Direct Streaming mode)
Highly cost efficient, safe and reliable
Energy saving and space saving
Easy operation and maintenance
SMR HDD providing 5-year warranty

View Less

Ficha Técnica

Modelos disponibles:

DS-AT1000S

DS-AT1000S/288

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Red
ProtocoloRTSP, ONVIF, HKSDK

Interfaces
USB2, USB 3.0
VGASupported (VGA and RS-232 interface cannot be used at the same time)
Data network interface3, 1000 Mbps Ethernet interface
Gestión1, 1000 Mbps Ethernet interface
MiniSAS interface2
COM1, RS-232
HDMI2

Almacenamiento
HDD slot16
Interface/capacitySATA, Up to 18TB
RAIDRAID5,RAID6,iRAID

Rendimiento
Direct Streaming Mode: video (2 Mbps) + picture256-ch

Hardware
Procesador64-bit multi-core processor
Cache12 GB, extendable to 32 GB

Administración de almacenamiento
Disk managementDisk detection pre-alarm and repair
Gestión lógica del volumenRecording volume management

Gestión de grabación
Modo grabaciónContinuous recording, manual recording, and alarm recording
Video protectionVideo lock, video loss alarm
Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information

Mantenimiento de dispositivo
Modo de gestiónGUI based on web, serial port CLI, platform
Modo de alarmaAudio, indicator, GUI

HDD
HDD ModelHikvision,HK7218AH,18T;

General
Fuente de alimentación100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
Consumption(with HDDs)≤ 255 W
Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
HumidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
Dimensiones (W × D × H)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
Weight (without HDDs)≤ 20 Kg (44.1 lb)

Red

Protocolo

RTSP, ONVIF, HKSDK

Interfaces

USB

2, USB 3.0

VGA

Supported (VGA and RS-232 interface cannot be used at the same time)

Data network interface

3, 1000 Mbps Ethernet interface

Gestión

1, 1000 Mbps Ethernet interface

MiniSAS interface

COM

1, RS-232

HDMI

Almacenamiento

HDD slot

Interface/capacity

SATA, Up to 18TB

RAID

RAID5,RAID6,iRAID

Rendimiento

Direct Streaming Mode: video (2 Mbps) + picture

256-ch

Hardware

Procesador

64-bit multi-core processor

Cache

12 GB, extendable to 32 GB

Administración de almacenamiento

Disk management

Disk detection pre-alarm and repair

Gestión lógica del volumen

Recording volume management

Gestión de grabación

Modo grabación

Continuous recording, manual recording, and alarm recording

Video protection

Video lock, video loss alarm

Searching mode

Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information

Downloading mode

Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information

Mantenimiento de dispositivo

Modo de gestión

GUI based on web, serial port CLI, platform

Modo de alarma

Audio, indicator, GUI

HDD

HDD Model

Hikvision,HK7218AH,18T;

General

Fuente de alimentación

100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply

Consumption(with HDDs)

≤ 255 W

Environment temperature

Working: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)

Humidity

Working: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)

Dimensiones (W × D × H)

486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)

Weight (without HDDs)

≤ 20 Kg (44.1 lb)
