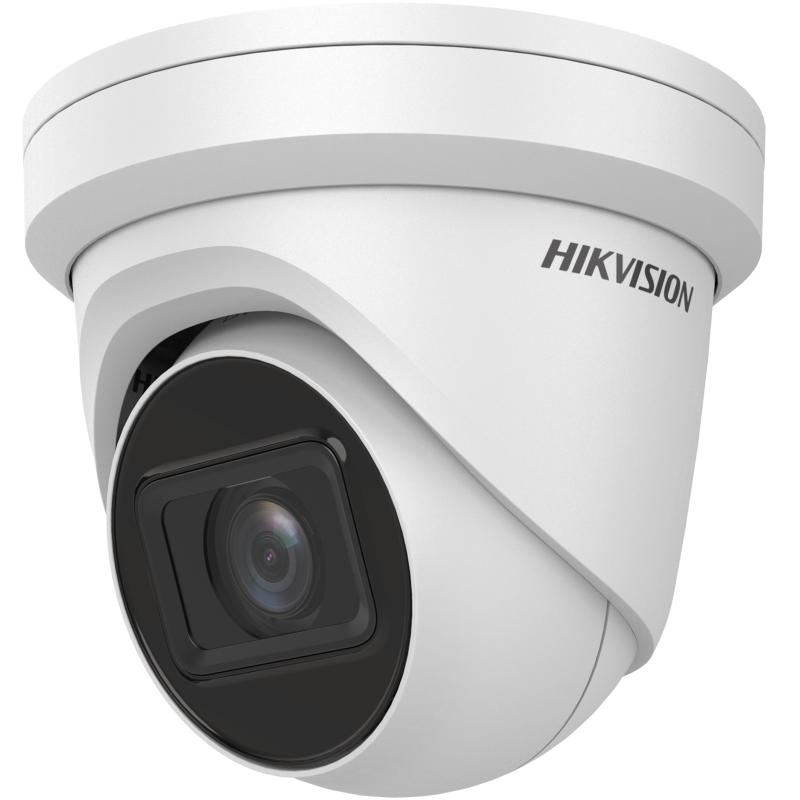

2 MP Acusense Motorized Varifocal Turret Network Camera

High quality imaging with 2 MP resolution
Motorized Varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology
Focus on human and vehicle classification based on deep learning
Audio and alarm interface available
Water and dust resistant IP67 and vandal proof IK10

View Less

Ficha Técnica

Modelos disponibles:

DS-2CD2H26G2T-IZS(2.8-12mm)(C)

DS-2CD2H26G2T-IZS

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 1/2.8" Progressive Scan CMOS
Max. Resolución 1920 × 1080
Iluminación mínima Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Día y Noche IR cut filter
Tiempo de obturación 1/3 s to 1/100,000 s
Ajuste de ángulo Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lente
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°, diagonal FOV 138° to 36°
Lente Varifocal lens, motorized lens, 2.8 to 12 mm
Apertura F1.4
Montura del lente Ø14
Iris Type Fixed

DORI
DORI 2.8 to 12 mm: Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m Tele: D: 131.0 m, O: 52.0 m, R: 26.2 m, I: 13.1 m

Iluminador
IR Wavelength 850 nm
Rango de luz suplementaria Up to 40 m
Luz de suplemento inteligente Yes
Tipo de luz suplementaria IR

Vídeo
Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Compresión de video Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Vídeo bitrate 32 Kbps to 8 Mbps
Tipo H.264 Baseline Profile/Main Profile/High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR/VBR
Codificación de video escalable (SVC) H.264 and H.265 encoding
Región de interés (ROI) 1 fixed region for main stream and sub-stream
Recorte objetivo Yes

Audio
Tipo de audio Mono sound
Filtro de ruido ambiental Yes
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Red
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Almacenamiento en red NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente iVMS-4200, Hik-Connect, Hik-Central
Navegador web Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen
Wide Dynamic Range (WDR) 120 dB
Máscara de privacidad 4 programmable polygon privacy masks
Interruptor día/noche Day, Night, Auto, Schedule
Mejora de la imagen BLC, HLC, 3D DNR
Interruptor de parámetros de imagen Yes
Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR ≥ 52 dB

Interfaz
Alarma 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento
Evento Básico Motion detection (human and vehicle targets classification), video tampering alarm, exception
Evento inteligente Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Captura de la cara Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
alimentación 12 VDC ± 25%, 0.92 A, max. 11.04 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material Metal
Dimensión Ø138.3 mm × 126 mm (Ø5.5" × 5.0")
Dimensión del paquete 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Approx. 830 g (1.8 lb.)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Con peso del paquete Approx. 1095 g (2.4 lb.)
Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función general Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Certificaciones
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Seguridad UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1)
Ambiente CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protección IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Cámara

Sensor de imagen

1/2.8" Progressive Scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR

Día y Noche

IR cut filter

Tiempo de obturación

1/3 s to 1/100,000 s

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lente

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°, diagonal FOV 138° to 36°

Lente

Varifocal lens, motorized lens, 2.8 to 12 mm

Apertura

F1.4

Montura del lente

Ø14

Iris Type

Fixed

DORI

2.8 to 12 mm: Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m Tele: D: 131.0 m, O: 52.0 m, R: 26.2 m, I: 13.1 m

Iluminador

IR Wavelength

850 nm

Rango de luz suplementaria

Up to 40 m

Luz de suplemento inteligente

Yes

Tipo de luz suplementaria

Vídeo

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Compresión de video

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

1 fixed region for main stream and sub-stream

Recorte objetivo

Yes

Audio

Tipo de audio

Mono sound

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Red

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Almacenamiento en red

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

Wide Dynamic Range (WDR)

120 dB

Máscara de privacidad

4 programmable polygon privacy masks

Interruptor día/noche

Day, Night, Auto, Schedule

Mejora de la imagen

BLC, HLC, 3D DNR

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

SNR

≥ 52 dB

Interfaz

Alarma

1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento

Evento Básico

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Evento inteligente

Scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

Captura de la cara

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

alimentación

12 VDC ± 25%, 0.92 A, max. 11.04 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Material

Metal

Dimensión

Ø138.3 mm × 126 mm (Ø5.5" × 5.0")

Dimensión del paquete

170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Approx. 830 g (1.8 lb.)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Con peso del paquete

Approx. 1095 g (2.4 lb.)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Función general

Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)

Seguridad

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1)

Ambiente

CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

Protección

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
