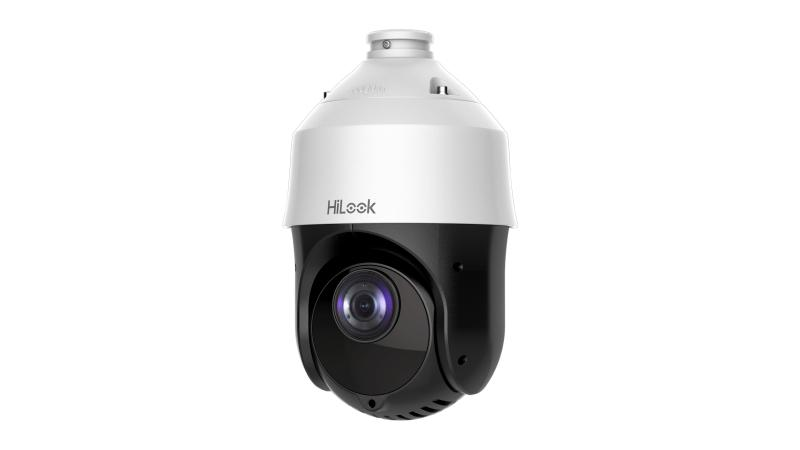

4-inch 2 MP 15X Powered by DarkFighter IR Analog Speed Dome

  • Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Excellent night-time performance with up to 100 m enhanced IR
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Available models:

PTZ-T4215I-D(E)

Especificación

  • Cámara
  • Sensor de imagen1/2.8" Progressive Scan CMOS
  • Max. Resolución1920 × 1080
  • Iluminación mínimaColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
  • Velocidad de obturaciónPAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
  • Día y NocheIR cut filter
  • Zoom15× optical, 16 × digital
  • Lente
  • Longitud focal5 mm to 75 mm, 15 × optical
  • FOVHorizontal FOV: 53.8° to 4.0° (wide to tele)
  • EnfoqueAuto, semi-auto, manual
  • AperturaF1.6 to F3.5
  • Velocidad del ZoomApprox. 2.4 s (optical, wide to tele)
  • Iluminador
  • Tipo de luz suplementariaIR
  • Rango de luz suplementariaUp to 100 m
  • PTZ
  • Rango de movimiento (pan)360° endless
  • Rango de movimiento (tilt)-15° to 90° (auto flip)
  • Velocidad de movimiento horizontal (pan)Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
  • Velocidad de vertical (tilt)Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
  • Proportional PanRotation speed can be adjusted automatically according to zoom multiples
  • Preajustes256
  • Congelación preestablecidaYes
  • Escaneo de patrulla10 patrols, up to 32 presets for each patrol
  • Patrón de escaneo5 patterns, record time over 10 minutes for each scan
  • Acción del parquePreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • Pantalla de estado de PTZYes
  • Tarea programadaPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Memoria de apagadoYes
  • Vídeo
  • Frame Rate50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
  • Red
  • ProtocolosUTC protocol (or HIKVISION-C protocol in previous DVR)
  • Imagen
  • Configuración de imagenAGC, white balance
  • Wide Dynamic Range (WDR)≥ 120 dB
  • Image StabilizationEIS
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Máscara de privacidad8 programmable privacy masks
  • Enfoque regionalYes
  • Interfaz
  • Salida de VídeoSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • RS-485Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • General
  • alimentación12 VDC, max. 20 W (IR: 7 W)
  • DimensiónØ 165.9 mm × 290 mm (Ø 6.5" × 11.4")
  • Approx. 2 kg (4.41 lb.)
  • Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
  • IdiomaEnglish
  • Certificaciones
  • ProtecciónIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection

Especificación

Firmware
Aplicado a:
PTZ-T4215I-D(E)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
