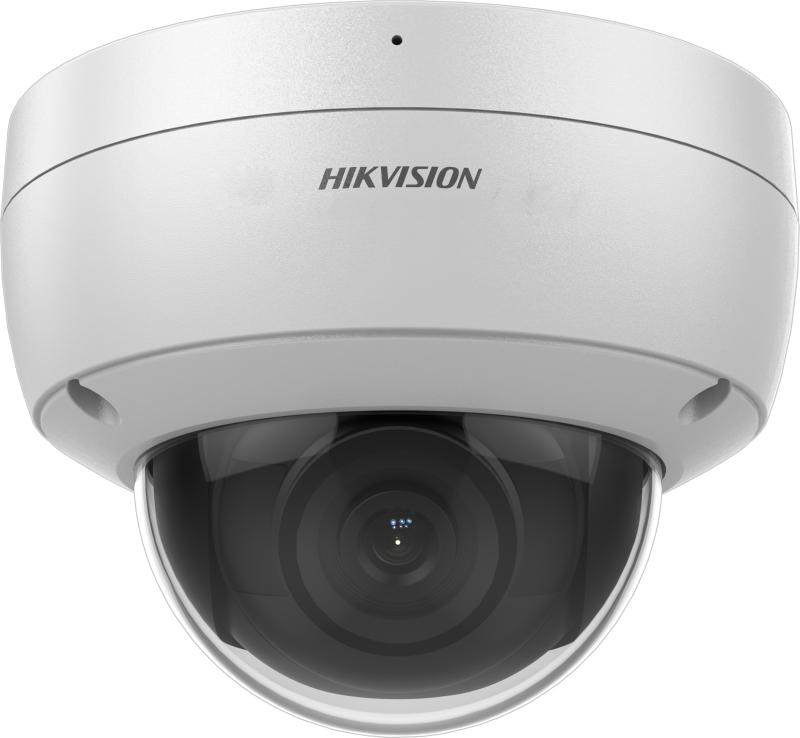

2 MP Build-in Mic Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to DWDR technology
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range
  • Support up to 256 GB SD card storage
  • Built-in microphone for real-time audio security

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD1123G0-IUF(2.8mm)(C)
DS-2CD1123G0-IUF(4mm)(C)
DS-2CD1123G0-IUF
Data Sheet

Specification

  • กล้อง
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Wide Dynamic RangeDigital WDR
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
  • Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
  • Lens MountM12
  • FocusFixed
  • ApertureF2.0
  • Illuminator
  • IR Wavelength850 nm
  • IR RangeUp to 30 m
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main Stream supports
  • H.265+Main Stream supports
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Built-in MicrophoneYes
  • Hardware ResetYes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception
  • General
  • Linkage MethodUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Camera MaterialMetal & Plastic
  • Camera DimensionØ120 mm × 92.2 mm (Ø4.7" × 3.6")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Camera WeightApprox. 410 g (0.9 lb.)
  • With Package WeightApprox. 610 g (1.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Web Client LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware VersionV5.5.120
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • Power Supply12 VDC ± 25% PoE: 802.3af, Class 3
  • Power InterfaceØ5.5 mm coaxial power plug
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

กล้อง
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Wide Dynamic Range
Digital WDR
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens Mount
M12
Focus
Fixed
Aperture
F2.0
Illuminator
IR Wavelength
850 nm
IR Range
Up to 30 m
Video
Max. Resolution
1920 × 1080
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main Stream supports
H.265+
Main Stream supports
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone
Yes
Hardware Reset
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception
General
Linkage Method
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
Camera Material
Metal & Plastic
Camera Dimension
Ø120 mm × 92.2 mm (Ø4.7" × 3.6")
Package Dimension
134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Camera Weight
Approx. 410 g (0.9 lb.)
With Package Weight
Approx. 610 g (1.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version
V5.5.120
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply
12 VDC ± 25% PoE: 802.3af, Class 3
Power Interface
Ø5.5 mm coaxial power plug
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
กล้อง
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Wide Dynamic RangeDigital WDR
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
  • Lens MountM12
  • FocusFixed
  • ApertureF2.0
Illuminator
  • IR Wavelength850 nm
  • IR RangeUp to 30 m
Video
  • Max. Resolution1920 × 1080
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main Stream supports
  • H.265+Main Stream supports
  • Region of Interest (ROI)1 fixed region for main stream
Audio
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, 3D DNR
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Built-in MicrophoneYes
  • Hardware ResetYes
Event
  • Basic Event Motion detection, video tampering alarm, exception
General
  • Linkage MethodUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Camera MaterialMetal & Plastic
  • Camera DimensionØ120 mm × 92.2 mm (Ø4.7" × 3.6")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Camera WeightApprox. 410 g (0.9 lb.)
  • With Package WeightApprox. 610 g (1.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Web Client LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware VersionV5.5.120
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • Power Supply12 VDC ± 25% PoE: 802.3af, Class 3
  • Power InterfaceØ5.5 mm coaxial power plug
Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.23_241008
Applied to:
DS-2CD1123G0-IUF(2.8mm)(C)
DS-2CD1123G0-IUF(4mm)(C)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Sales
Technical Support
Online Service
สถานที่ซื้อ
ติดต่อเรา
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
