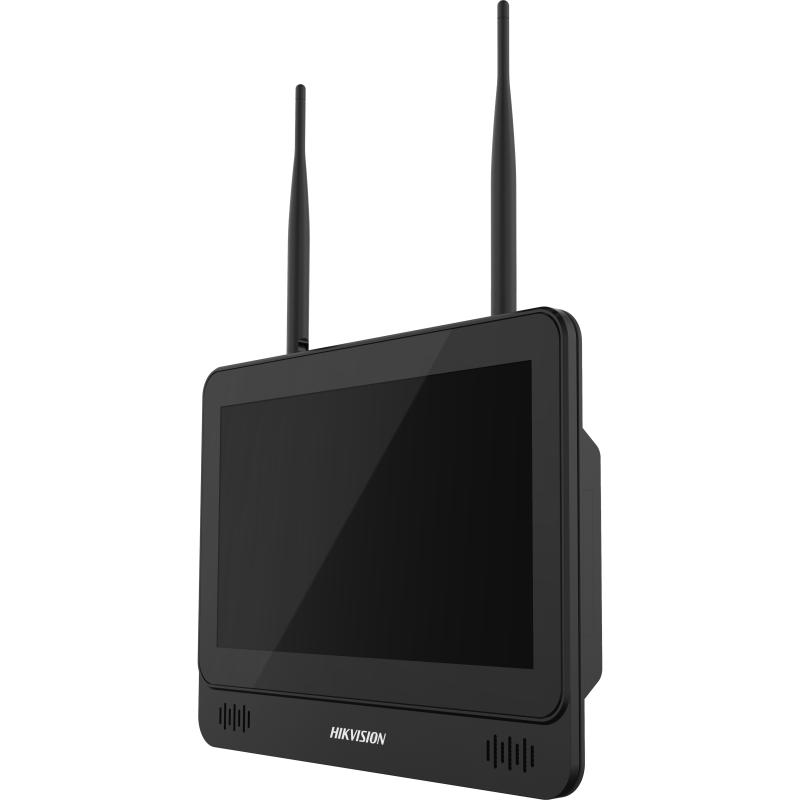

4-ch all-in-one NVR

  • 11.6-inch LCD display and HDMI output
  • Up to 4-ch@4 MP (15 fps)/4-ch@1080p (30 fps) decoding capability
  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 4-ch network camera inputs, connectable with Wi-Fi cameras
  • Standing or wall-mounted installation

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7604NI-L1/W
DS-7604NI-L1/W-1T
DS-7604NI-L1/W
Data Sheet

Specification

  • Video and Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • LCD Output11.6-inch LCD, 1366 × 768
  • Audio Output1-ch, 3.5 mm connector 1-ch, built-in speaker
  • Two-Way Audio1-ch, 3.5 mm connector
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding Capability4-ch@4 MP (15 fps), 4-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Wireless Parameter
  • Frequency Band2.4 GHz
  • Antenna Structure2 × 2MIMO
  • Transmission Speed300 Mbps
  • Transmission StandardIEEE 802.11b/g/n
  • Auxiliary Interface
  • SATA1
  • CapacityUp to 6 TB capacity
  • USB Interface2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W (without HDD)
  • Working Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)300 x 230 x 46.3 mm (11.8" × 9.0" × 1.8")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
LCD Output
11.6-inch LCD, 1366 × 768
Audio Output
1-ch, 3.5 mm connector 1-ch, built-in speaker
Two-Way Audio
1-ch, 3.5 mm connector
Decoding
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback
4-ch
Decoding Capability
4-ch@4 MP (15 fps), 4-ch@1080p (30 fps)
Stream Type
Video, Video & Audio
Network
Remote Connection
16
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Wireless Parameter
Frequency Band
2.4 GHz
Antenna Structure
2 × 2MIMO
Transmission Speed
300 Mbps
Transmission Standard
IEEE 802.11b/g/n
Auxiliary Interface
SATA
1
Capacity
Up to 6 TB capacity
USB Interface
2 × USB 2.0
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 10 W (without HDD)
Working Temperature
0 °C to 40 °C (32 °F to 104 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
300 x 230 x 46.3 mm (11.8" × 9.0" × 1.8")
Weight
≤ 1 kg (without HDD, 2.2 lb.)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN50130-4, EN 61000-3-2,EN 61000-3-3
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • LCD Output11.6-inch LCD, 1366 × 768
  • Audio Output1-ch, 3.5 mm connector 1-ch, built-in speaker
  • Two-Way Audio1-ch, 3.5 mm connector
Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding Capability4-ch@4 MP (15 fps), 4-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Wireless Parameter
  • Frequency Band2.4 GHz
  • Antenna Structure2 × 2MIMO
  • Transmission Speed300 Mbps
  • Transmission StandardIEEE 802.11b/g/n
Auxiliary Interface
  • SATA1
  • CapacityUp to 6 TB capacity
  • USB Interface2 × USB 2.0
General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W (without HDD)
  • Working Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)300 x 230 x 46.3 mm (11.8" × 9.0" × 1.8")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.32.126_240522
LCD-wifi NVR_K20B2_V4.32.126 build240522_Release Notes
Applied to:
DS-7604NI-L1/W
DS-7604NI-L1/W-1T
