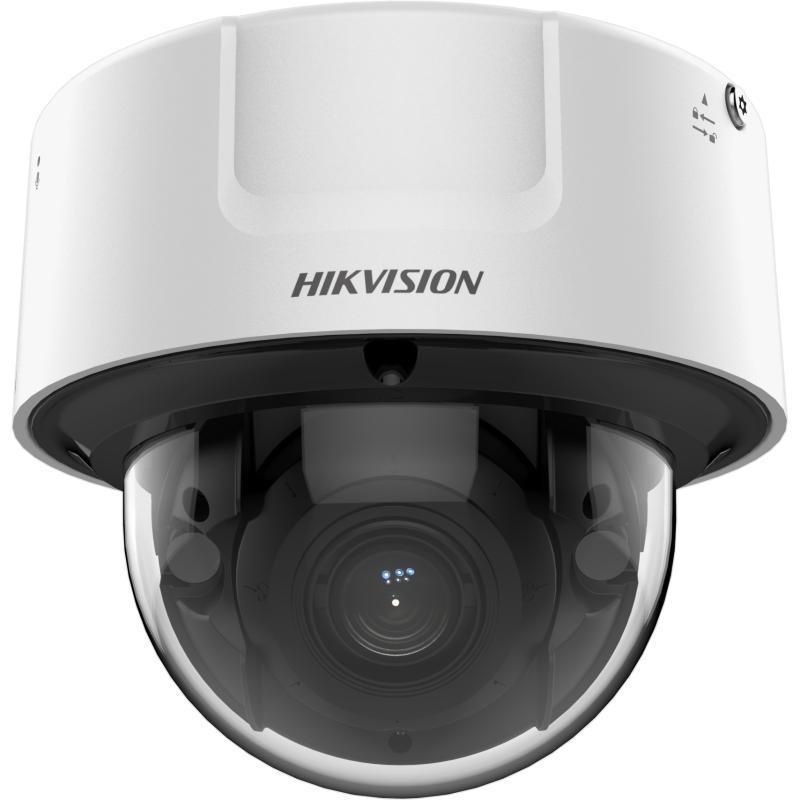

12MP DeepinView Indoor Moto Varifocal Dome Camera

  • High quality imaging with 12 MP resolution
  • Clear imaging against strong back light due to DWDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology that enables smooth live view and data self-correcting in poor network
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • Vandal proof (IK10)

Available models:

iDS-2CD71C5G0-IZS(8-32mm)
iDS-2CD71C5G0-IZS(2.8-12mm)

Specification

  • Kamera
  • Image Sensor1/1.7" Progressive Scan CMOS
  • Max. Resolution4000 × 3000
  • Min. IlluminationColor: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusAuto, semi-auto, manual
  • Focal Length & FOV2.8 to 12 mm, horizontal FOV 96° to 46.2°, vertical FOV 69.2° to 27.2°, diagonal FOV 131° to 45.2° 8 to 32 mm, horizontal FOV 37.8° to 13.6°, vertical FOV 27.8° to 10.3°, diagonal FOV 48.6° to 17.4°
  • Aperture2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.7 to F1.73
  • Lens MountIntegrated
  • Illuminator
  • Supplement Light Range2.8 to 12 mm: 30 m 8 to 32 mm: 50 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Video
  • Main Stream50Hz: 25fps (4096 × 2160,3840 × 2160,3072 × 1728,2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (4096 × 2160,3840 × 2160,3072 × 1728,2560 × 1440, 1920 × 1080, 1280 × 720) 50Hz: 20fps (4000 × 3000) 60Hz: 20fps (4000 × 3000)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.265 and H.264 support
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
  • Audio TypeMono sound
  • Network
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Smooth StreamingYes
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
  • Image
  • Wide Dynamic Range (WDR)Digital WDR
  • Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥52dB
  • Interface
  • Alarm 1 input, 1 output (max. 24 VDC, 1 A)
  • Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound,1 built-in microphone
  • RS-4851 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Video Output1 Vp-p Composite Output(75Ω/CVBS)(Only for Debug)
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
  • Power Output12 VDC, max. 100 mA (supported by all power supply types)
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Trigger recording:memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
  • Smart EventLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
  • Deep Learning Function
  • Face CaptureDetects up to 30 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Up to 3 face libraries with up to 30000 faces each are configurable; Recognizes face identity via face modeling, grading and comparing to those in face library; Supports face library encryption.
  • Multi-target-type DetectionSupports simultaneous detection of human body and face Gets 8 face features and 13 human body features
  • People CountingYes
  • Queue ManagementDetects queuing-up people number, and waiting time of each person Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis
  • Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
  • MetadataMetadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
  • General
  • Power12 VDC ± 20%, 0.83 A, max. 9.96 W two-core terminal block, reverse polarity protection; 24 VAC ± 20%; , 0.85 A, max. 12 W PoE(802.3af, 36 V to 57 V), 0.35 A to 0.21 A, max. 12 W
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F)
  • DimensionØ140.5 × 122.6 mm (Ø5.5″ × 4.8″)
  • Package Dimension244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
  • Approx. 950 g (2.1 lb.)
  • With Package WeightApprox. 1300 g (2.9 lb.)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIK10(IEC 62262:2002)

Specification

Firmware
Applied to:
iDS-2CD71C5G0-IZS(8-32mm)
iDS-2CD71C5G0-IZS(2.8-12mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
