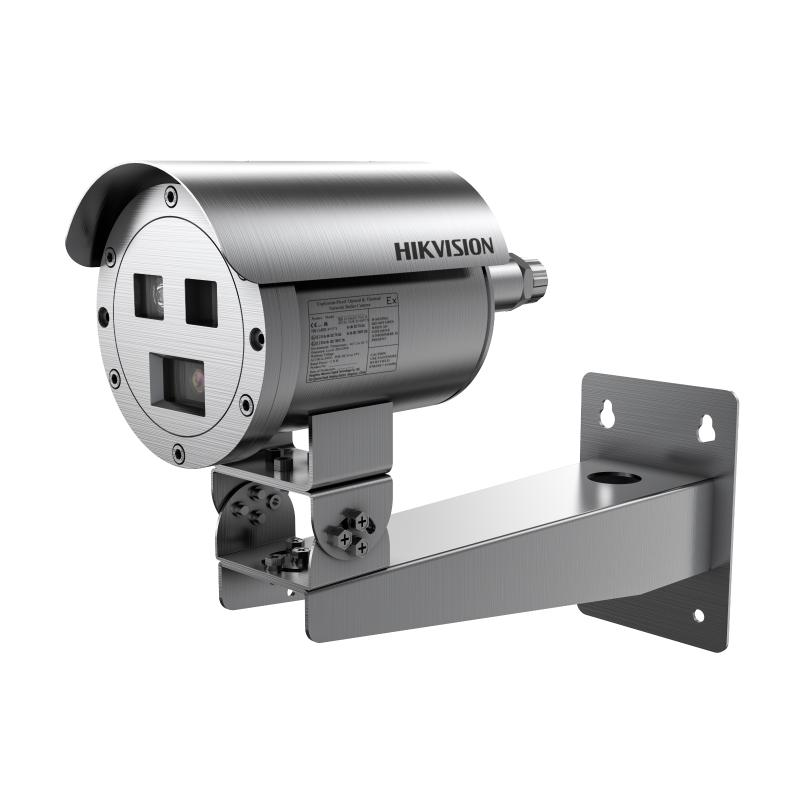

Explosion-Proof Thermographic Network Bullet Camera

High sensitivity sensor with 384 x 288 resolution
NETD is less than 35 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
High quality detector with 10 years warranty
316L Stainless Steel enclosure, protecting camera in corrosive environments and extending reliability and longevity far beyond standard cameras
ATEX, IECEx, NEMA 4X Certificated

View Less

Data Sheet

Available models:

DS-2TD2537T-15/Q

EOL

Specification
Resources
Accessories

Data Sheet

Thermal
Max. Resolution384 × 288

Thermal Module
Image sensorVanadium Oxide Uncooled Focal Plane Arrays
Pixel Interval17 μm
NETDless than 35 mk (@25°C), F#=1.0
MRAD1.13 mrad
Field of View24.2° × 18.4° (H × V)
Min. Focusing Distance3 m
ApertureF 1.0
Lens (Focal Length)15 mm
Response waveband8 μm to 14 μm

Optical Module
Max. Resolution2688 × 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
Field of View84.0° × 44.8°(H × V)
Aperture RangeF1.6
WDR120 dB
Shutter Speed1s to 1/100,000s
Day & NightIR cut filter with auto switch
Focal Length4 mm

Smart Function
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20°C to 550°C (-4°F to 1,022°F)
Temperature AccuracyMax (± 2°C, ± 2%)

Infrared
IR Distanceup to 30m
IR Intensity and AngleAutomatically adjusted

Network
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)」
Sub streamThermal: 25 fps (704 × 576, 384 × 288, 352 × 288) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video compressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live viewUp to 20
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
Security measuresUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm Input2-ch inputs (0 to 5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input1 3.5mm Mic in/Line in interface. Line input: 2 to 2.4V[p-p], output impedance:1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording
Application ProgrammingSupport ISAPI, HIKVISION SDK and third-party management platform
ClientiVMS-4200
Web BrowserGoogle Chrome 57+, Mozilla Firefox 52+, Internet Explorer 10+, Mac Safari 12+

General
Menu Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Power100 to 240 VAC, PoE (802.3af)
Power Consumption100 to 240 VAC, PoE (802.3af), max.8W
Work Temperature/Humidity-40°C to 60°C (-40°F to 140°F), 90% or less
Protection LevelIP68 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions286.7 mm × 175.2 mm × 150.1 mm (11.29″ × 6.9″ × 5.91″)
WeightApprox. 5.85 kg (12.90 lb)

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
ProtectionIP68: IEC 60529-2013
Explosion-Proof ProtectionATEX: II 2 G Ex db IIC T6 Gb/II 2 D Ex tb IIIC T80°C Db IECEx: Ex db IIC T6 Gb/ Ex tb IIIC T80°C Db
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018), C5

Thermal

Max. Resolution

384 × 288

Thermal Module

Image sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Pixel Interval

17 μm

NETD

less than 35 mk (@25°C), F#=1.0

MRAD

1.13 mrad

Field of View

24.2° × 18.4° (H × V)

Min. Focusing Distance

3 m

Aperture

F 1.0

Lens (Focal Length)

15 mm

Response waveband

8 μm to 14 μm

Optical Module

Max. Resolution

2688 × 1520

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)

Field of View

84.0° × 44.8°(H × V)

Aperture Range

F1.6

WDR

120 dB

Shutter Speed

1s to 1/100,000s

Day & Night

IR cut filter with auto switch

Focal Length

4 mm

Smart Function

VCA(Video Content Analysis)

4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.

Temperature Measurement

3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).

Temperature Range

-20°C to 550°C (-4°F to 1,022°F)

Temperature Accuracy

Max (± 2°C, ± 2%)

Infrared

IR Distance

up to 30m

IR Intensity and Angle

Automatically adjusted

Network

Main Stream

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)」

Sub stream

Thermal: 25 fps (704 × 576, 384 × 288, 352 × 288) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)

Video compression

H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile

Audio compression

G.711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous live view

Up to 20

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security measures

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration

Alarm Input

2-ch inputs (0 to 5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage

Audio Input

1 3.5mm Mic in/Line in interface. Line input: 2 to 2.4V[p-p], output impedance:1 KΩ ± 10%

Audio Output

Linear Level; Impedance: 600 Ω

Ethernet

1 RJ45 10M/100M Self-adaptive Ethernet interface

SD Memory Card

Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

Application Programming

Support ISAPI, HIKVISION SDK and third-party management platform

Client

iVMS-4200

Web Browser

Google Chrome 57+, Mozilla Firefox 52+, Internet Explorer 10+, Mac Safari 12+

General

Menu Language

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Power

100 to 240 VAC, PoE (802.3af)

Power Consumption

100 to 240 VAC, PoE (802.3af), max.8W

Work Temperature/Humidity

-40°C to 60°C (-40°F to 140°F), 90% or less

Protection Level

IP68 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions

286.7 mm × 175.2 mm × 150.1 mm (11.29″ × 6.9″ × 5.91″)

Weight

Approx. 5.85 kg (12.90 lb)

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)

Safety

CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005

Protection

IP68: IEC 60529-2013

Explosion-Proof Protection

ATEX: II 2 G Ex db IIC T6 Gb/II 2 D Ex tb IIIC T80°C Db IECEx: Ex db IIC T6 Gb/ Ex tb IIIC T80°C Db

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018), C5
