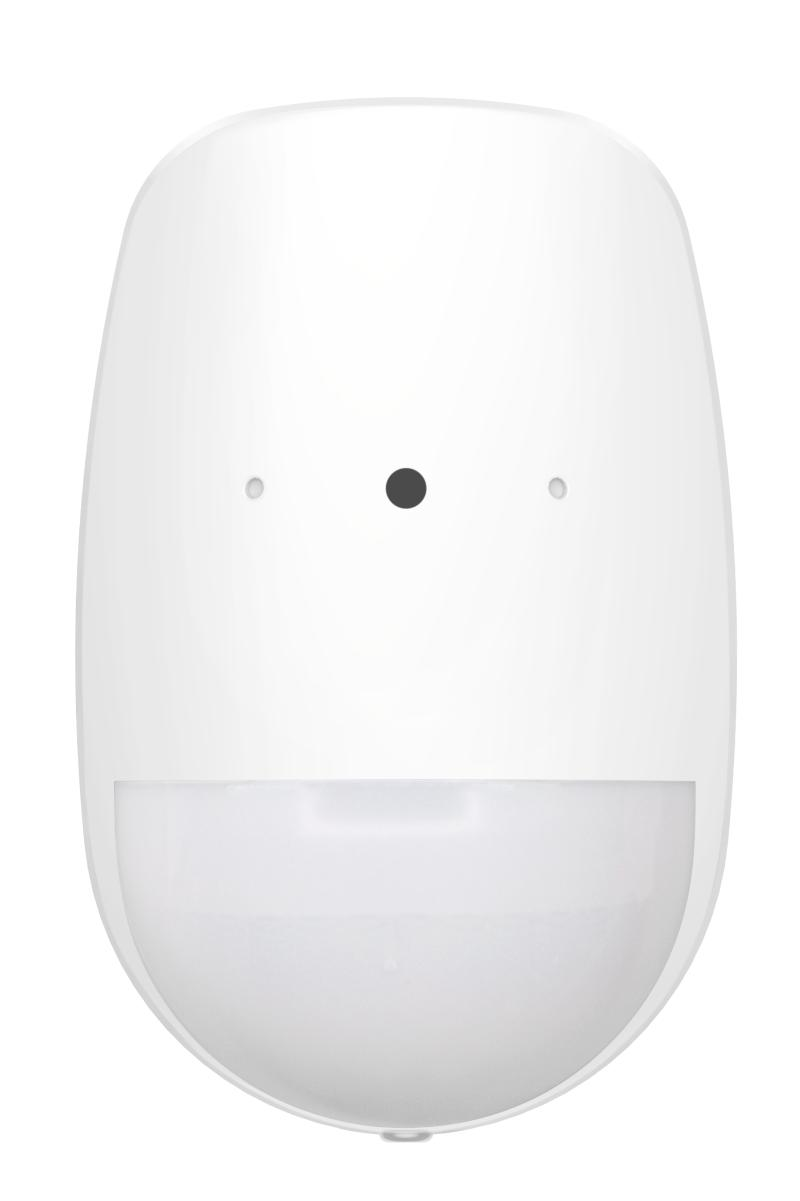

Wired PIR-Glass Break Detector

  • PIR Detection Range: 12m / 85.9°
  • Glass Break Range: 8m / 120°
  • Up to 30KG pet immunity
  • Selectable EOL resistors
  • 9-16 VDC wide voltage adaptation with polarity reverse connection protection
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PDPG12P-EG2
DS-PDPG12P-EG2
Data Sheet

Specification

  • Detection Performance
  • Detection MethodPassive Infrared;Acoustic Sensor
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • Pet Immunity30Kg
  • PIR SensitivityAuto,Pet
  • White Light Filter6500lux
  • Glass Break Range8m
  • Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Break SensitivityPotentiometer Adjustment
  • Glass Thickness2.4mm to 6.4mm
  • Digital Temperature CompensationSupport
  • Glass Size0.3m x 0.3m to 3m x 3m
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront
  • Interface
  • Alarm OutputNormally Closed
  • LED IndicatorGreen(PIR),Red(BG),Blue(alarm)
  • Transmission
  • Transmission MethodWired
  • Electrical Characteristics
  • Alimentation9 to 16 VDC
  • Typical Voltage12 VDC
  • Power ConsumptionMaximum current：26mA @12VDC Quiescent current：36mA@12VDC
  • General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.5mm×103mm×48.5mm
  • Weight98.5g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Scénario d'utilisationIndoor
  • BracketOptional Wall & Ceiling Accessory
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Passive Infrared;Acoustic Sensor
Detection Range
12m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3～2m/s
Pet Immunity
30Kg
PIR Sensitivity
Auto,Pet
White Light Filter
6500lux
Glass Break Range
8m
Glass Type
Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Break Sensitivity
Potentiometer Adjustment
Glass Thickness
2.4mm to 6.4mm
Digital Temperature Compensation
Support
Glass Size
0.3m x 0.3m to 3m x 3m
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front
Interface
Alarm Output
Normally Closed
LED Indicator
Green(PIR),Red(BG),Blue(alarm)
Transmission
Transmission Method
Wired
Electrical Characteristics
Alimentation
9 to 16 VDC
Typical Voltage
12 VDC
Power Consumption
Maximum current：26mA @12VDC Quiescent current：36mA@12VDC
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.5mm×103mm×48.5mm
Weight
98.5g
Mounting Height
1.8 to 2.4m
Mounting Method
Wall
Scénario d'utilisation
Indoor
Bracket
Optional Wall & Ceiling Accessory
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Detection Performance
  • Detection MethodPassive Infrared;Acoustic Sensor
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • Pet Immunity30Kg
  • PIR SensitivityAuto,Pet
  • White Light Filter6500lux
  • Glass Break Range8m
  • Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Break SensitivityPotentiometer Adjustment
  • Glass Thickness2.4mm to 6.4mm
  • Digital Temperature CompensationSupport
  • Glass Size0.3m x 0.3m to 3m x 3m
  • Creep Zone ProtectionSupport
Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront
Interface
  • Alarm OutputNormally Closed
  • LED IndicatorGreen(PIR),Red(BG),Blue(alarm)
Transmission
  • Transmission MethodWired
Electrical Characteristics
  • Alimentation9 to 16 VDC
  • Typical Voltage12 VDC
  • Power ConsumptionMaximum current：26mA @12VDC Quiescent current：36mA@12VDC
General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.5mm×103mm×48.5mm
  • Weight98.5g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Scénario d'utilisationIndoor
  • BracketOptional Wall & Ceiling Accessory
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
