Oversea UPS

Built-in AVR
Super fast charging
Wide input voltage range
Overload protection
Short circuit protection
Surge protection

View Less

Ficha Técnica

Modelos disponibles:

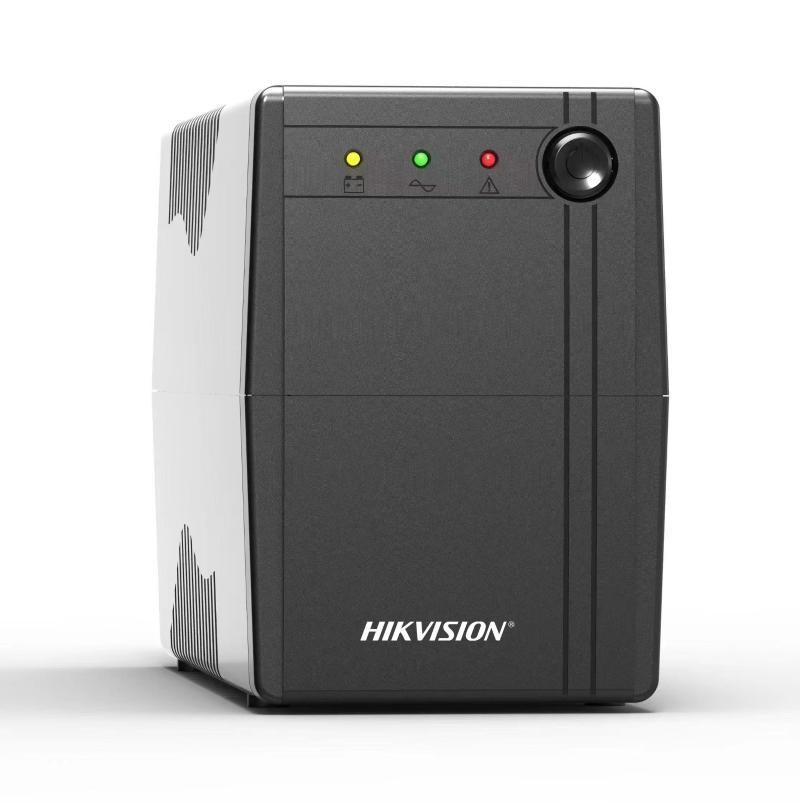

DS-UPS600-x

DS-UPS600

Especificación
Resources
Accesorios

Ficha Técnica

alimentación
UPS Capacity 600 VA / 360 W

Entrada
Input Voltage Range 85 VAC to 150 VAC
Input Frequency 50/60 Hz self-adaptive
Plug Type Type B (NEMA 5-15)

Salida
Rango de voltaje de salida 110 VAC to 125 VAC
Output Frequency 50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time ≤ 10 ms
Waveform PWM
Outlet Type Type B (NEMA 5-15)
Outlet Number Battery outlet*4 & Bypass*2

batería
Tipo de batería 12 V/7 Ah, lead-acid battery
Recharge Time 4-6 hours recover to 90% capacity
Typical Backup Time Run time at 60w: 35 min Run time at 100w: 20 min Run time at 200w: 3 min

Interfaz
Communicate Ports No

Protección
Full Protection Surge protection,Overload protection,Discharge protection,Overcharge protection

indicador
pantalla LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow
Alarma Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General
Temperatura de funcionamiento 0 °C to 40 °C (32 °F to 104 °F）
Condiciones de humedad 30% to 90% (non-condensing)
Dimensión 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
Approx. 4.2 kg (9.26 lb)

alimentación

UPS Capacity

600 VA / 360 W

Entrada

Input Voltage Range

140 VAC to 290 VAC

Input Frequency

50/60 Hz self-adaptive

Plug Type

AU TYPE I;TYPE H;Type B (NEMA 5-15);TYPE L (10A);UK TYPE G;Schuko

Salida

Rango de voltaje de salida

210 VAC to 235 VAC

Output Frequency

50/60 Hz ± 0.5 Hz self-adaptive

Transfer Time

≤ 10 ms

Waveform

PWM

Outlet Type

AU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)

Outlet Number

2;Battery outlet*4 & Bypass*2

batería

Tipo de batería

12 V/7 Ah, lead-acid battery

Recharge Time

4-6 hours recover to 90% capacity

Typical Backup Time

Run time at 60w: 35 min Run time at 100w: 20 min Run time at 200w: 3 min

Interfaz

Communicate Ports

Protección

Full Protection

Surge protection,Overload protection,Discharge protection,Overcharge protection

indicador

pantalla

LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow

Alarma

Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General

Temperatura de funcionamiento

0 °C to 40 °C (32 °F to 104 °F）

Condiciones de humedad

30% to 90% (non-condensing)

Dimensión

274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")

Approx. 4.2 kg (9.26 lb)
