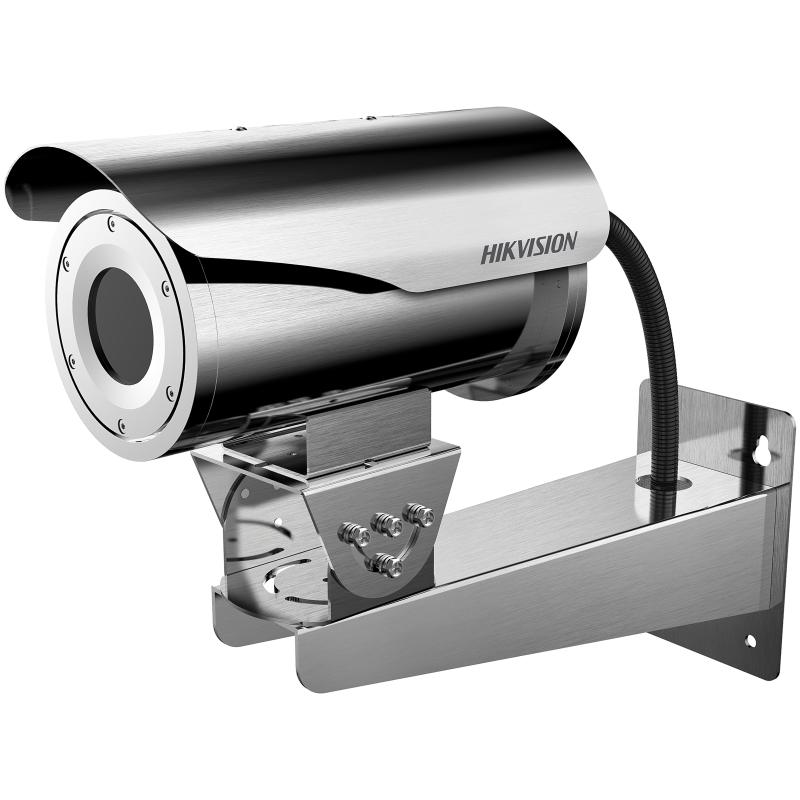

Anti-corrosion Thermal Network Bullet Camera

High sensitivity sensor with 640 x 512 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
316L Stainless Steel enclosure, protecting camera in corrosive environments and extending reliability and longevity far beyond standard cameras

View Less

Data Sheet

Available models:

DS-2TD2466-25Y

EOL

Specification
Resources
Accessories

Data Sheet

Thermal Module
Image sensorVanadium Oxide Uncooled Focal Plane Arrays
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDless than 40 mk (0.04°C), F#=1.0
MRAD0.68 mrad
Field of View24.55° × 19.75° (H × V)
Min. Focusing Distance2 m
ApertureF 1.0

Smart Function
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy±8 °C (14.4 °F)
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

Network
Main Stream50fps (640×512, 384×288, 352×288)
Sub stream50fps (640×512, 384×288, 352×288)
Third stream50fps (640×512, 384×288, 352×288)
Video compressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live viewUp to 20
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm Input2-ch inputs (0-5V DC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ClientiVMS-4200
Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General
Menu LanguageEnglish
Power24 VAC± 25%, 12 VDC ± 20%, two-core power supply, PoE (802.3at, class 4)
Power Consumption24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 10W (22W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Work Temperature/Humidity-40 °C to 60 °C (-40 °F to 140 °F), 90% or less
Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions310 mm × 25 mm × 263 mm (12.20″ × 0.98″ × 10.35″)
WeightApprox. 16.86 kg (37.17 lb)
