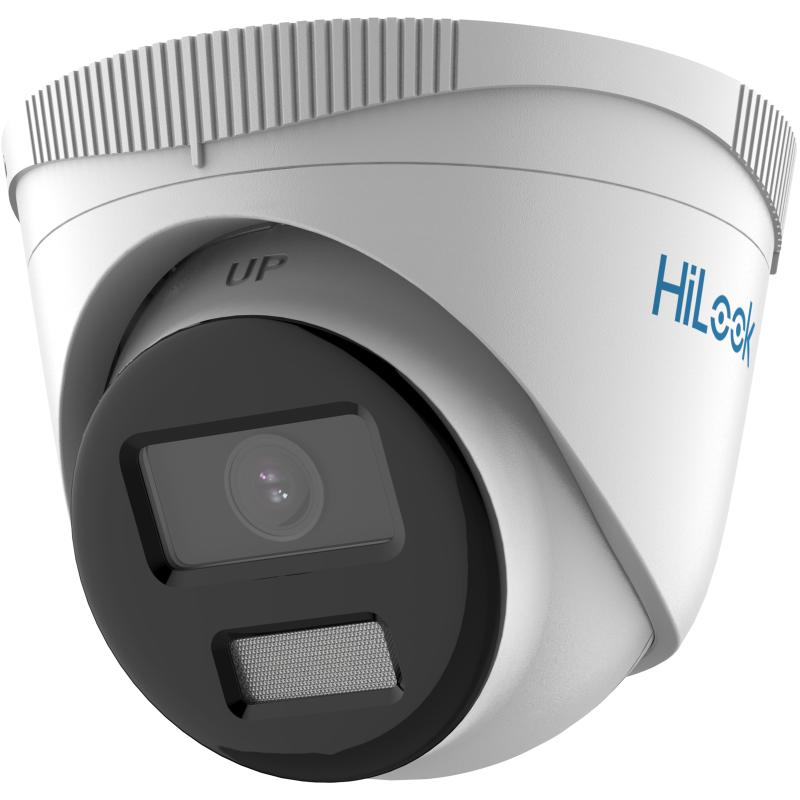

5 MP ColorVu Fixed Turret Network Camera

High quality imaging with 5 MP resolution
24/7 colorful imaging
Excellent low-light performance
Water and dust resistant (IP67)
Efficient H.265+ compression technology

View Less

Data Sheet

Available models:

IPC-T259H(2.8mm)(C)(HiLookSTD)

IPC-T259H(4mm)(C)(HiLookSTD)

IPC-T259H

Specification
Resources
Accessories

Data Sheet

กล้อง
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution2560 × 1920
Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & Night24/7 color imaging
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 95°, vertical FOV 70°, diagonal FOV 125° 4 mm, horizontal FOV 76°, vertical FOV 57°, diagonal FOV 98°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞

DORI
DORI2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Video
Main Stream50 Hz: 20 fps (2560 x 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 x 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region(s) for main stream

Network
ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S),ISAPI,SDK
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
ClientiVMS-4200,HiLookVision
Web BrowserPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection,video tampering alarm,exception
LinkageUpload to FTP,notify surveillance center,trigger capture,send email

General
Power12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
Dimension Ø112 mm × 88.4 mm (Ø4.4" × 3.5")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 370 g (0.8 lb.)
With Package WeightApprox. 600 g (1.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukranian
General FunctionHeartbeat,anti-flicker,mirror,password protection,password reset via email

Approval
EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013

กล้อง

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

2560 × 1920

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 95°, vertical FOV 70°, diagonal FOV 125° 4 mm, horizontal FOV 76°, vertical FOV 57°, diagonal FOV 98°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞

DORI

2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 20 fps (2560 x 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 x 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region(s) for main stream

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S),ISAPI,SDK

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)

Client

iVMS-4200,HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection,video tampering alarm,exception

Linkage

Upload to FTP,notify surveillance center,trigger capture,send email

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimension

Ø112 mm × 88.4 mm (Ø4.4" × 3.5")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 370 g (0.8 lb.)

With Package Weight

Approx. 600 g (1.3 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukranian

General Function

Heartbeat,anti-flicker,mirror,password protection,password reset via email

Approval

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
