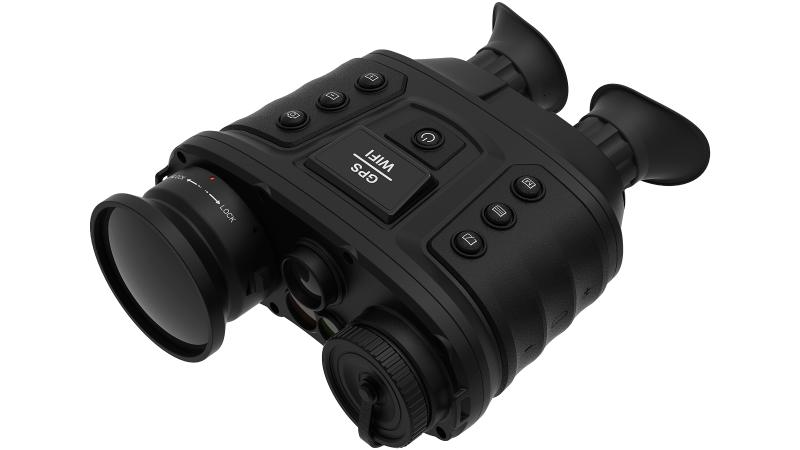

DS-2TS36-75VI/WL

EOL

Handheld Thermal Multi-function Binocular Camera

  • High sensitivity thermal module with 384 × 288 resolution
  • NETD < 40 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • High quality optical module with 1280 × 960 resolution
  • Video recording, replay, snapshot, and search (users can review event on device)
  • Wi-Fi hot spot
  • Bulit-in Laser-distance detection module, compass, and GPS module, Supports self-positioning and target positioning
  • Digital Magnetic Compass and Inclination Sensor
View Less
View more

Available models:

DS-2TS36-75VI/WL

Especificação

  • Thermal Module
  • NETD< 40mk (@25°C,F#=1.0)
  • Field of View8.3° × 6.64° (H × V)
  • AberturaF 1.2
  • Densidade de pixels17μm
  • Response waveband8μm to 14μm
  • MRAD (IFOV)0.23
  • Zoom digital
  • Resolução máx.640 × 512
  • Lens (focal length)75mm Electric focus
  • Image Display
  • Thermal/Optical ModeThermal view, B/W optical view, image fusion view are selectable
  • Fusão de imagensColor fusion, B/W fusion
  • Monitor0.39-inch, OLED, 1024 ×768
  • PaletasBlack hot, white hot
  • Optical Module
  • Resolução máx.1920 × 1080 @25fps
  • Sensor de imagem1/1.8" Progressive Scan CMOS
  • Iluminação mínimaB/W : 0.001 lux @ (F1.0 , AGC On)
  • Lens (focal length)22 mm
  • Aprimoramento da imagem3D DNR, Adaptive AGC
  • Smart
  • Laser-Distance DetectionUp to 3 km
  • Destaque do objetoYes
  • Luz de fundo automáticaThe OLED backlight automatically turns off if no human eyes are detected.
  • Sistema
  • Distância de mediçãoMax. 3km
  • Precisão0.75m
  • Comprimento de onda nominal1550 nm (class1)
  • Precisão da cabeça0.2 °(RMS)
  • Gravar vídeoOn-board video recording
  • SnapshotOn-board image capturing
  • Relé de vídeoYes
  • Pesquisa de imagemYes
  • Wi-FiYes
  • GPSYes
  • ArmazenamentoBuilt-in memory module (32GB)
  • Fonte de alimentação
  • Tipo de bateriaFour 18650 batteries, requires 5 hours to be fully charged
  • Tempo do funcionamento da bateria≥7h
  • Exibição de capacidade da bateriaYes
  • Geral
  • AlimentaçãoDC 5V/2A, Max.10W
  • PesoApprox. 1.5 Kg (3.3 lb)
  • Nível de proteçãoIP67
  • Dimensões (P x L x A)188mm × 242.9mm × 87.4mm (7.4" ×9.6" ×3.4")
  • Cable OutputAviation plug: connecting to BNC, DB9, and USB
  • Accessories (Supplied)Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries
  • MontagemUNC 1/4”-20
  • Temperatura de funcionamento-30 °C to 60 °C (-22 °F to 140 °F)
