*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

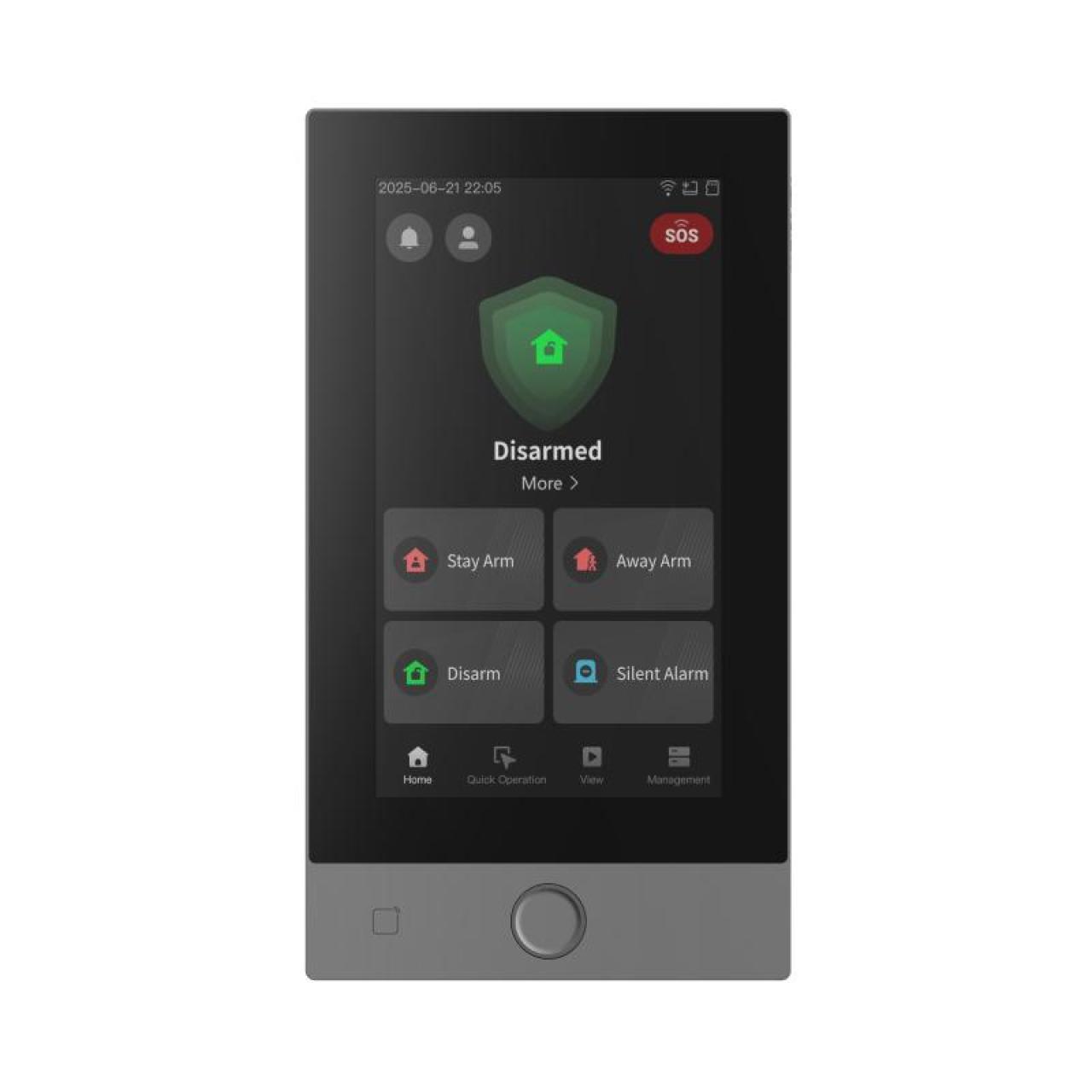

Touchscreen Keypad

  • 7-inch LCD touch screen with intuitive interface for clear display and easy system control.
  • Supports LAN, Wi-Fi, and bus connectivity for flexible installation.
  • Supports live camera preview via Wi-Fi or LAN.
  • Supports event review with verification video storage with TF card.
  • Shortcut keys for quick operation and flexible relay or area control.
  • Supports 2 wired zones and 1 relay output for flexible integration with external devices.
  • Built-in tag reader for convenient and secure user authentication.
  • Supports keyfob control (868MHz)
View Less
View more
Sales Inquiry

Available models:

DS-PK670MDW-HWE/White
DS-PK670MDW-HWE/Black
View more View Less
DS-PK670MDW-HWE NEW

Specification

  • Inputs(Zones)
  • Max. Zones2
  • On-board zones2
  • Outputs
  • Max. outputs1
  • Peripherals
  • Wireless keyfob64
  • Event logs
  • Event log records200
  • User interface
  • Display7" Colorful LCD with resolution 600*1024
  • Indication1 indicator(Yellow\Green\Red)
  • Key button1
  • Authentication
  • TagSupported M1/DESFire® Card
  • Keyfob64
  • PIN4~6 digits
  • Bus interconnection
  • Bus-extenderx
  • Bus technologyHalf-Duplex RS-485
  • Bus wiring4-Core Alarm Cable (at least 2x0.5mm2+2x0.22mm2)
  • Wireless interconnection
  • Frequency868Mhz
  • Wireless technologyR3
  • Transmission modulationGFSK
  • Transmission range 800m(open area)
  • Communication interfaces
  • LAN/EthernetSupported,10/100 Mbps self-adaptive
  • Wi-FiSupported,802.11b/g/n (2.4GHz)
  • Power supply - general
  • Quiescent current270mA@12VDC
  • Input voltage12 VDC nominal (9~24 VDC),powered by bus
  • Max. current400mA@12VDC
  • Relay output
  • Relay output1,1A 30VDC
  • Environmental
  • Operating temperature-10°C to 50°C
  • Storage temperature -10°C to 50°C
  • Relative humidity10%-90% non-condensing
  • Physical
  • Dimension (W × H × D) 122mmx218.7mmx27mm
  • 400g
  • Installation methodWall mounting
  • Tamper-proofFront and Rear
  • Compliance
  • Electrical conformityCE,CB
  • EN 50131Security Grade 2,Encironmental Class II
  • Indication
  • LED indicationSupported
  • Hardware features
  • SD cardFAT32 up to 128G
  • LoudspeakerSupported
  • MicReserved
  • Debug port2
  • General
  • Application scenarioIndoor
  • Shell materialPlastic
  • ColorWhite or Black
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Inputs(Zones)
Max. Zones
2
On-board zones
2
Outputs
Max. outputs
1
Peripherals
Wireless keyfob
64
Event logs
Event log records
200
User interface
Display
7" Colorful LCD with resolution 600*1024
Indication
1 indicator(Yellow\Green\Red)
Key button
1
Authentication
Tag
Supported M1/DESFire® Card
Keyfob
64
PIN
4~6 digits
Bus interconnection
Bus-extender
x
Bus technology
Half-Duplex RS-485
Bus wiring
4-Core Alarm Cable (at least 2x0.5mm2+2x0.22mm2)
Wireless interconnection
Frequency
868Mhz
Wireless technology
R3
Transmission modulation
GFSK
Transmission range
800m(open area)
Communication interfaces
LAN/Ethernet
Supported,10/100 Mbps self-adaptive
Wi-Fi
Supported,802.11b/g/n (2.4GHz)
Power supply - general
Quiescent current
270mA@12VDC
Input voltage
12 VDC nominal (9~24 VDC),powered by bus
Max. current
400mA@12VDC
Relay output
Relay output
1,1A 30VDC
Environmental
Operating temperature
-10°C to 50°C
Storage temperature
-10°C to 50°C
Relative humidity
10%-90% non-condensing
Physical
Dimension (W × H × D)
122mmx218.7mmx27mm
400g
Installation method
Wall mounting
Tamper-proof
Front and Rear
Compliance
Electrical conformity
CE,CB
EN 50131
Security Grade 2,Encironmental Class II
Indication
LED indication
Supported
Hardware features
SD card
FAT32 up to 128G
Loudspeaker
Supported
Mic
Reserved
Debug port
2
General
Application scenario
Indoor
Shell material
Plastic
Color
White or Black
