*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

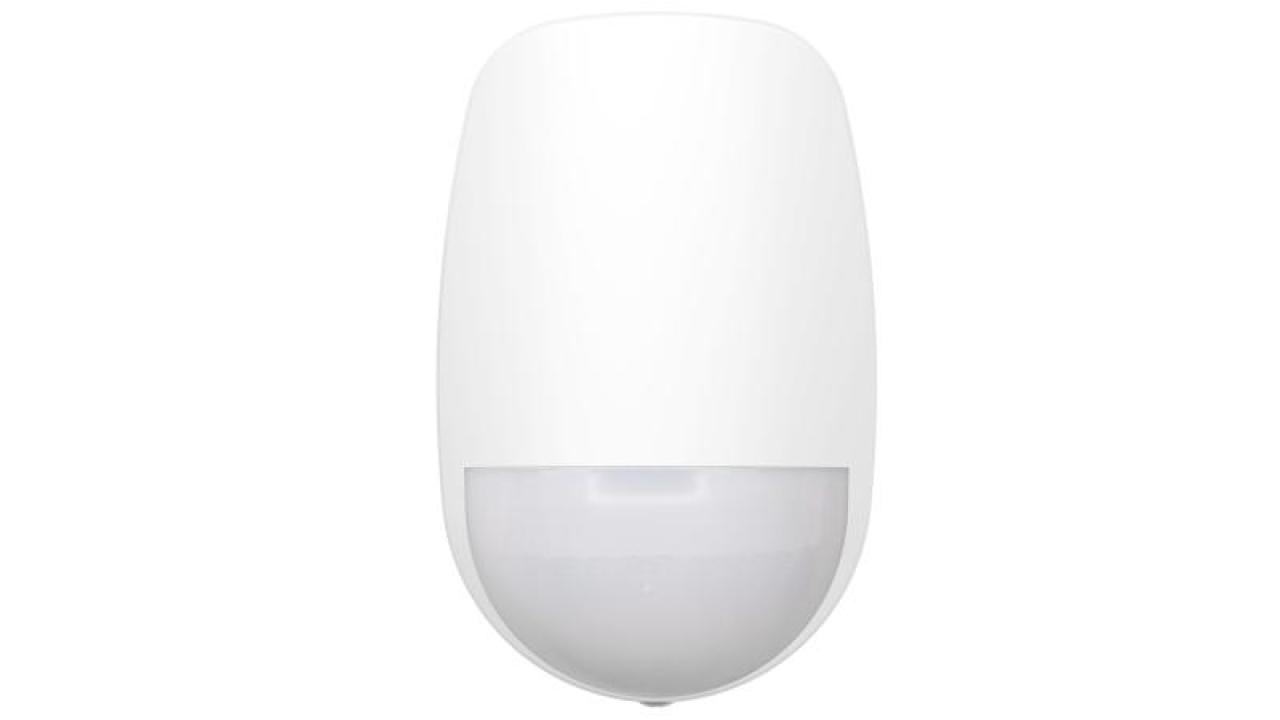

Bus Indoor Dual-Tech Detector

  • Accurate motion detection with 15m / 90° coverage and up to 30 kg pet immunity in low sensitivity
  • 3D optics including creep-zone protection
  • 24G microwave technology providing robust anti-interference performance and high-resolution capabilities
  • Digital temperature compensation
  • Remote configuration and control via mobile App
  • Multiple enrollment method and easy installation design
View Less
View more
DS-PD512DT15
DS-PD512DT15AM
Data Sheet
Sales Inquiry

Available models:

DS-PD512DT15
View more View Less

Available models:

DS-PD512DT15AM
View more View Less
DS-PD512DT15
Data Sheet

Specification

  • PIR detection
  • Detection method Passive Infrared, Microwave
  • Detection range 15 m
  • Detection angle 90°
  • Detection zones 84
  • Detection planes 7
  • Detectable speed 0.3 m/s ~ 2 m/s
  • Sensitivity Low, Normal, High
  • Microwave frequency 24GHz(24.15～24.25GHz)
  • Pet immunity 30 kg
  • White light filter 6500 lux
  • Sealed optics √
  • Digital processing √
  • Temperature compensation √
  • Bus interconnection
  • Bus-extender ×
  • Bus technology Half-Duplex RS-485
  • Bus wiring 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
  • Power supply - general
  • Input voltage 12 VDC nominal (9~24 VDC), powered by bus
  • Quiescent current 9 mA @12VDC
  • Max. current 13 mA @12VDC
  • Environmental
  • Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
  • Storage temperature -20°C to 60°C (-4°F to 140°F)
  • Relative humidity 10% ~ 90% non-condensing
  • Physical
  • Dimension (W × H × D) 65.7 mm × 103.8 mm × 45.5 mm
  • 100 g
  • Tamper-proof Front
  • Installation method Wall mount & Celling mount (with bracket)
  • Bracket DS-PDB-IN-Ceilingbracket (Optional) DS-PDB-IN-Wallbracket (Optional) DS-PDB-IN-UBKT2(Optional)
  • Mounting height 1.8 m ~ 2.4 m, 2.1 m typical
  • Compliance
  • Electrical conformity CE, CB
  • EN 50131 Security Grade 2, Environmental Class II
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

PIR detection
Detection method
Passive Infrared, Microwave
Detection range
15 m
Detection angle
90°
Detection zones
84
Detection planes
7
Detectable speed
0.3 m/s ~ 2 m/s
Sensitivity
Low, Normal, High
Microwave frequency
24GHz(24.15～24.25GHz)
Pet immunity
30 kg
White light filter
6500 lux
Sealed optics
√
Digital processing
√
Temperature compensation
√
Bus interconnection
Bus-extender
×
Bus technology
Half-Duplex RS-485
Bus wiring
4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
Power supply - general
Input voltage
12 VDC nominal (9~24 VDC), powered by bus
Quiescent current
9 mA @12VDC
Max. current
13 mA @12VDC
Environmental
Operating temperature
-10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature
-20°C to 60°C (-4°F to 140°F)
Relative humidity
10% ~ 90% non-condensing
Physical
Dimension (W × H × D)
65.7 mm × 103.8 mm × 45.5 mm
100 g
Tamper-proof
Front
Installation method
Wall mount & Celling mount (with bracket)
Bracket
DS-PDB-IN-Ceilingbracket (Optional) DS-PDB-IN-Wallbracket (Optional) DS-PDB-IN-UBKT2(Optional)
Mounting height
1.8 m ~ 2.4 m, 2.1 m typical
Compliance
Electrical conformity
CE, CB
EN 50131
Security Grade 2, Environmental Class II
For better user experience, we highly recommend you to update your device to the latest firmware asap.
