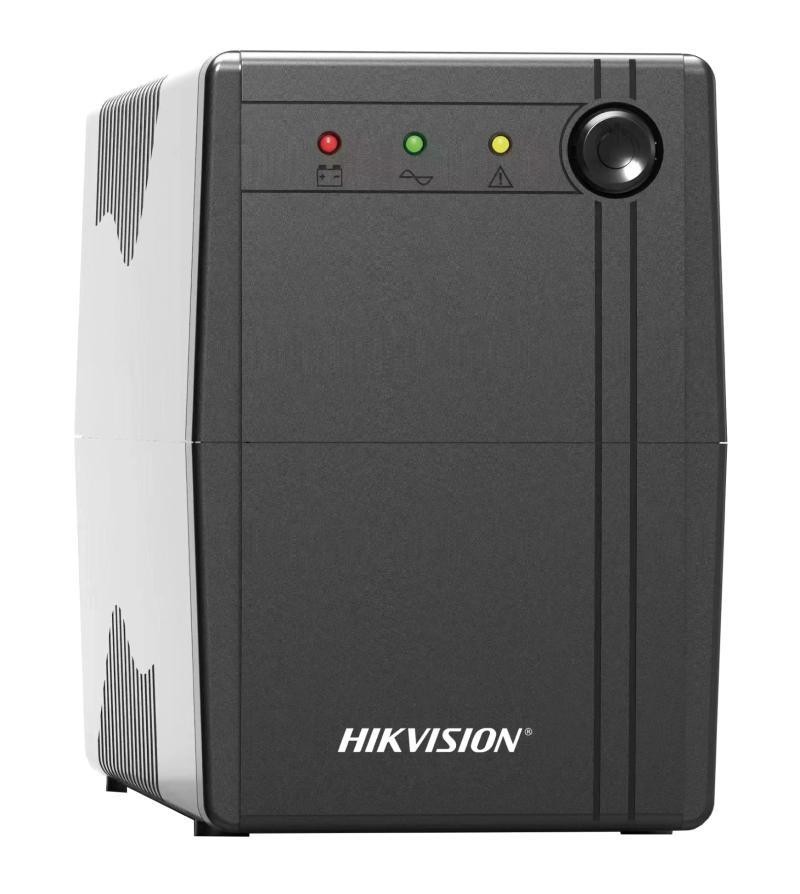

Oversea UPS

Built-in AVR
Super fast charging
Wide input voltage range
Overload protection
Short circuit protection
Surge protection

View Less

Available models:

DS-UPS600

DS-UPS600#MENA

Specification
Resources
Accessories

Power
UPS Capacity 600 VA / 360 W

Input
Input Voltage Range 140 VAC to 290 VAC
Input Frequency50/60 Hz self-adaptive
Plug TypeSchuko

Output
Output Voltage Range210 VAC to 235 VAC
Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time≤ 10 ms
WaveformPWM
Outlet TypeSchuko
Outlet Number2

Battery
Battery Type12 V/7 Ah, lead-acid battery
Recharge Time4-6 hours recover to 90% capacity
Typical Backup TimeRun time at 60w: 35 min Run time at 100w: 20 min Run time at 200w: 3 min

Interface
Communicate PortsNo

Protection
Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

Indicator
DisplayLED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow
AlarmCharging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General
Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity30% to 90% (non-condensing)
Dimension274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
WeightApprox. 4.2 kg (9.26 lb)

Power

UPS Capacity

600 VA / 360 W

Input

Input Voltage Range

140 VAC to 290 VAC

Input Frequency

50/60 Hz self-adaptive

Plug Type

Schuko

Output

Output Voltage Range

210 VAC to 235 VAC

Output Frequency

50/60 Hz ± 0.5 Hz self-adaptive

Transfer Time

≤ 10 ms

Waveform

PWM

Outlet Type

Schuko

Outlet Number

Battery

Battery Type

12 V/7 Ah, lead-acid battery

Recharge Time

4-6 hours recover to 90% capacity

Typical Backup Time

Run time at 60w: 35 min Run time at 100w: 20 min Run time at 200w: 3 min

Interface

Communicate Ports

Protection

Full Protection

Surge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

Display

LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow

Alarm

Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F）

Operating Humidity

30% to 90% (non-condensing)

Dimension

274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")

Weight

Approx. 4.2 kg (9.26 lb)
