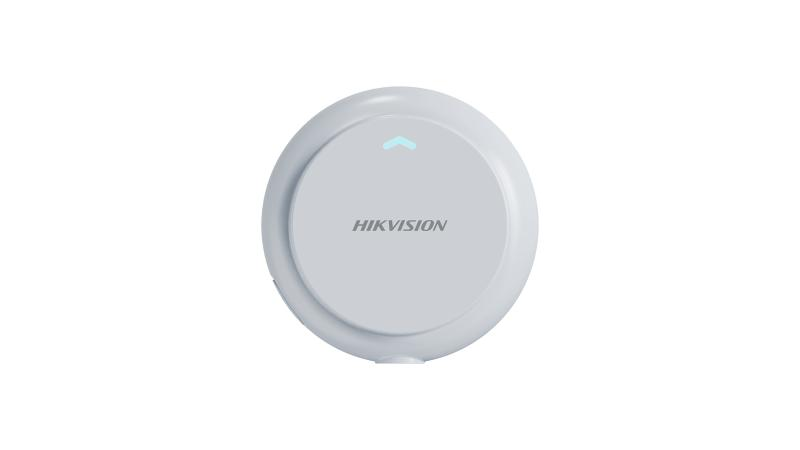

Fall Detection Radar

No privacy disclosure.
Non-contact posture detection.
High detection accuracy and low false alarm rate.
Detects person and non-person in the area.
Supports locating target and transmit location.
Supports 4m * 5m detection range
Supports transmitting data to platform by OTAP protocol.
Supports connecting to Wi-Fi.

View Less

Data Sheet

Available models:

DS-TDSB00-EKT/POE/4M

Specification
Resources
Accessories

Data Sheet

Radar
Working Frequency60 to 63 GHz
Modulation WaveformFMCW
Horizontal Detection Angle± 45°
Vertical Detection Angle± 45°
Max. Detectable TargetsUp to 1 target(s)
Detection Target TypeHuman
Detection Distance5 m × 4 m

Network
ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP
APIISAPI,SDK,OTAP
User/HostUp to 16 users,3 user levels: administrator, operator, and user
SecurityPassword protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address)
Web BrowserIE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge
Client Hik-Central Pro, Hik-Connect, Hik-Parter Pro

Interface
Network InterfaceWi-Fi,1 RJ45 10/100Mbps self-adaptive Ethernet port(s)
IndicatorSupported

Function
General FunctionSupports human body detection, fall detection, and target tracing.

General
Power DC 5 V, 2 A, max. 10 W, Type-C, PoE: 802.3af, Type 1, Class 3, max. 10 W
MaterialPC
DimensionsØ90 mm × 81 mm (Ø3.54" × 3.19")
Package Dimensions419 mm × 319 mm × 307 mm (16.5" × 12.56" × 12.09") (L × W × H)
Weight Approx. 130 g (0.29 lb.)
With Package WeightApprox. 520 g (1.15 lb.)
Operating Condition-10 °C to 50 °C (-14 °F to 122 °F). Humidity: 0% to 90% (non-condensing)
Storage Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)
Installation Height 2m

Approval
EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
RF CE-RED: EN 305550-2 V1.2.1, EN 300328 V2.2.2, EN 301489-1 V2.2.3, EN 301489-52 V1.2.1, EN 301489-17 V3.2.4, EN IEC 62311:2020
Safety CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016, CE-LVD: EN 61010-1: 2010+A1: 2019
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP54: IEC 60529: 1989+A1: 1999+A2: 2013

Radar

Working Frequency

60 to 63 GHz

Modulation Waveform

FMCW

Horizontal Detection Angle

± 45°

Vertical Detection Angle

± 45°

Max. Detectable Targets

Up to 1 target(s)

Detection Target Type

Human

Detection Distance

5 m × 4 m

Network

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP

API

ISAPI,SDK,OTAP

User/Host

Up to 16 users,3 user levels: administrator, operator, and user

Security

Password protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address)

Web Browser

IE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge

Client

Hik-Central Pro, Hik-Connect, Hik-Parter Pro

Interface

Network Interface

Wi-Fi,1 RJ45 10/100Mbps self-adaptive Ethernet port(s)

Indicator

Supported

Function

General Function

Supports human body detection, fall detection, and target tracing.

General

Power

DC 5 V, 2 A, max. 10 W, Type-C, PoE: 802.3af, Type 1, Class 3, max. 10 W

Material

Dimensions

Ø90 mm × 81 mm (Ø3.54" × 3.19")

Package Dimensions

419 mm × 319 mm × 307 mm (16.5" × 12.56" × 12.09") (L × W × H)

Weight

Approx. 130 g (0.29 lb.)

With Package Weight

Approx. 520 g (1.15 lb.)

Operating Condition

-10 °C to 50 °C (-14 °F to 122 °F). Humidity: 0% to 90% (non-condensing)

Storage Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)

Installation Height

Approval

EMC

CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014

CE-RED: EN 305550-2 V1.2.1, EN 300328 V2.2.2, EN 301489-1 V2.2.3, EN 301489-52 V1.2.1, EN 301489-17 V3.2.4, EN IEC 62311:2020

Safety

CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016, CE-LVD: EN 61010-1: 2010+A1: 2019

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP54: IEC 60529: 1989+A1: 1999+A2: 2013
