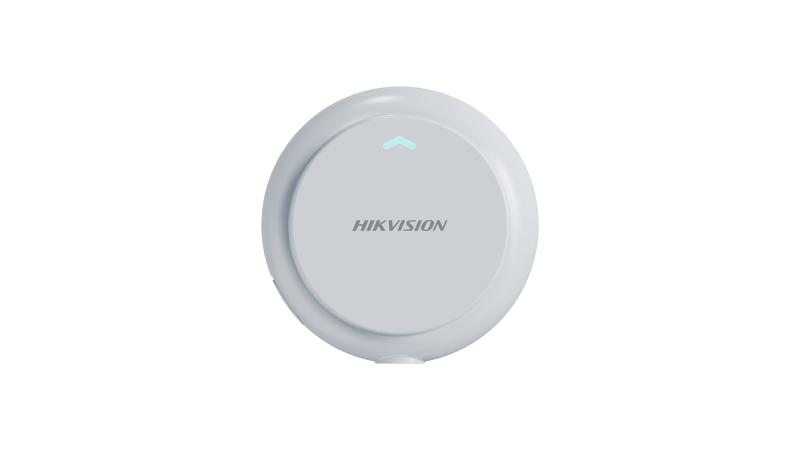

Auxiliary Care Radar

  • No privacy disclosure.
  • Remote and non-contact detection.
  • Outputs the real-time breath rate and heart rate of the human body.
  • Detects and outputs the information that if the human body is in the bed to the connected client software. Counts the time in the bed and the time out of the bed.
  • Detects and outputs the human body movements to the connected client software, and counts the times of movements.
  • Supports transmitting data to platform by OTAP protocol.
  • Supports connecting to Wi-Fi.
  • Supports side mounting and cell mounting.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-TDSB00-EKH/POE/2m
DS-TDSB00-EKH/POE/2M
Data Sheet

Specification

  • Radar
  • Working Frequency60 to 63 GHz
  • Modulation WaveformFMCW
  • Horizontal Detection Angle± 25°
  • Vertical Detection Angle± 10°
  • Max. Detectable TargetsUp to 1 target(s)
  • Detection Target TypeHuman
  • Detection Distance2.7 m
  • Network
  • ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP
  • APIISAPI,SDK,OTAP
  • User/HostUp to 16 users,3 user levels: administrator, operator, and user
  • SecurityPassword protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address)
  • Web BrowserIE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge
  • Client Hik-Central Pro, Hik-Connect, Hik-Parter Pro
  • Interface
  • Network InterfaceWi-Fi,1 RJ45 10/100Mbps self-adaptive Ethernet port(s)
  • IndicatorSupported
  • Function
  • General FunctionSupports human body detection, body motion detection, and respiration and heart rate monitoring.
  • General
  • Power DC 5 V, 2 A, max. 10 W, Type-C, PoE: 802.3af, Type 1, Class 3, max. 10 W
  • MaterialPC
  • DimensionsØ90 mm × 81 mm (Ø3.54" × 3.19")
  • Package Dimensions419 mm × 319 mm × 307 mm (16.5" × 12.56" × 12.09") (L × W × H)
  • Weight Approx. 130 g (0.29 lb.)
  • With Package WeightApprox. 520 g (1.15 lb.)
  • Operating Condition-10 °C to 50 °C (-14 °F to 122 °F). Humidity: 0% to 90% (non-condensing)
  • Storage Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)
  • Installation Height Ceiling mount: height from the bed ≤ 2.7 m, Side mount (recommended mount): height from the bed = 1 m
  • Approval
  • EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • RF CE-RED: EN 305550-2 V1.2.1, EN 300328 V2.2.2, EN 301489-1 V2.2.3, EN 301489-52 V1.2.1, EN 301489-17 V3.2.4, EN IEC 62311:2020
  • Safety CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016, CE-LVD: EN 61010-1: 2010+A1: 2019
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP54: IEC 60529: 1989+A1: 1999+A2: 2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Radar
Working Frequency
60 to 63 GHz
Modulation Waveform
FMCW
Horizontal Detection Angle
± 25°
Vertical Detection Angle
± 10°
Max. Detectable Targets
Up to 1 target(s)
Detection Target Type
Human
Detection Distance
2.7 m
Network
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP
API
ISAPI,SDK,OTAP
User/Host
Up to 16 users,3 user levels: administrator, operator, and user
Security
Password protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address)
Web Browser
IE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge
Client
Hik-Central Pro, Hik-Connect, Hik-Parter Pro
Interface
Network Interface
Wi-Fi,1 RJ45 10/100Mbps self-adaptive Ethernet port(s)
Indicator
Supported
Function
General Function
Supports human body detection, body motion detection, and respiration and heart rate monitoring.
General
Power
DC 5 V, 2 A, max. 10 W, Type-C, PoE: 802.3af, Type 1, Class 3, max. 10 W
Material
PC
Dimensions
Ø90 mm × 81 mm (Ø3.54" × 3.19")
Package Dimensions
419 mm × 319 mm × 307 mm (16.5" × 12.56" × 12.09") (L × W × H)
Weight
Approx. 130 g (0.29 lb.)
With Package Weight
Approx. 520 g (1.15 lb.)
Operating Condition
-10 °C to 50 °C (-14 °F to 122 °F). Humidity: 0% to 90% (non-condensing)
Storage Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)
Installation Height
Ceiling mount: height from the bed ≤ 2.7 m, Side mount (recommended mount): height from the bed = 1 m
Approval
EMC
CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
RF
CE-RED: EN 305550-2 V1.2.1, EN 300328 V2.2.2, EN 301489-1 V2.2.3, EN 301489-52 V1.2.1, EN 301489-17 V3.2.4, EN IEC 62311:2020
Safety
CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016, CE-LVD: EN 61010-1: 2010+A1: 2019
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP54: IEC 60529: 1989+A1: 1999+A2: 2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Radar
  • Working Frequency60 to 63 GHz
  • Modulation WaveformFMCW
  • Horizontal Detection Angle± 25°
  • Vertical Detection Angle± 10°
  • Max. Detectable TargetsUp to 1 target(s)
  • Detection Target TypeHuman
  • Detection Distance2.7 m
Network
  • ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP
  • APIISAPI,SDK,OTAP
  • User/HostUp to 16 users,3 user levels: administrator, operator, and user
  • SecurityPassword protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address)
  • Web BrowserIE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge
  • Client Hik-Central Pro, Hik-Connect, Hik-Parter Pro
Interface
  • Network InterfaceWi-Fi,1 RJ45 10/100Mbps self-adaptive Ethernet port(s)
  • IndicatorSupported
Function
  • General FunctionSupports human body detection, body motion detection, and respiration and heart rate monitoring.
General
  • Power DC 5 V, 2 A, max. 10 W, Type-C, PoE: 802.3af, Type 1, Class 3, max. 10 W
  • MaterialPC
  • DimensionsØ90 mm × 81 mm (Ø3.54" × 3.19")
  • Package Dimensions419 mm × 319 mm × 307 mm (16.5" × 12.56" × 12.09") (L × W × H)
  • Weight Approx. 130 g (0.29 lb.)
  • With Package WeightApprox. 520 g (1.15 lb.)
  • Operating Condition-10 °C to 50 °C (-14 °F to 122 °F). Humidity: 0% to 90% (non-condensing)
  • Storage Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)
  • Installation Height Ceiling mount: height from the bed ≤ 2.7 m, Side mount (recommended mount): height from the bed = 1 m
Approval
  • EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • RF CE-RED: EN 305550-2 V1.2.1, EN 300328 V2.2.2, EN 301489-1 V2.2.3, EN 301489-52 V1.2.1, EN 301489-17 V3.2.4, EN IEC 62311:2020
  • Safety CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016, CE-LVD: EN 61010-1: 2010+A1: 2019
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP54: IEC 60529: 1989+A1: 1999+A2: 2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.1.2_240530
Applied to:
DS-TDSB00-EKH/POE/2m
