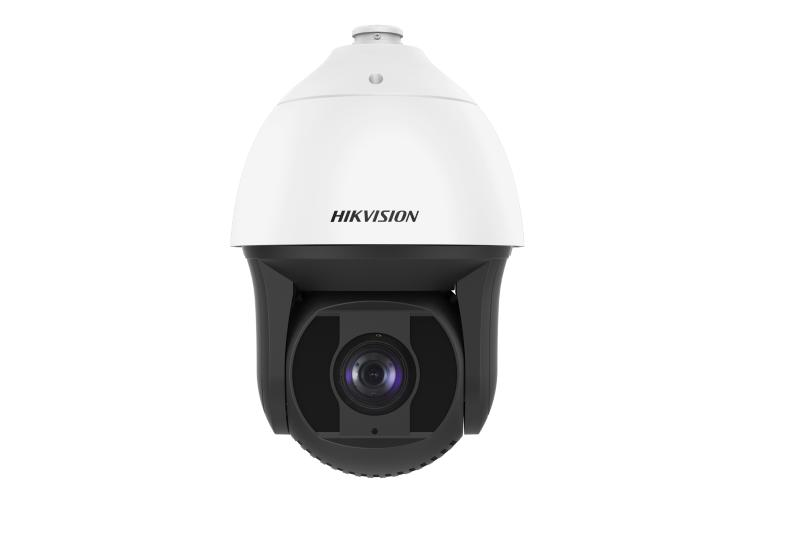

8-inch 2 MP 25X DarkFighter IR Network Speed Dome

  • 1/1.8" Progressive Scan CMOS
  • Up to 1920 × 1080 resolution
  • Min. Illumination: Color: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON),0 Lux with IR
  • 25× optical zoom, 16× digital zoom
  • 140dB WDR, 3D DNR, HLC, Smart IR
  • 24 VAC & Hi-PoE
  • Up to 400 m IR distance
  • Support H.265+/H.265 video compression
  • Support vandal-proof alarm
  • Support face capture to detect, track, capture, grade, and select face in motion
  • Support road traffic to detect vehicles, including license plate number, vehicle model, and vehicle color
  • Support rapid focus
  • IK10, IP67
View Less
View more

Available models:

DS-2DF8225IX-AEL(T3)
DS-2DF8225IX-AEL(T3)
EOL

Specification

  • Camera
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON) B/W: 0.0002 Lux @ ((F1.5, AGC ON),0Lux with IR
  • Shutter Speed1/1s ~ 1/30,000s
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • EISyes
  • Regional Exposureyes
  • Regional Focusyes
  • Digital Zoom16x
  • Optical Zoom25x
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • DORIDetect(25px/m):2034.5m Observe(63px/m):807.3m Recognize(125px/m):406.9m Identify(250px/m):203.4m
  • General Functionmirror, password protection, watermark, IP address filter
  • Lens
  • Focal Length5.9mm to 147.5mm, 25× Optical
  • Zoom Speedapprox. 4.8 s (optical, wide-tele)
  • FOVHorizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)
  • ApertureAperture:F1.5-F3.4
  • Illuminator
  • IR Distance400 m
  • Smart IRyes
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt) -20° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memoryyes
  • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.265;H.264;MJPEG
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIdynamic face tracking;dynamic license plate tracking;fixed region
  • Audio
  • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • Smart Features
  • Basic Eventalarm input and output;motion detection;video tampering alarm
  • Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;face capture;object removal detection;unattended baggage detection;vandal-proof alarm
  • Smart Trackingmanual tracking;auto-tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T);Hikvision SDK; ISAPI
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
  • Interface
  • Communication Interface1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
  • On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm outputs
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • General
  • Power24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
  • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F),Humidity: ≤ 95%
  • DimensionsΦ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
  • WeightApprox. 8 kg (17.64 lb)
  • Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Approval
  • ProtectionIP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

Specification

Specification
Camera
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON) B/W: 0.0002 Lux @ ((F1.5, AGC ON),0Lux with IR
  • Shutter Speed1/1s ~ 1/30,000s
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • EISyes
  • Regional Exposureyes
  • Regional Focusyes
  • Digital Zoom16x
  • Optical Zoom25x
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • DORIDetect(25px/m):2034.5m Observe(63px/m):807.3m Recognize(125px/m):406.9m Identify(250px/m):203.4m
  • General Functionmirror, password protection, watermark, IP address filter
Lens
  • Focal Length5.9mm to 147.5mm, 25× Optical
  • Zoom Speedapprox. 4.8 s (optical, wide-tele)
  • FOVHorizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)
  • ApertureAperture:F1.5-F3.4
Illuminator
  • IR Distance400 m
  • Smart IRyes
PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt) -20° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memoryyes
  • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.265;H.264;MJPEG
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIdynamic face tracking;dynamic license plate tracking;fixed region
Audio
  • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
Smart Features
  • Basic Eventalarm input and output;motion detection;video tampering alarm
  • Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;face capture;object removal detection;unattended baggage detection;vandal-proof alarm
  • Smart Trackingmanual tracking;auto-tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T);Hikvision SDK; ISAPI
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
Interface
  • Communication Interface1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
  • On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm outputs
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
General
  • Power24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
  • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F),Humidity: ≤ 95%
  • DimensionsΦ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
  • WeightApprox. 8 kg (17.64 lb)
  • Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Approval
  • ProtectionIP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5
