EOL

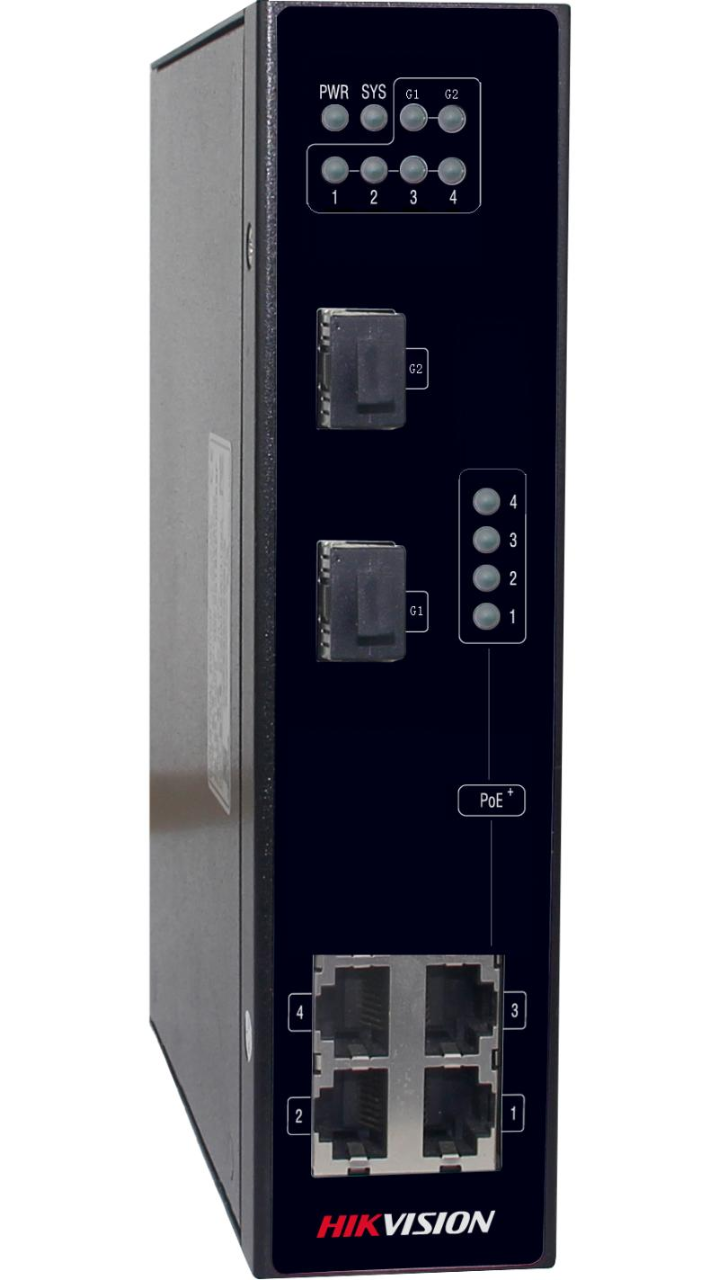

4 Port Fast Ethernet Unmanaged Industrial POE Switch

  • High performance industrial PoE switch
  • DS-3T0306P supports IEEE 802.3AF/AT standard
  • POE port maximum output power 30W (input voltage is greater than 50V)
  • Design of redundant dual power input
  • Working environment temperature of no fan -40℃to +75℃
  • The average failure time reached 400 thousand hours
  • IEEE802.3x full duplex, backpressure flow control
View Less
View more

Available models:

DS-3T0306P

Specification

  • General
  • Dimension (W × H × D)155 × 130 × 42
  • Storage Temperature-40℃-85℃
  • Storage Humidity5%-95% non-condensing
  • Installation ModeDIN rail
  • Operating Temperature-40℃-75℃
  • Operating Humidity5%-95% non-condensing
  • Power SupplyDC:44~57VDC ( Power supply unit is not included )
  • Power Consumption< 9 W
  • Protection GradeIP40
  • Network Parameters
  • Port Number4 × 10/100 Mbps RJ45 ports, and 2 × gigabit fiber optical ports
  • MAC Address Table4 K
  • Switching Capacity8.8 Gbps
  • Packet Forwarding Rate3.6 Mpps
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin1/2 (+), 3/6 (-)
  • Max. Port PowerMax. 30 W for one port
  • Approval
  • EMIFCC 47 CFR Part 15 Class A EN55022 Class A
  • EMSIEC (EN )61000‐4‐2, Class 4 IEC (EN )61000‐4‐4, Class 2 IEC (EN )61000‐4‐5, Class 2 IEC (EN )61000‐4‐11, Class 4 IEC (EN )61000‐4‐12, Class 4

Specification

Specification
General
  • Dimension (W × H × D)155 × 130 × 42
  • Storage Temperature-40℃-85℃
  • Storage Humidity5%-95% non-condensing
  • Installation ModeDIN rail
  • Operating Temperature-40℃-75℃
  • Operating Humidity5%-95% non-condensing
  • Power SupplyDC:44~57VDC ( Power supply unit is not included )
  • Power Consumption< 9 W
  • Protection GradeIP40
Network Parameters
  • Port Number4 × 10/100 Mbps RJ45 ports, and 2 × gigabit fiber optical ports
  • MAC Address Table4 K
  • Switching Capacity8.8 Gbps
  • Packet Forwarding Rate3.6 Mpps
PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin1/2 (+), 3/6 (-)
  • Max. Port PowerMax. 30 W for one port
Approval
  • EMIFCC 47 CFR Part 15 Class A EN55022 Class A
  • EMSIEC (EN )61000‐4‐2, Class 4 IEC (EN )61000‐4‐4, Class 2 IEC (EN )61000‐4‐5, Class 2 IEC (EN )61000‐4‐11, Class 4 IEC (EN )61000‐4‐12, Class 4
