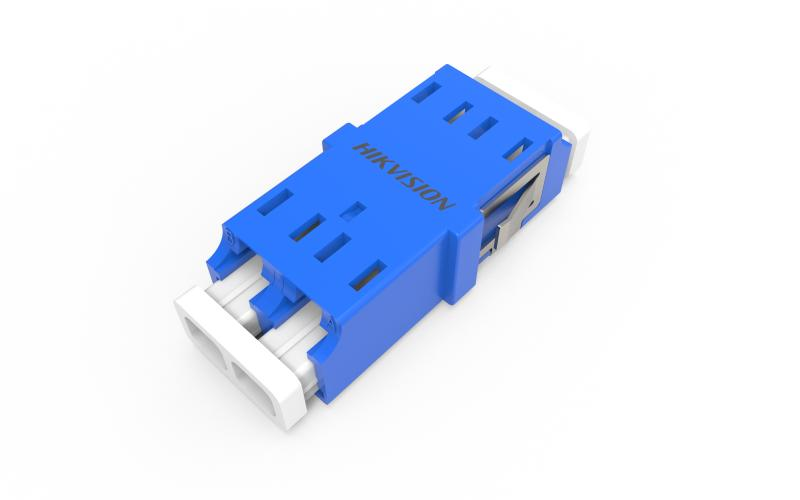

LC Flangeless Duplex Adapter

  • Excellent compatibility.
  • High quality ceramic sleeves with good concentricity, for high precision alignment and better insertion stability.
  • Three-way fastening adaptive clip for accurate mounting.
  • Complies with RoHS 2.0.
  • Applicable to fiber optic cassettes, fiber optic patch panel, fiber optic distribution box, fiber optic terminal box, and others to realize the connectivity.
View Less
View more
Sales Inquiry

Available models:

DS-1FALCDB
DS-1FALCDB

Specification

  • Reference standard
  • Reference StandardIEC 61754-20-2002
  • General Specifications
  • ColorAPC：Green UPC：Blue
  • MountingNo flange
  • Body StyleDuplex
  • InterfaceLC
  • Material Specifications
  • Material TypePolycarbonate (PC)
  • Alignment Sleeve MaterialCeramic
  • Mechanical Specifications
  • Coupling Retention Force70N
  • Durability＞500 times
  • Environmental Specifications
  • Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
  • Packaging and Weights
  • Packaging quantity5
  • Packaging TypeBag
  • Optical Specifications
  • Max. Insertion Loss0.2 dB
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Reference standard
Reference Standard
IEC 61754-20-2002
General Specifications
Color
APC：Green UPC：Blue
Mounting
No flange
Body Style
Duplex
Interface
LC
Material Specifications
Material Type
Polycarbonate (PC)
Alignment Sleeve Material
Ceramic
Mechanical Specifications
Coupling Retention Force
70N
Durability
＞500 times
Environmental Specifications
Operating Temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Packaging and Weights
Packaging quantity
5
Packaging Type
Bag
Optical Specifications
Max. Insertion Loss
0.2 dB
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Reference standard
  • Reference StandardIEC 61754-20-2002
General Specifications
  • ColorAPC：Green UPC：Blue
  • MountingNo flange
  • Body StyleDuplex
  • InterfaceLC
Material Specifications
  • Material TypePolycarbonate (PC)
  • Alignment Sleeve MaterialCeramic
Mechanical Specifications
  • Coupling Retention Force70N
  • Durability＞500 times
Environmental Specifications
  • Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Packaging and Weights
  • Packaging quantity5
  • Packaging TypeBag
Optical Specifications
  • Max. Insertion Loss0.2 dB
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
