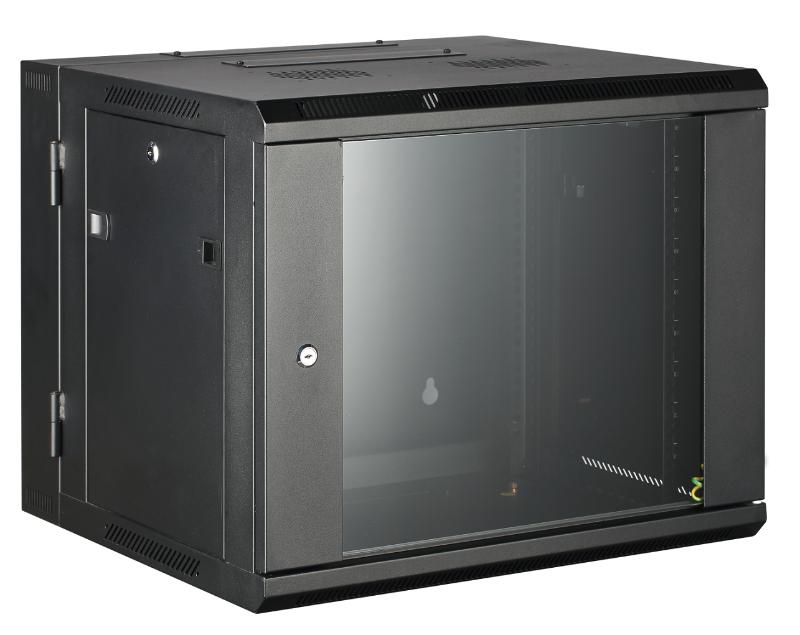

DS-XS6609-S/BR

  • The cabinet frame is welded from door frames and cross beams, ensuring a solid overall structure. This cabinet features a dual-section design, supporting front and rear door access, facilitating equipment installation and maintenance. The cabinet meets the 19-inch mounting standard and is compatible with ETSI standard equipment installation. Internal dimensions can be customized to user requirements. Suitable for data centers, voice rooms, wiring closets, production areas, and warehouses, where the protection and maintenance of heavy-duty network equipment are needed.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-XS6609-S/BR(Overseas)
DS-XS6609-S/BR
Data Sheet

Specification

  • Specifications
  • Installation MethodWall-mounted
  • Internal Space9U
  • Static Load Capacity60KG
  • Dimensions (W*D*H) mm600*600*500mm
  • Net Weight25KG
  • Parameters
  • Opening Percentage (Front Door)78%
  • Opening Percentage (Rear Door)78%
  • Front Door4mm Glass door,1mm SPCC
  • Front and Rear Frame1.2mm SPCC
  • Side Panel1.0mm SPCC
  • Beam1.2mm SPCC
  • Top Cover1.2mm SPCC
  • Bottom panel1.2mm SPCC
  • Vertical rail1.5mm SPCC
  • Rear panel1.2mm SPCC
  • Others
  • ShelfOptional
  • FANOptional
  • PDUOptional
  • Mounting Accessory Kit12 sets M6 cage nuts; 2 pcs keys；4 sets Expansion screws
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Specifications
Installation Method
Wall-mounted
Internal Space
9U
Static Load Capacity
60KG
Dimensions (W*D*H) mm
600*600*500mm
Net Weight
25KG
Parameters
Opening Percentage (Front Door)
78%
Opening Percentage (Rear Door)
78%
Front Door
4mm Glass door,1mm SPCC
Front and Rear Frame
1.2mm SPCC
Side Panel
1.0mm SPCC
Beam
1.2mm SPCC
Top Cover
1.2mm SPCC
Bottom panel
1.2mm SPCC
Vertical rail
1.5mm SPCC
Rear panel
1.2mm SPCC
Others
Shelf
Optional
FAN
Optional
PDU
Optional
Mounting Accessory Kit
12 sets M6 cage nuts; 2 pcs keys；4 sets Expansion screws
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Specifications
  • Installation MethodWall-mounted
  • Internal Space9U
  • Static Load Capacity60KG
  • Dimensions (W*D*H) mm600*600*500mm
  • Net Weight25KG
Parameters
  • Opening Percentage (Front Door)78%
  • Opening Percentage (Rear Door)78%
  • Front Door4mm Glass door,1mm SPCC
  • Front and Rear Frame1.2mm SPCC
  • Side Panel1.0mm SPCC
  • Beam1.2mm SPCC
  • Top Cover1.2mm SPCC
  • Bottom panel1.2mm SPCC
  • Vertical rail1.5mm SPCC
  • Rear panel1.2mm SPCC
Others
  • ShelfOptional
  • FANOptional
  • PDUOptional
  • Mounting Accessory Kit12 sets M6 cage nuts; 2 pcs keys；4 sets Expansion screws
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
