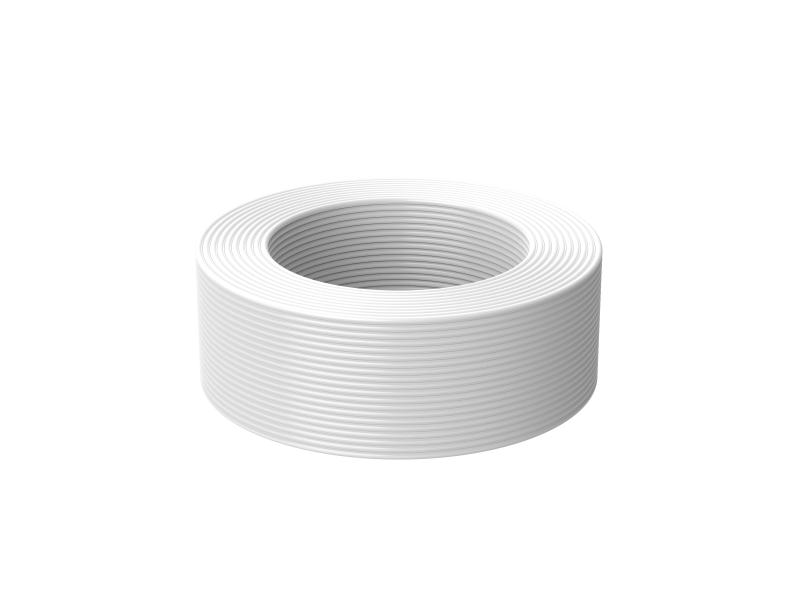

4-core CCA alarm cable

  • Suitable for high-rise office buildings, hospitals, entertainment venues hotels, guest houses and other buildings.
  • Used for wiring of smoke detectors, anti-theft alarms, and motion detectors.
  • Jacket with good mechanical strength, reducing damage during the project.
  • Continuous operation at -25 to 70℃.
  • Compliant with RoHS 2.0.
View Less
View more
Sales Inquiry

Available models:

DS-1AC4AUC0M
DS-1AC4AUC0M

Specification

  • Category
  • Product Category4-Core Alarm Cable
  • Product spec
  • Core4 * 0.22mm²
  • Conductor/Conductor 1
  • Conductor MaterialStandard CCAM
  • Conductor spec7*0.18 ± 0.008 mm （25AWG）
  • Insulation
  • Sheath ColorRed/Yellow/Blue/Black
  • Insulation/Insulation 1
  • Insulation MaterialPVC
  • Insulation Thickness≥ 0.2m
  • Insulation Diameter1.05 ± 0.10mm
  • Rip-cord
  • Rip-cordpolyster
  • Jacket
  • Jacket MaterialPVC
  • Jacket thickness≥ 0.50 mm
  • Jacket Diameter3.50 ± 0.30 mm
  • ColorWhite
  • Jacket physical properties
  • Tensile strength≥ 10 Mpa
  • Elongation≥ 150%
  • Electrical Characteristics
  • DC resistance≤ 27 Ω/100 m
  • Operating voltage60 V
  • Insulation Resistance, minimum300 MΩ.km
  • Environmental Specifications
  • Usage scenariosIndoor
  • Operating Temperature-25 ~ 70 ℃
  • Storage Temperature-25 ~ 70 ℃
  • Packaging and Weights
  • Packaging Type1 Roll/Pcs 8 Roll/Box
  • Package dimensionRoll: 18*18*9 cm Box: 37*37*19.5 cm
  • Length100 m
  • Roll: 1.5 KG Box: 13 KG
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Category
Product Category
4-Core Alarm Cable
Product spec
Core
4 * 0.22mm²
Conductor/Conductor 1
Conductor Material
Standard CCAM
Conductor spec
7*0.18 ± 0.008 mm （25AWG）
Insulation
Sheath Color
Red/Yellow/Blue/Black
Insulation/Insulation 1
Insulation Material
PVC
Insulation Thickness
≥ 0.2m
Insulation Diameter
1.05 ± 0.10mm
Rip-cord
Rip-cord
polyster
Jacket
Jacket Material
PVC
Jacket thickness
≥ 0.50 mm
Jacket Diameter
3.50 ± 0.30 mm
Color
White
Jacket physical properties
Tensile strength
≥ 10 Mpa
Elongation
≥ 150%
Electrical Characteristics
DC resistance
≤ 27 Ω/100 m
Operating voltage
60 V
Insulation Resistance, minimum
300 MΩ.km
Environmental Specifications
Usage scenarios
Indoor
Operating Temperature
-25 ~ 70 ℃
Storage Temperature
-25 ~ 70 ℃
Packaging and Weights
Packaging Type
1 Roll/Pcs 8 Roll/Box
Package dimension
Roll: 18*18*9 cm Box: 37*37*19.5 cm
Length
100 m
Roll: 1.5 KG Box: 13 KG
