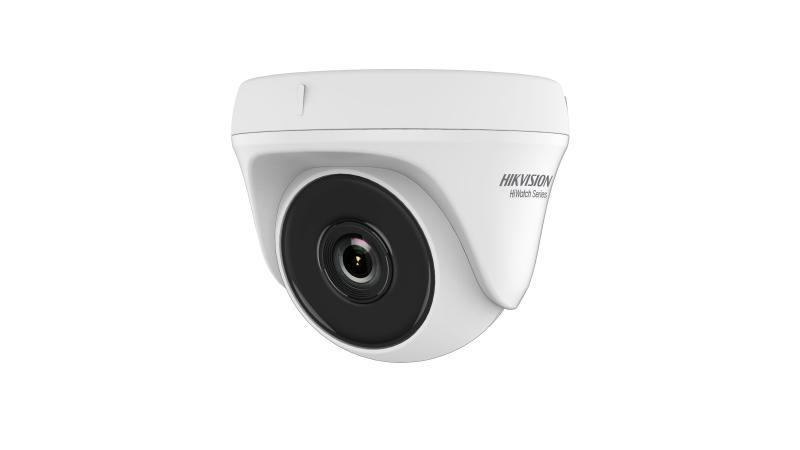

1 MP Indoor Fixed Turret Camera

HD 720p turret camera
Smart IR: up to 20 m IR distance

View Less

Available models:

HWT-T110-P(2.8mm)(HiWatch STD)

HWT-T110-P(3.6mm)(HiWatch STD)

HWT-T110-P

Specification
Resources
Accessories

Camera
Lens2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Effective Pixels1280 (H) × 720 (V)
Video Frame RatePAL:720p@25fps,NTSC: 720p@30fps
Image Sensor1 MP CMOS image sensor
Signal SystemPAL/NTSC
Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time1/25 (1/30) s to 1/50,000 s
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Menu
AGCHigh/Middle/Low/Off
LanguageEnglish, Chinese
FunctionsSharpness, Contrast, Color Gain, DNR
DWDRSupport
D/N ModeSmart/Color/BW (Black and White)
BLCSupport

Interface
Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

General
Power Supply12 VDC ±15%
Power ConsumptionMax. 4 W
MaterialPlastic
IR RangeUp to 20 m
DimensionsØ 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
Weight130 g (0.29 lb.)
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Camera

Lens

2.8 mm, 3.6 mm, 6 mm

Horizontal Field of View

92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Synchronization

Internal synchronization

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Effective Pixels

1280 (H) × 720 (V)

Video Frame Rate

PAL:720p@25fps,NTSC: 720p@30fps

Image Sensor

1 MP CMOS image sensor

Signal System

PAL/NTSC

Min. illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

1/25 (1/30) s to 1/50,000 s

Min. Illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

AGC

High/Middle/Low/Off

Language

English, Chinese

Functions

Sharpness, Contrast, Color Gain, DNR

DWDR

Support

D/N Mode

Smart/Color/BW (Black and White)

BLC

Support

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

General

Power Supply

12 VDC ±15%

Power Consumption

Max. 4 W

Material

Plastic

IR Range

Up to 20 m

Dimensions

Ø 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")

Weight

130 g (0.29 lb.)

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Camera

Lens2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Effective Pixels1280 (H) × 720 (V)
Video Frame RatePAL:720p@25fps,NTSC: 720p@30fps
Image Sensor1 MP CMOS image sensor
Signal SystemPAL/NTSC
Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time1/25 (1/30) s to 1/50,000 s
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

AGCHigh/Middle/Low/Off
LanguageEnglish, Chinese
FunctionsSharpness, Contrast, Color Gain, DNR
DWDRSupport
D/N ModeSmart/Color/BW (Black and White)
BLCSupport

Interface

Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

General

Power Supply12 VDC ±15%
Power ConsumptionMax. 4 W
MaterialPlastic
IR RangeUp to 20 m
DimensionsØ 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
Weight130 g (0.29 lb.)
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
