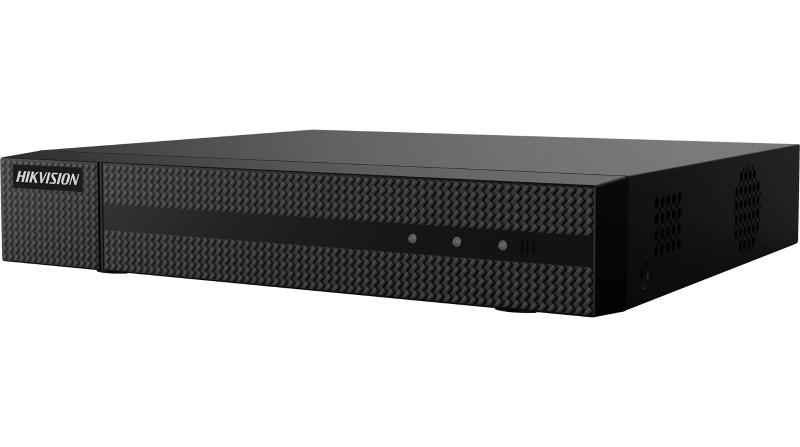

4-ch 1080p 1U H.265 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite, and when enabled the image effect is similar to 4 MP
Encoding ability up to 1080p lite @ 15 fps
One HDD for continuous video recording
Smart search for efficient playback
Alarm sport 4in 1out

View Less

Available models:

HWD-6104MH-G3

HWD-6104MH-G3A#SPAIN

Specification
Resources
Accessories

Hard disk
SATA1 SATA interface
CapacityUp to 10 TB capacity for each disk

External interface
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
USB interfaceRear panel: 2 × USB 2.0

General
Power supply12 VDC
Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity10% to 90%
Weights (without HDD)≤ 0.8 kg (1.8 lb)
Consumption(without HDD)≤ 8 W
Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Video/Audio input
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input4-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30,Note: The 3 MP signal input is only available for the first channel of HWD-6100MH-G2, the first 2 channels of HWD-6108MH-G2, and the first 4 channels of HWD-6116MH-G2.,
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputSupport
Audio compressionG.711u
Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
IP video input2-ch (up to 6-ch),Up to 6 MP resolution

Video/Audio output
Encoding resolutionWhen 4 MP Lite mode not enabled: 4 MP/4 MP Lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;,When 4 MP Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF,When 1080p Lite mode not enabled: 4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;,When 1080p Lite mode enabled: 4 MP/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF,
Frame rateMain stream:,For 3 MP stream access: 3 MP@15fps;,For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 4 MP Lite mode not enable:,For 4 MP stream access: 4 MP@8fps; 4 MP lite/1080p/720p/WD1/4CIF/VGA/CIF@15fps (N) ,When 4MP Lite mode enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode not enabled: ,For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,For 1080p stream access:1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N),
Video bit rate32 Kbps to 4 Mbps
Audio output1-ch, RCA (Linear, 1 KΩ)
Audio bit rate64 Kbps
Dual streamSupport
Stream typeVideo, Video & Audio
Synchronous playback4-ch
HDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network management
Remote connections32
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

External interface

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB interface

Rear panel: 2 × USB 2.0

General

Power supply

12 VDC

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Weights (without HDD)

≤ 0.8 kg (1.8 lb)

Consumption(without HDD)

≤ 8 W

Dimensions(W × D × H)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Video/Audio input

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog video input

4-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30,Note: The 3 MP signal input is only available for the first channel of HWD-6100MH-G2, the first 2 channels of HWD-6108MH-G2, and the first 4 channels of HWD-6116MH-G2.,

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

Support

Audio compression

G.711u

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

IP video input

2-ch (up to 6-ch),Up to 6 MP resolution

Video/Audio output

Encoding resolution

When 4 MP Lite mode not enabled: 4 MP/4 MP Lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;,When 4 MP Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF,When 1080p Lite mode not enabled: 4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;,When 1080p Lite mode enabled: 4 MP/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF,

Frame rate

Main stream:,For 3 MP stream access: 3 MP@15fps;,For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 4 MP Lite mode not enable:,For 4 MP stream access: 4 MP@8fps; 4 MP lite/1080p/720p/WD1/4CIF/VGA/CIF@15fps (N) ,When 4MP Lite mode enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode not enabled: ,For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,For 1080p stream access:1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N),

Video bit rate

32 Kbps to 4 Mbps

Audio output

1-ch, RCA (Linear, 1 KΩ)

Audio bit rate

64 Kbps

Dual stream

Support

Stream type

Video, Video & Audio

Synchronous playback

4-ch

HDMI/VGA output

1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network management

Remote connections

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA1 SATA interface
CapacityUp to 10 TB capacity for each disk

External interface

Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
USB interfaceRear panel: 2 × USB 2.0

General

Power supply12 VDC
Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity10% to 90%
Weights (without HDD)≤ 0.8 kg (1.8 lb)
Consumption(without HDD)≤ 8 W
Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Video/Audio input

Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input4-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30,Note: The 3 MP signal input is only available for the first channel of HWD-6100MH-G2, the first 2 channels of HWD-6108MH-G2, and the first 4 channels of HWD-6116MH-G2.,
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputSupport
Audio compressionG.711u
Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
IP video input2-ch (up to 6-ch),Up to 6 MP resolution

Video/Audio output

Encoding resolutionWhen 4 MP Lite mode not enabled: 4 MP/4 MP Lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;,When 4 MP Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF,When 1080p Lite mode not enabled: 4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;,When 1080p Lite mode enabled: 4 MP/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF,
Frame rateMain stream:,For 3 MP stream access: 3 MP@15fps;,For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 4 MP Lite mode not enable:,For 4 MP stream access: 4 MP@8fps; 4 MP lite/1080p/720p/WD1/4CIF/VGA/CIF@15fps (N) ,When 4MP Lite mode enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode not enabled: ,For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,For 1080p stream access:1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N),
Video bit rate32 Kbps to 4 Mbps
Audio output1-ch, RCA (Linear, 1 KΩ)
Audio bit rate64 Kbps
Dual streamSupport
Stream typeVideo, Video & Audio
Synchronous playback4-ch
HDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
