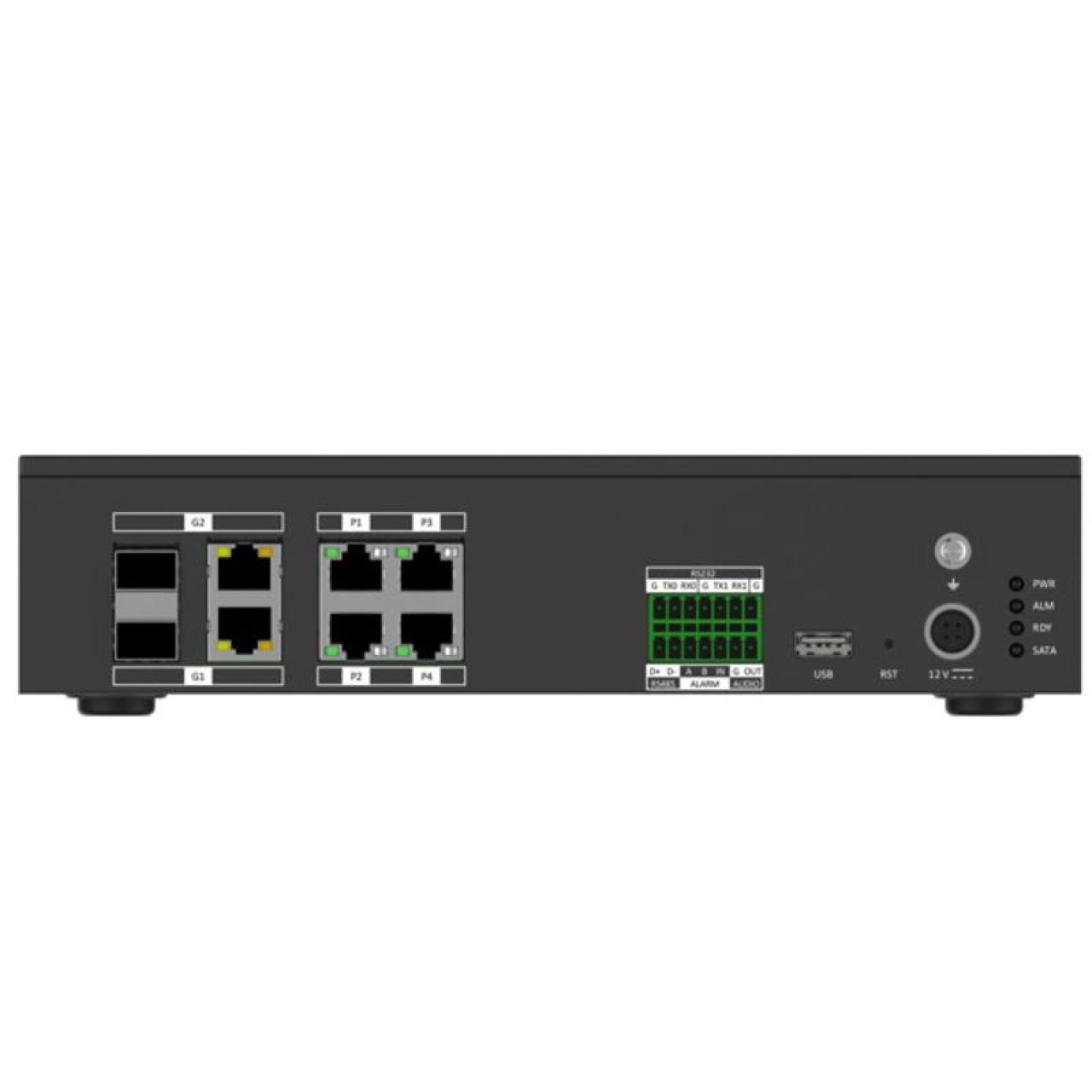

Terminal Serve

  • Supports direct connecting to 4 network cameras (single bitrate: 10M), and connecting to 4 cameras via switches. Provides passing vehicle records storage, pictures storage, videos storage, data upload, and video stream forwarding.
  • Supports connecting to multiple cameras, including normal cameras, smart monitoring cameras, traffic cameras for checkpoint and intersection violation system, network speed domes, etc.
  • Solid, compact, fan-free, and small size. It is applicable to roadside cabinet and pole mounted cabinet. All the interfaces are designed on the single panel, which makes it easy for construction and operation.
  • Up to 8 TB HDD storage. Supports to set the quota of pictures and videos.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-TP50-08I/4T
View more View Less
DS-TP50-08I NEW
Data Sheet

Specification

  • Video
  • Video CompressionH.264,H.265
  • Video Input8 CH access, up to 20MP resolution (4 directly connected, 4 connected through a switch)
  • Network
  • APIISUP,ISAPI,SDK,OTAP
  • Client Hik-Central Master, Hik-Central Pro, HikCentral Master Lite
  • ProtocolsTCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NTP,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2
  • SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.1
  • Simultaneous Live ViewUp to 8 channel(s)
  • User/HostUp to 32 users,3 user levels: administrator, operator, and user
  • Web BrowserChrome 89.0+
  • Interface
  • Network Interface4 RJ45 100 M self-adaptive Ethernet port(s),2 RJ45 10/100/1000 M self-adaptive Ethernet port(s)
  • Alarm1 × input, 1 × output
  • RS-4851 RS-485
  • RS-2322 RS-232
  • USB1 × USB 2.0 (5.0 V, 1.0 A)
  • Optical Interface1 SFP model
  • Function
  • Data UploadingReal time data upload and history data upload
  • Network SettingsAble to set two-segment IP address
  • Smart FunctionReceive and display traffic parameters statistics; Alarm in; Alarm output; Support blacklist arm and whitelist arm; Segment speed detection; Face evidence; HDD detection
  • Data StorageVehicle information (passing records and pictures) storage
  • Video RecordingVideo recording function. Recording duration is determined by the stream size and the HDD capacity.
  • General
  • Operating GUIWeb
  • Operation SystemLinux
  • Indicator4 × indicator (1 × Power Indicator, 1 × Alarm Indicator, 1 × HDD Indicator, 1 × Ready Indicator)
  • Storage1 x SATA(Supports up to 8TB HDD)
  • Power 12 VDC ± 10%, max. 30 W
  • Dimensions245 mm × 170 mm × 55 mm (9.6" × 6.7" × 2.1") (L × W × H)
  • With Package Dimensions427 mm × 243 mm × 105 mm (16.81" × 9.57" × 4.13") (L × W × H)
  • Weight Approx. 2.1 kg (4.63 lb.)
  • With Package WeightApprox. 2.9 kg (6.39 lb.)
  • Operating Condition-30 °C to 55 °C (-22 °F to 131 °F). Humidity: 5% to 95% (non-condensing)
  • Storage Condition-30 °C to 55 °C (-22 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Approval
  • EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
  • SafetyCB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video
Video Compression
H.264,H.265
Video Input
8 CH access, up to 20MP resolution (4 directly connected, 4 connected through a switch)
Network
API
ISUP,ISAPI,SDK,OTAP
Client
Hik-Central Master, Hik-Central Pro, HikCentral Master Lite
Protocols
TCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NTP,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2
Security
Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.1
Simultaneous Live View
Up to 8 channel(s)
User/Host
Up to 32 users,3 user levels: administrator, operator, and user
Web Browser
Chrome 89.0+
Interface
Network Interface
4 RJ45 100 M self-adaptive Ethernet port(s),2 RJ45 10/100/1000 M self-adaptive Ethernet port(s)
Alarm
1 × input, 1 × output
RS-485
1 RS-485
RS-232
2 RS-232
USB
1 × USB 2.0 (5.0 V, 1.0 A)
Optical Interface
1 SFP model
Function
Data Uploading
Real time data upload and history data upload
Network Settings
Able to set two-segment IP address
Smart Function
Receive and display traffic parameters statistics; Alarm in; Alarm output; Support blacklist arm and whitelist arm; Segment speed detection; Face evidence; HDD detection
Data Storage
Vehicle information (passing records and pictures) storage
Video Recording
Video recording function. Recording duration is determined by the stream size and the HDD capacity.
General
Operating GUI
Web
Operation System
Linux
Indicator
4 × indicator (1 × Power Indicator, 1 × Alarm Indicator, 1 × HDD Indicator, 1 × Ready Indicator)
Storage
1 x SATA(Supports up to 8TB HDD)
Power
12 VDC ± 10%, max. 30 W
Dimensions
245 mm × 170 mm × 55 mm (9.6" × 6.7" × 2.1") (L × W × H)
With Package Dimensions
427 mm × 243 mm × 105 mm (16.81" × 9.57" × 4.13") (L × W × H)
Weight
Approx. 2.1 kg (4.63 lb.)
With Package Weight
Approx. 2.9 kg (6.39 lb.)
Operating Condition
-30 °C to 55 °C (-22 °F to 131 °F). Humidity: 5% to 95% (non-condensing)
Storage Condition
-30 °C to 55 °C (-22 °F to 131 °F). Humidity 95% or less (non-condensing)
Approval
EMC
CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017
Environment
CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
