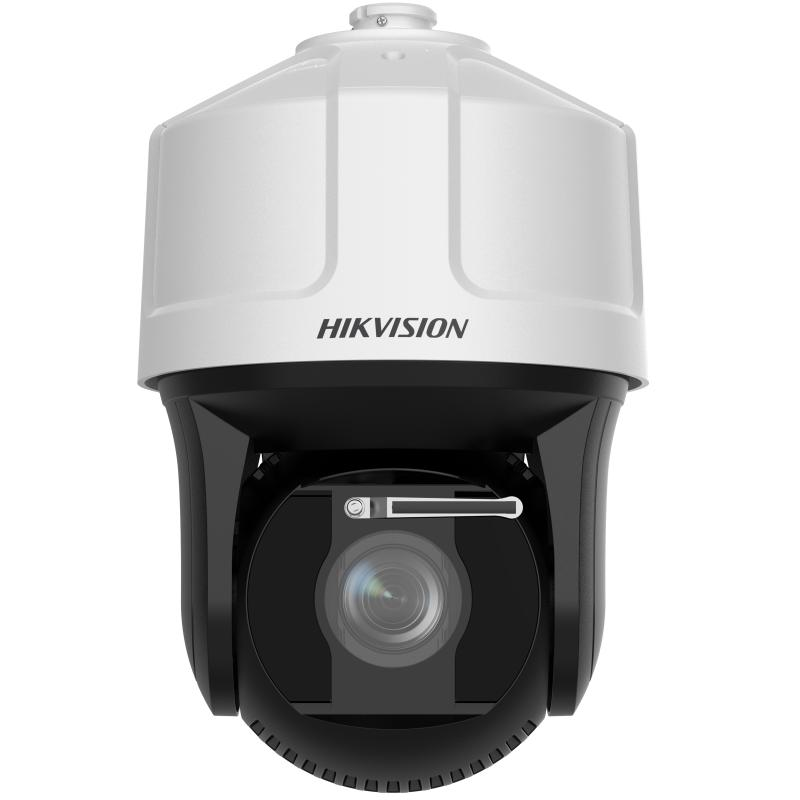

iDS-2VS435-F840-EY(T5)

4 MP 40X DarkFighter Traffic Network Speed Dome

High quality imaging with 4 MP resolution
Excellent low-light performance with DarkFighter technology
40 × optical zoom, 16 × digital zoom
140 dB WDR, 3D DNR, HLC, BLC, EIS, defog
400 m IR distance
Efficient H.265+/H.265 compression technology
Multiple violations supported: illegal parking detection, reverse driving detection, over lane line detection, illegal lane change detection, vehicle on non-motor vehicle lane, U-turning detection
Water and dust resistant (IP67)
The illegal parking detection distance is 300 m in multi-scene patrol

View Less

iDS-2VS435-F840-EY(T5)

Available models:

iDS-2VS435-F840-EY(T5)

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Day & Night IR cut filter
Zoom 40 × optical,16 × digital
Slow Shutter Yes

Lens
Focal Length 6 to 240 mm
FOV Horizontal field of view: 56.6° to 1.8°, vertical field of view: 33.7° to 1.0°, diagonal field of view: 63.4° to 2.0°
Focus Auto,semi-auto,manual
Aperture Max. F1.2
Zoom Speed Approx. 5.4 s

Illuminator
Supplement Light Type IR
Supplement Light Range IR distance: up to 400 m
Smart Supplement Light Yes

PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -20° to 90°,auto flip
Pan Speed Pan speed: configurable from 0.1° to 210°/s, preset speed: 280°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,dome reboot,dome adjust,aux output,panorama scan
Power-off Memory Yes

Video
Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)

Network
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser Safari11+,Chrome57+,Firefox52+,IE11

Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day,night,auto,schedule
Wide Dynamic Range (WDR) 140 dB
SNR ≥ 52 dB
Defog Optical defog,Digital defog
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes

Supplement Detection
Satellite Positioning No
Gyroscope Yes
Compass No

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
Alarm 7 input(s), 2 output(s)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes

Event
Basic Event Motion detection,video tampering alarm,exception,alarm input and output
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Illegal Parking Illegal parking detection,reverse driving detection,over lane line detection,illegal lane change detection,vehicle on non-motor vehicle lane,U-turning detection

General
Power 36 VDC ± 25%, max. 62 W
Dimension Ø266.6 mm × 410 mm (Ø10.50" × 16.14")
Weight Approx. 8 kg (17.64 lb.)
Material ADC12
Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Vandal-proof Alarm Yes
Heater Yes
Wiper Yes
De-icing No
Demist No
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),KC (KN 32: 2015, KN 35: 2015),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
Safety UL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K V lightning protection, surge protection and voltage transient protection

Specification

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with IR

Shutter Speed

1/1 s to 1/30000 s

Day & Night

IR cut filter

Zoom

40 × optical,16 × digital

Slow Shutter

Yes

Lens

Focal Length

6 to 240 mm

FOV

Horizontal field of view: 56.6° to 1.8°, vertical field of view: 33.7° to 1.0°, diagonal field of view: 63.4° to 2.0°

Focus

Auto,semi-auto,manual

Aperture

Max. F1.2

Zoom Speed

Approx. 5.4 s

Illuminator

Supplement Light Type

Supplement Light Range

IR distance: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360° endless

Movement Range (Tilt)

-20° to 90°,auto flip

Pan Speed

Pan speed: configurable from 0.1° to 210°/s, preset speed: 280°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s

Proportional Pan

Yes

Presets

300

Preset Freezing

Yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,dome reboot,dome adjust,aux output,panorama scan

Power-off Memory

Yes

Video

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC

Audio Bit Rate

64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)

Network

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Client

iVMS-4200,HikCentral Pro,Hik-Connect

Web Browser

Safari11+,Chrome57+,Firefox52+,IE11


Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

Day,night,auto,schedule

Wide Dynamic Range (WDR)

140 dB

SNR

≥ 52 dB

Defog

Optical defog,Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Supplement Detection

Satellite Positioning

Gyroscope

Yes

Compass

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

Alarm

7 input(s), 2 output(s)

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Event

Basic Event

Motion detection,video tampering alarm,exception,alarm input and output

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Illegal Parking

Illegal parking detection,reverse driving detection,over lane line detection,illegal lane change detection,vehicle on non-motor vehicle lane,U-turning detection

General

Power

36 VDC ± 25%, max. 62 W

Dimension

Ø266.6 mm × 410 mm (Ø10.50" × 16.14")

Weight

Approx. 8 kg (17.64 lb.)

Material

ADC12

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

Vandal-proof Alarm

Yes

Heater

Yes

Wiper

Yes

De-icing

Demist

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),KC (KN 32: 2015, KN 35: 2015),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)

Safety

UL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K V lightning protection, surge protection and voltage transient protection
