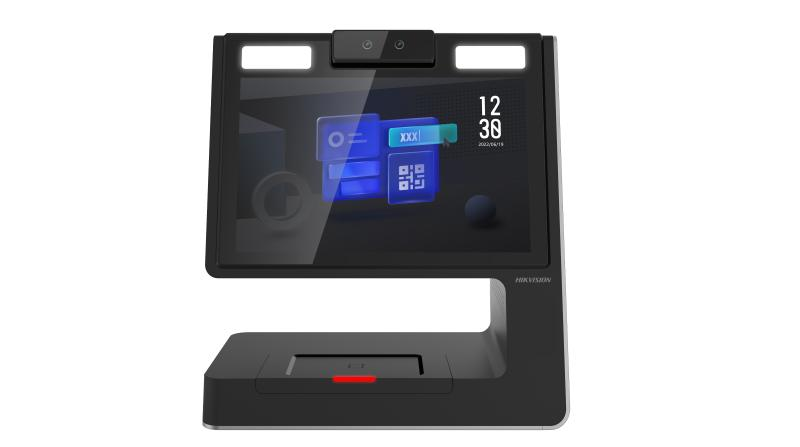

Pro Series Visitor Terminal

  • Android operation system with dual-screen design.
  • Paperless visitor enrollment.
  • Supports both stand-alone and networking application. TCP/IP and Wi-Fi are available for networking application.
  • Up to 150,000 visitor records can be stored on the device.
View Less
View more

Available models:

DS-K5032-D

Specification

  • System
  • Operation systemAndroid 7.1.2
  • Display
  • SizeFor Administrator: 10.1-inch LCD touch screen For visitor: 10.1-inch display screen
  • Resolution1280 × 800
  • Video
  • Pixel2 MP
  • Lens2
  • WDRSupport
  • Audio
  • Audio outputBuilt-in loudspeaker
  • Network
  • Wired network10/100/1000 M self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • Power interfaceRound
  • USB2
  • Capacity
  • Visitor record150,000
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 4 cm
  • Card reading duration< 1 s
  • General
  • IndicatorRed/green indicator
  • Power supply12 VDC/3 A
  • Working temperature-10 ℃ to 50 ℃ (14 °F to 122 °F)
  • Working humidity10% to 90%

Specification

Specification
System
  • Operation systemAndroid 7.1.2
Display
  • SizeFor Administrator: 10.1-inch LCD touch screen For visitor: 10.1-inch display screen
  • Resolution1280 × 800
Video
  • Pixel2 MP
  • Lens2
  • WDRSupport
Audio
  • Audio outputBuilt-in loudspeaker
Network
  • Wired network10/100/1000 M self-adaptive
  • Wi-FiSupport
Interface
  • Network interface1
  • Power interfaceRound
  • USB2
Capacity
  • Visitor record150,000
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 4 cm
  • Card reading duration< 1 s
General
  • IndicatorRed/green indicator
  • Power supply12 VDC/3 A
  • Working temperature-10 ℃ to 50 ℃ (14 °F to 122 °F)
  • Working humidity10% to 90%
