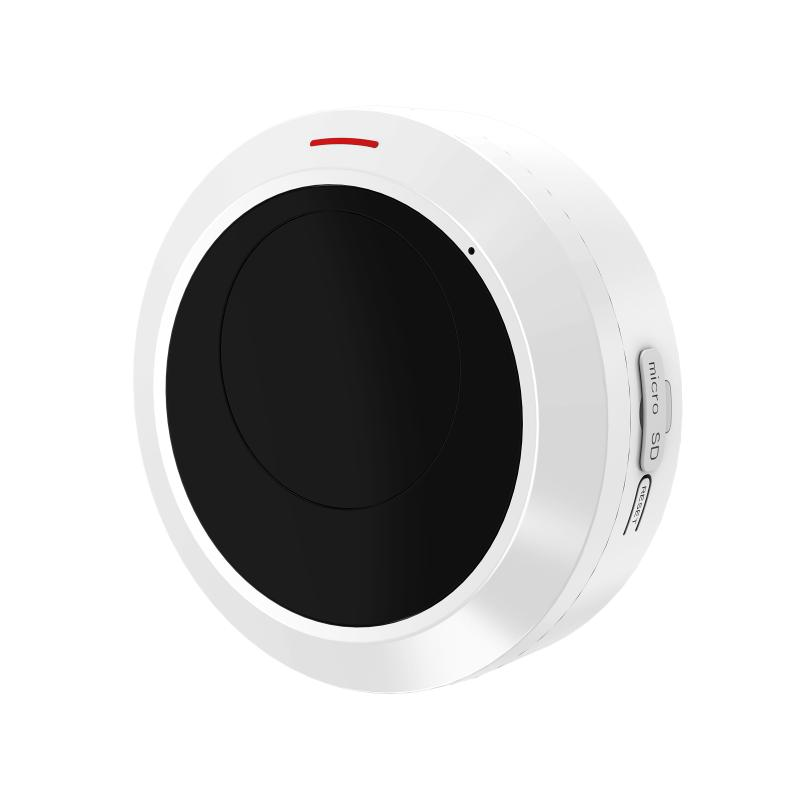

Thermal Presence Detector

160× 120 resolution, 17 μm, VOx UFPA, NETD < 50 mK (25°C, F1.1)
People number exception and presence detection with thermal solution, protects your privacy.
Healthy tracking, detects specific groups' abnormal behavior like out of bed to prevent an accident.
Temperature exception alarm for fire prevention, -10°C to 200°C (14°F to 392°F), ± 8°C (± 14.4°F)
Relay out for light, air-condition system control, conserves energy
2.4GHz Wi-Fi, easy for set-up.

View Less

Data Sheet

Available models:

HM-TD1017-2/QW-HS121

Specification
Resources
Accessories

Data Sheet

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution160 × 120
Pixel Pitch17 μm
Spectral Range8 μm to 14 μm
NETD< 50 mK (25°C, F1.1)
Focal Length1.9 mm
IFOV8.95 mrad
Field of View90.0°(H) × 65.3°(V)
Min. Focusing Distance0.1 m
ApertureF1.1

Smart Function
Temperature Range-20°C to 200°C (14°F to 392°F)
Temperature Accuracy± 8°C (± 14.4°F)

Video and Audio
Main StreamThermal: 25 fps (320 × 240, 352 × 288, 640 × 480, 704 × 576, 1280 ×720)
Sub-streamThermal: 25 fps (320 × 240, 352 × 288, 704 × 576)
Third StreamThermal: 25 fps (320 × 240, 352 × 288, 704 × 576, 1280 ×720)
Video CompressionH.265/H.264

Network
ProtocolsIPv4,IPv6,HTTP,HTTPS,Qos,SMTP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,DHCP
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

Mobile Communication
Wi-FiWi-Fi standard: IEEE802.11b, 802.11g, 802.11n Frequency range: 2.4GHz~2.4835GHz Channel bandwith: Support 20MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Interface
Alarm Output1, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload
Reset Key1 reset button built in the motherboard
Communication Interface1, RS-485 interface (half duplex)

General
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply5-16 VDC, type-C PoE available (type-C to PoE convertor)
Power Consumption5-16 VDC: 0.22-0.7 A, Max. 3.5 W
Working Temperature/HumidityTemperature: -10°C to 40°C (14°F to 112°F) Humidity: 95% or less
Dimensionsφ70mm × 25 mm (φ2.75" × 0.98")
Weight100 g (0.22 lb)

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

160 × 120

Pixel Pitch

17 μm

Spectral Range

8 μm to 14 μm

NETD

< 50 mK (25°C, F1.1)

Focal Length

1.9 mm

IFOV

8.95 mrad

Field of View

90.0°(H) × 65.3°(V)

Min. Focusing Distance

0.1 m

Aperture

F1.1

Smart Function

Temperature Range

-20°C to 200°C (14°F to 392°F)

Temperature Accuracy

± 8°C (± 14.4°F)

Video and Audio

Main Stream

Thermal: 25 fps (320 × 240, 352 × 288, 640 × 480, 704 × 576, 1280 ×720)

Sub-stream

Thermal: 25 fps (320 × 240, 352 × 288, 704 × 576)

Third Stream

Thermal: 25 fps (320 × 240, 352 × 288, 704 × 576, 1280 ×720)

Video Compression

H.265/H.264

Network

Protocols

IPv4,IPv6,HTTP,HTTPS,Qos,SMTP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,DHCP

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

API

ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200

Web Browser

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

Mobile Communication

Wi-Fi

Wi-Fi standard: IEEE802.11b, 802.11g, 802.11n Frequency range: 2.4GHz~2.4835GHz Channel bandwith: Support 20MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Interface

Alarm Output

1, alarm output (alarm response actions configurable)

Alarm Action

SD recording/Relay output/Smart capture/FTP upload

Reset Key

1 reset button built in the motherboard

Communication Interface

1, RS-485 interface (half duplex)

General

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

5-16 VDC, type-C PoE available (type-C to PoE convertor)

Power Consumption

5-16 VDC: 0.22-0.7 A, Max. 3.5 W

Working Temperature/Humidity

Temperature: -10°C to 40°C (14°F to 112°F) Humidity: 95% or less

Dimensions

φ70mm × 25 mm (φ2.75" × 0.98")

Weight

100 g (0.22 lb)
