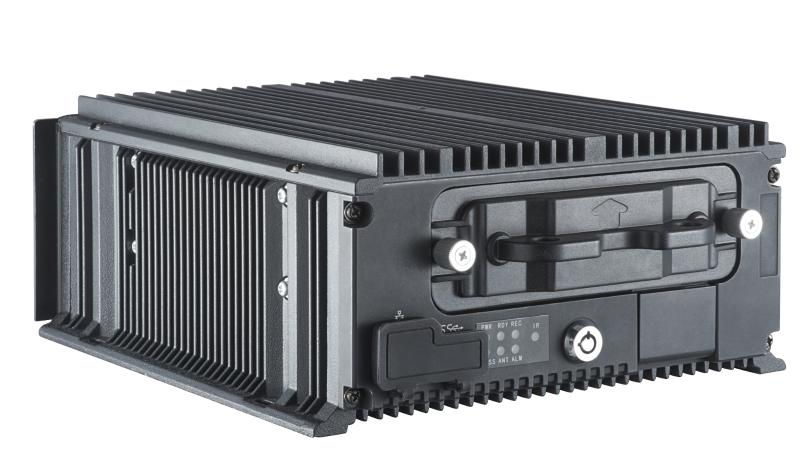

DS-MP7608HN(B)

EOL

8-ch 1080p, 2 x HDD/SSD Mobile Intelligent NVR

  • Connects 8-ch IP cameras via PoE interfaces. Connects 8 more IP cameras via PoE switch.
  • Up to 1080p resolution of H.264/H.265 compression for each IP camera.
  • One CVBS video output interface. One VGA video output interface with up to 1080p resolution.
  • 1-ch abnormal detection: fatigue driving, and not looking straight ahead.
  • 2-ch LPR or 1-ch object recognition (work separately).
  • Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk vibration damping technology.
  • Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
  • Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
  • Information collection interfaces collecting driving information such as left/right turning, braking, reversing, etc.
  • Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
  • Wide-range power input (+9 VDC to +32 VDC).
  • Power-off protection prevents key data from loss.
  • Supports accessing via WEB browser.
  • Aluminum die-cast chassis.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-MP7608HN(M12)(B)
DS-MP7608HN(M12)(B)
DS-MP7608HN(B)
EOL
Data Sheet

Specification

  • Video/Audio Input
  • IP Camera16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
  • Two-way Audio1, integrated in EXT.DEV interface
  • Video/Audio Output
  • Video Output1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
  • Audio Output1
  • Storage
  • HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,Dummy HDD with USB 3.0 interface
  • SD Card1 × SD card, up to 256 GB
  • External Interface
  • Network InterfaceFront panel: 1 × 10M/100M/1000M RJ45 Ethernet interface Rear panel: 1 × 10M/100M/1000M M12 Ethernet interface
  • USB InterfaceFront panel: 1 × USB 3.0,Rear panel: 1 × USB 2.0 of 5-pin aviation plug
  • Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
  • Alarm Output2 relay signal outputs
  • Serial Port2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
  • CAN interface2
  • Sensor-in4 high/low level signal inputs
  • Wireless Network
  • 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
  • Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna,WI model: 1 × 2.4 G Wi-Fi SMA antenna
  • General
  • Working TemperatureDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F),Other devices: -10 °C to +60 °C (14 °F to 140°F)
  • Working Humidity10% to 95%
  • Power Supply9 to 32 VDC
  • ConsumptionStandby: ≤ 0.5 W,Full load: ≤ 99 W ,Note: Without peripheral and storage media ≤ 20 W
  • Operating MethodMouse, IR remote control, Web control, and touchscreen
  • Dimensions (W × D × H)202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
  • Weight (Without Storage Media)3.66 kg (8.07 lb)
  • Positioning
  • GNSS (Global Navigation Satellite System)GPS (Global Positioning System), 1 × Rosenberger antenna
  • Encoding/Decoding Parameters
  • Video CompressionH.264, H.265
  • Encoding ResolutionMain stream: 1080P/720P/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF
  • Frame RatePAL: 1 to 25fps; NTSC: 1 to 30fps
  • Audio CompressionG.722
  • Stream TypeVideo, video & audio
  • Audio Bitrate16 Kbps
  • Dual StreamSupported
  • PoE
  • PoE Interface8 × M12 PoE interface
  • Max. Consumption51 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video/Audio Input
IP Camera
16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
Two-way Audio
1, integrated in EXT.DEV interface
Video/Audio Output
Video Output
1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
Audio Output
1
Storage
HDD/SSD
2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,Dummy HDD with USB 3.0 interface
SD Card
1 × SD card, up to 256 GB
External Interface
Network Interface
Front panel: 1 × 10M/100M/1000M RJ45 Ethernet interface Rear panel: 1 × 10M/100M/1000M M12 Ethernet interface
USB Interface
Front panel: 1 × USB 3.0,Rear panel: 1 × USB 2.0 of 5-pin aviation plug
Alarm Input
4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
Alarm Output
2 relay signal outputs
Serial Port
2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
CAN interface
2
Sensor-in
4 high/low level signal inputs
Wireless Network
3G/4G Dialing
1 × 3G/4G card slot, 1 × Rosenberger antenna
Wi-Fi
WI58 model: 2 × 5.8 G Wi-Fi SMA antenna,WI model: 1 × 2.4 G Wi-Fi SMA antenna
General
Working Temperature
Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F),Other devices: -10 °C to +60 °C (14 °F to 140°F)
Working Humidity
10% to 95%
Power Supply
9 to 32 VDC
Consumption
Standby: ≤ 0.5 W,Full load: ≤ 99 W ,Note: Without peripheral and storage media ≤ 20 W
Operating Method
Mouse, IR remote control, Web control, and touchscreen
Dimensions (W × D × H)
202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
Weight (Without Storage Media)
3.66 kg (8.07 lb)
Positioning
GNSS (Global Navigation Satellite System)
GPS (Global Positioning System), 1 × Rosenberger antenna
Encoding/Decoding Parameters
Video Compression
H.264, H.265
Encoding Resolution
Main stream: 1080P/720P/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF
Frame Rate
PAL: 1 to 25fps; NTSC: 1 to 30fps
Audio Compression
G.722
Stream Type
Video, video & audio
Audio Bitrate
16 Kbps
Dual Stream
Supported
PoE
PoE Interface
8 × M12 PoE interface
Max. Consumption
51 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
