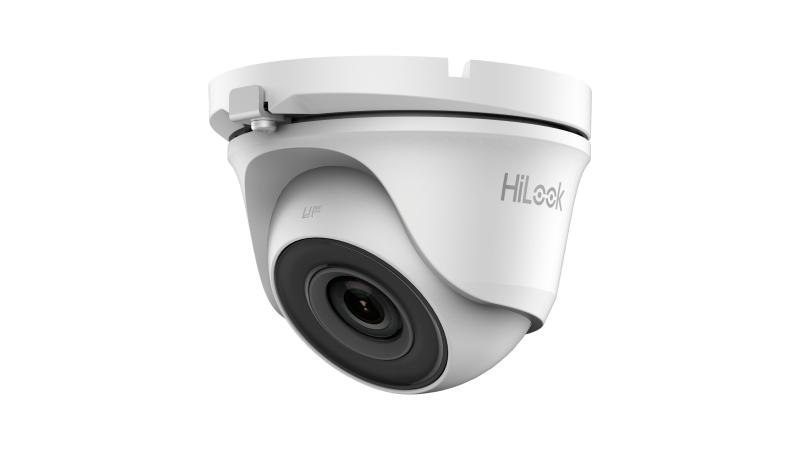

1 MP Fixed Turret Camera

  • HD 720p turret camera
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66).
View Less
View more
Data Sheet
Sales Inquiry

Available models:

THC-T110-M(2.8mm)(HiLook STD)
THC-T110-M(3.6mm)(HiLook STD)
THC-T110-M
Data Sheet

Specification

  • Kamera
  • Image Sensor1 MP CMOS image sensor
  • Max. Resolution1280 (H) × 720 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm
  • Focal Length & FOV92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
  • Lens MountM12
  • Image
  • Image SettingsSharpness, Contrast, Color Gain, DNR
  • Frame RatePAL: 720p@25fps,NTSC: 720p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCHigh/Medium/Low/Off
  • Supplement Detection(PIR)
  • PIR RangeUp to 20 m
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialMetal
  • DimensionØ 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
  • Weight230 g (0.51 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • LanguageEnglish, Chinese
  • Power Supply12 VDC ± 15%
  • ConsumptionMax. 4.2 W
  • IR Range<30m
  • Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1 MP CMOS image sensor
Max. Resolution
1280 (H) × 720 (V)
Min. Illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
1/25 (1/30) s to 1/50,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm, 6 mm
Focal Length & FOV
92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
Lens Mount
M12
Image Settings
Sharpness, Contrast, Color Gain, DNR
Frame Rate
PAL: 720p@25fps,NTSC: 720p@30fps
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
DWDR
Image Enhancement
BLC
AGC
High/Medium/Low/Off
Supplement Detection(PIR)
PIR Range
Up to 20 m
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Metal
Dimension
Ø 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
Weight
230 g (0.51 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language
English, Chinese
Power Supply
12 VDC ± 15%
Consumption
Max. 4.2 W
IR Range
<30m
Approval
Protection
IP66
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Kamera
  • Image Sensor1 MP CMOS image sensor
  • Max. Resolution1280 (H) × 720 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm
  • Focal Length & FOV92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
  • Lens MountM12
  • Image SettingsSharpness, Contrast, Color Gain, DNR
  • Frame RatePAL: 720p@25fps,NTSC: 720p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCHigh/Medium/Low/Off
Supplement Detection(PIR)
  • PIR RangeUp to 20 m
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
  • MaterialMetal
  • DimensionØ 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
  • Weight230 g (0.51 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • LanguageEnglish, Chinese
  • Power Supply12 VDC ± 15%
  • ConsumptionMax. 4.2 W
  • IR Range<30m
Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.06.00_240821
Applied to:
THC-T110-M(2.8mm)(HiLook STD)
THC-T110-M(3.6mm)(HiLook STD)
