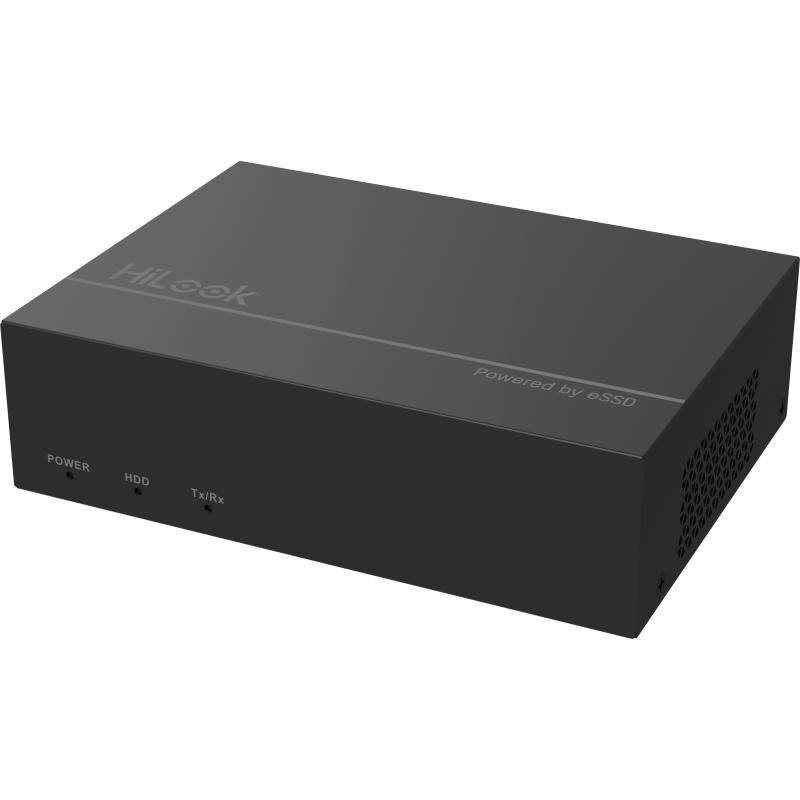

8-ch 1080p Lite 1U H.265 eSSD DVR

  • Powered by eSSD technology
  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Scene-Adaptive Bitrate Control video compression
  • Up to 1080p Lite@15 fps encoding capability
  • Low power consumption
  • Audio via coaxial cable

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DVR-E08G-B
DVR-E08G-B
EOL
Data Sheet

Specification

  • Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • Video and Audio
  • IP Video Input2-ch Up to 5 MP resolution Support H.265+/H.265 IP cameras
  • Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input8-ch via coaxial cable
  • Audio Output1-ch via HDMI
  • Synchronous playback8-ch
  • Recording
  • Video CompressionH.265 Pro/H.265
  • Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
  • Frame RateMain stream: 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps Note: 1080p Lite/720p is 15 fps by default Sub-stream: CIF/QVGA@15 fps
  • Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
  • Stream TypeVideo, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Total Bandwidth72 Mbps Incoming bandwidth: 8 Mbps
  • Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
  • Remote Connection32
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • CapacityBuilt-in 512 GB eSSD (480 GB available) Note: The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A
  • General
  • Power Supply12 VDC, 1 A
  • Consumption≤ 6.2 W (with eSSD)
  • Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
  • Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
IP Video Input
2-ch Up to 5 MP resolution Support H.265+/H.265 IP cameras
Analog Video Input
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
8-ch via coaxial cable
Audio Output
1-ch via HDMI
Synchronous playback
8-ch
Recording
Video Compression
H.265 Pro/H.265
Encoding Resolution
1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate
Main stream: 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps Note: 1080p Lite/720p is 15 fps by default Sub-stream: CIF/QVGA@15 fps
Video Bitrate
According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream Type
Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
72 Mbps Incoming bandwidth: 8 Mbps
Network Protocol
TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Remote Connection
32
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
Capacity
Built-in 512 GB eSSD (480 GB available) Note: The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
USB Interface
Rear panel: 2 × USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1 A
Consumption
≤ 6.2 W (with eSSD)
Working Temperature
-10 °C to 45 °C (14 °F to +113 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
Weight
≤ 0.5 kg (with eSSD, 1.1 lb.)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
  • IP Video Input2-ch Up to 5 MP resolution Support H.265+/H.265 IP cameras
  • Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input8-ch via coaxial cable
  • Audio Output1-ch via HDMI
  • Synchronous playback8-ch
Recording
  • Video CompressionH.265 Pro/H.265
  • Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
  • Frame RateMain stream: 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps Note: 1080p Lite/720p is 15 fps by default Sub-stream: CIF/QVGA@15 fps
  • Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
  • Stream TypeVideo, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
Network
  • Total Bandwidth72 Mbps Incoming bandwidth: 8 Mbps
  • Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
  • Remote Connection32
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • CapacityBuilt-in 512 GB eSSD (480 GB available) Note: The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A
General
  • Power Supply12 VDC, 1 A
  • Consumption≤ 6.2 W (with eSSD)
  • Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
  • Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
