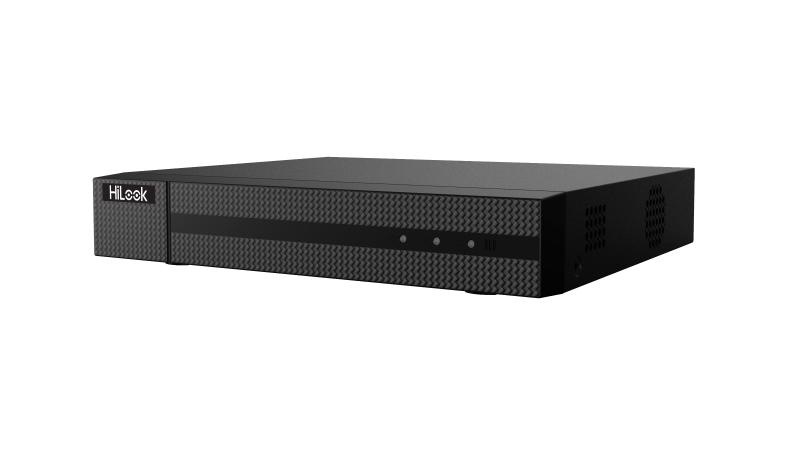

DVR-224G-K2

EOL

24-ch 1080p Lite 1U H.265 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
Supports 1080p lite, and when enabled the image effect is similar with 1080p
Encoding abilty up to 1080p lite @ 12 fps
Two HDDs for continuous video recording
Smart search for efficient playback

View Less

Available models:

DS-HiLookI-DVR-224G-K2

Recording
Encoding resolution1080p lite/720p/VGA/WD1/4CIF/CIF
Video bit rate32 Kbps to 4 Mbps
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual streamSupport
Stream typeVideo, Video & Audio
Audio compressionG.711u
Audio bit rate64 Kbps

Video and Audio
Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output1-ch, RCA (Linear, 1 KΩ)
Synchronous playback16-ch
IP video input2-ch (up to 18-ch);Up to 5MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input1080p25, 1080p30, 720p25, 720p30
HDCVI input1080p25, 1080p30, 720p25, 720p30
CVBS inputPAL/NTSC
Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog video input24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input1080p25, 1080p30, 720p25, 720p30
CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote connections128
Network interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface
CapacityUp to 10 TB capacity for each disk
Serial interfaceN/A
USB interfaceFront panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm in/outN/A
SATA2 SATA interface

General
Consumption(without HDD)≤ 18 W
Working humidity10% to 90%
Power supply12 VDC
Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
Weights (without HDD)≤ 2.2 kg (4.9 lb)

Specification

Recording

Encoding resolution

1080p lite/720p/VGA/WD1/4CIF/CIF

Video bit rate

32 Kbps to 4 Mbps

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Synchronous playback

16-ch

IP video input

2-ch (up to 18-ch);Up to 5MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

HDTVI input

1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Analog video input

24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD input

1080p25, 1080p30, 720p25, 720p30

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote connections

128

Network interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

Capacity

Up to 10 TB capacity for each disk

Serial interface

N/A

USB interface

Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0

Alarm in/out

N/A

SATA

2 SATA interface

General

Consumption(without HDD)

≤ 18 W

Working humidity

10% to 90%

Power supply

12 VDC

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Dimensions(W × D × H)

380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)

Weights (without HDD)

≤ 2.2 kg (4.9 lb)

Recording

Encoding resolution1080p lite/720p/VGA/WD1/4CIF/CIF
Video bit rate32 Kbps to 4 Mbps
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual streamSupport
Stream typeVideo, Video & Audio
Audio compressionG.711u
Audio bit rate64 Kbps

Video and Audio

Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output1-ch, RCA (Linear, 1 KΩ)
Synchronous playback16-ch
IP video input2-ch (up to 18-ch);Up to 5MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input1080p25, 1080p30, 720p25, 720p30
HDCVI input1080p25, 1080p30, 720p25, 720p30
CVBS inputPAL/NTSC
Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog video input24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input1080p25, 1080p30, 720p25, 720p30
CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote connections128
Network interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

CapacityUp to 10 TB capacity for each disk
Serial interfaceN/A
USB interfaceFront panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm in/outN/A
SATA2 SATA interface

General

Consumption(without HDD)≤ 18 W
Working humidity10% to 90%
Power supply12 VDC
Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
Weights (without HDD)≤ 2.2 kg (4.9 lb)

Data Sheet

Quick Start Guide

Firmware

Firmware_Europe_V4.30.122_201107

Firmware_Asia_V4.30.122_201107

Turbo HD DVR_V4.30.122 build 201107

Applied to:

DS-HiLookI-DVR-224G-K2

For better user experience, we highly recommend you to update your device to the latest firmware asap.
