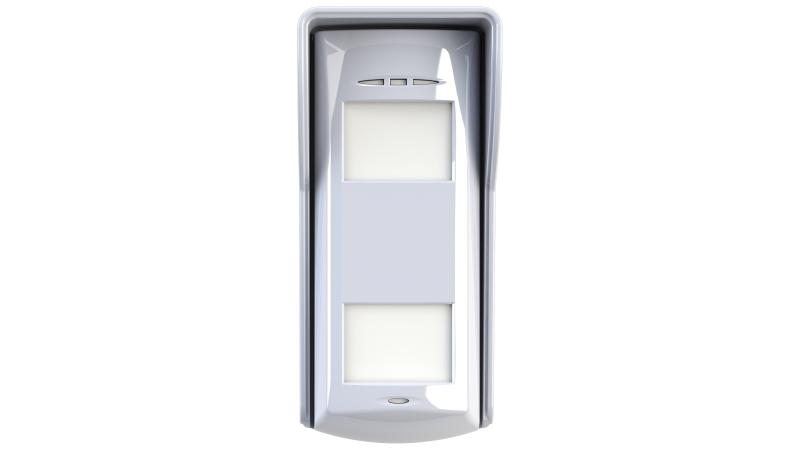

Wireless Triple Signal Detector

  • RF 433MHz
  • Two-way wireless
  • AES-128 encryption
  • Detection range: 12m*12m, 90 degrees
  • 2 PIR+Microwave detection
  • Pet immunity: 24kg
  • Anti-masking, anti-blocking
  • Weather proof sealed optics
  • Communication distance: 800M (in open area)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PD2-T12P-WEL(433M)
DS-PD2-T12P-WEL(433M)
Data Sheet

Specification

  • Detection performance
  • Detection Range12m
  • Detection Angle90°
  • Velocity range0.25m/s ~ 3m/s
  • Pet Immunity24kg
  • Software features
  • Tamper-ProofSupport
  • Hardware features
  • IndicatorTri-color LED Indicator
  • RF transmission
  • RF Frequency433MHz
  • RF Range800m (in open area)
  • Electrical characteristics
  • Battery type2×3V 4700mAH Lithium Battery packs
  • Battery life span3 years
  • General
  • Operation temperature-25℃ ~ +60℃
  • Dimension(WxHxD)188mm*77mm*84mm
  • Weight300g (without bracket)
  • Application scenarioOutdoor
  • ColorWhite
  • Installation height1 ~ 1.5m
  • Installation methodWall mounted
  • BracketAdditional Wallbracket, Adaptor and Fixedbracket
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection performance
Detection Range
12m
Detection Angle
90°
Velocity range
0.25m/s ~ 3m/s
Pet Immunity
24kg
Software features
Tamper-Proof
Support
Hardware features
Indicator
Tri-color LED Indicator
RF transmission
RF Frequency
433MHz
RF Range
800m (in open area)
Electrical characteristics
Battery type
2×3V 4700mAH Lithium Battery packs
Battery life span
3 years
General
Operation temperature
-25℃ ~ +60℃
Dimension(WxHxD)
188mm*77mm*84mm
Weight
300g (without bracket)
Application scenario
Outdoor
Color
White
Installation height
1 ~ 1.5m
Installation method
Wall mounted
Bracket
Additional Wallbracket, Adaptor and Fixedbracket
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Detection performance
  • Detection Range12m
  • Detection Angle90°
  • Velocity range0.25m/s ~ 3m/s
  • Pet Immunity24kg
Software features
  • Tamper-ProofSupport
Hardware features
  • IndicatorTri-color LED Indicator
RF transmission
  • RF Frequency433MHz
  • RF Range800m (in open area)
Electrical characteristics
  • Battery type2×3V 4700mAH Lithium Battery packs
  • Battery life span3 years
General
  • Operation temperature-25℃ ~ +60℃
  • Dimension(WxHxD)188mm*77mm*84mm
  • Weight300g (without bracket)
  • Application scenarioOutdoor
  • ColorWhite
  • Installation height1 ~ 1.5m
  • Installation methodWall mounted
  • BracketAdditional Wallbracket, Adaptor and Fixedbracket
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
