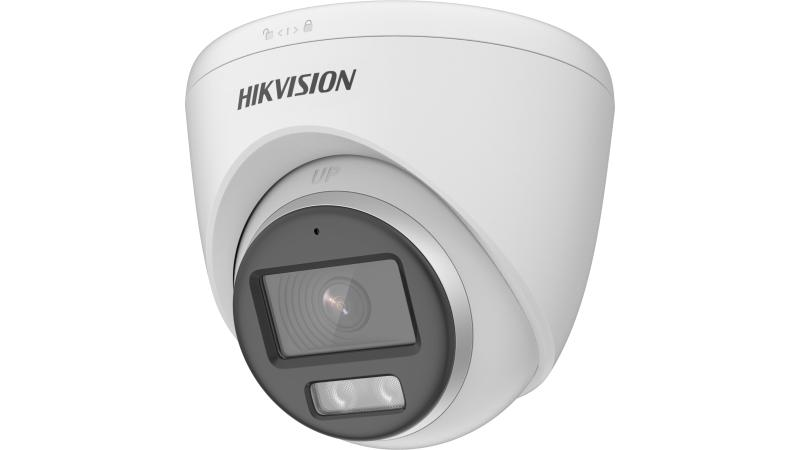

DS-2CE72KF0T-FS

3K ColorVu Audio Fixed Turret Camera

High quality imaging with 3K, 2960 × 1665 resolution
24/7 color imaging with F1.0 aperture
2.8 mm and 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
High quality audio with audio over coaxial cable, built-in mic

View Less

Available models:

DS-2CE72KF0T-FS(2.8mm)

Camera
Image Sensor3K CMOS
Signal SystemPAL/NTSC
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
Lens MountM12

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 40 m

Frame RateTVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementDWDR, BLC, HLC, Global, HLS
Noise Reduction2D DNR
Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
AlarmSolid Light Alarm (White Light)
AudioBuilt-in mic

General
LanguageEnglish
Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
MaterialMain body: Metal, Enclosure: Plastic
CommunicationHIKVISION-C
DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
WeightApprox. 318 g (0.70 lb.)
Power12 VDC ± 25%, Max. 3.5 W, *You are recommended to use one power adapter to supply the power for one camera.

Approval
ProtectionIP67

Specification

Camera

Image Sensor

3K CMOS

Signal System

PAL/NTSC

Max. Resolution

2960 (H) × 1665 (V)

Min. Illumination

0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

24/7 Color Imaging

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

Lens Type

2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°

Lens Mount

M12

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 40 m


Frame Rate

TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC

Wide Dynamic Range (WDR)

Digital WDR

Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Day/Night Mode

Color

White Balance

Auto/Outdoor/Global/Manual

Image Enhancement

DWDR, BLC, HLC, Global, HLS

Noise Reduction

2D DNR

Image Settings

Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

Alarm

Solid Light Alarm (White Light)

Audio

Built-in mic

General

Language

English

Operating Condition

-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Material

Main body: Metal, Enclosure: Plastic

Communication

HIKVISION-C

Dimension

Φ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")

Weight

Approx. 318 g (0.70 lb.)

Power

12 VDC ± 25%, Max. 3.5 W, *You are recommended to use one power adapter to supply the power for one camera.

Approval

Protection

IP67
