EOL

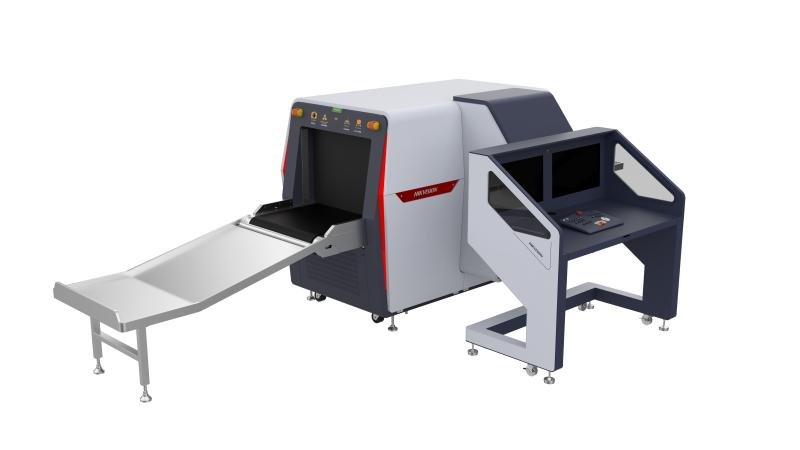

Intelligent X-Ray Security Inspection System

  • Raytina new generation image enhancement engine, using advanced intelligent image imaging algorithm, signal-to-noise ratio optimization obvious imaging more delicate, image clearer, more prominent details.
  • Advanced material properties identification technology can effectively identify the equivalent of atomic number of item(such as metal and organics) and give a different color
  • Intelligent recognition technology is a deep learning recognition algorithm with full independent intellectual property rights, which realizes the integration of intelligent recognition algorithm and X-ray imaging software, and achieves better recognition effect
  • The radiation leakage dose rate is far lower than the relevant international standards
  • The conveyor speed can be adjusted according to the field efficiency to meet the different needs of high efficiency and energy saving
  • Double lead curtain design effectively reduce the radiation lead shade place
  • Supports access to Hik-central, and implement the data upload
  • Support security check machine video, picture, alarm information local and network storage, view,playback
  • Event tracing can organically combine X-ray image with passenger video information to realize human package tracing
  • Supports login with Password and fingerprint authentication,energy saving light barrier sensor, operation training system
  • Brand new appearance and exquisite manufacturing technology, high standard quality control give products high reliability and long life
View Less
View more

Available models:

ISD-SC6550D-4CVL/DZ
ISD-SC6550D-4CVL/DZY
ISD-SC6550D-4CVL
EOL

Specification

  • Dimension Parameters
  • Tunnel Size660mm Wx505 mm H
  • Specification Parameters
  • Max. load150 kg (330.69 lb)
  • Conveyor speed0.2m/s, 0.3m/s, 0.4m/s adjustable
  • Performance Parameters
  • Penetration30mm standard,36 mm typical 40+mm by customize
  • Wire resolution38AWG standard, 40AWG typical
  • Spatial resolution Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")
  • General Standard
  • Power Consumption1 KVA
  • Weight760 kg
  • Radiation Dose
  • X-ray dose per inspection< 10 μGy
  • X-ray leakage< 1 μGy/h
  • Other Parameters
  • X-ray generatorAnode Voltage: 160KV Double generator 100% Oil Cooling, vertical and horizontal beam direction.
  • General
  • Power Supply220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
  • Working Temperature0 °C to 40 ° C (41 °F to 104 °F)
  • Working Humidity0% to 90%
  • Dimension (W × H × D)Main engine appearance dimensions:2454 mm × 1419 mm × 1376mm (L x W x H) Single display professional operation Desk Size:1200 mm × 700 mm × 1142mm (L x W x H)

Specification

Specification
Dimension Parameters
  • Tunnel Size660mm Wx505 mm H
Specification Parameters
  • Max. load150 kg (330.69 lb)
  • Conveyor speed0.2m/s, 0.3m/s, 0.4m/s adjustable
Performance Parameters
  • Penetration30mm standard,36 mm typical 40+mm by customize
  • Wire resolution38AWG standard, 40AWG typical
  • Spatial resolution Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")
General Standard
  • Power Consumption1 KVA
  • Weight760 kg
Radiation Dose
  • X-ray dose per inspection< 10 μGy
  • X-ray leakage< 1 μGy/h
Other Parameters
  • X-ray generatorAnode Voltage: 160KV Double generator 100% Oil Cooling, vertical and horizontal beam direction.
General
  • Power Supply220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
  • Working Temperature0 °C to 40 ° C (41 °F to 104 °F)
  • Working Humidity0% to 90%
  • Dimension (W × H × D)Main engine appearance dimensions:2454 mm × 1419 mm × 1376mm (L x W x H) Single display professional operation Desk Size:1200 mm × 700 mm × 1142mm (L x W x H)

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Applied to:
ISD-SC6550D-4CVL/DZ
ISD-SC6550D-4CVL/DZY
