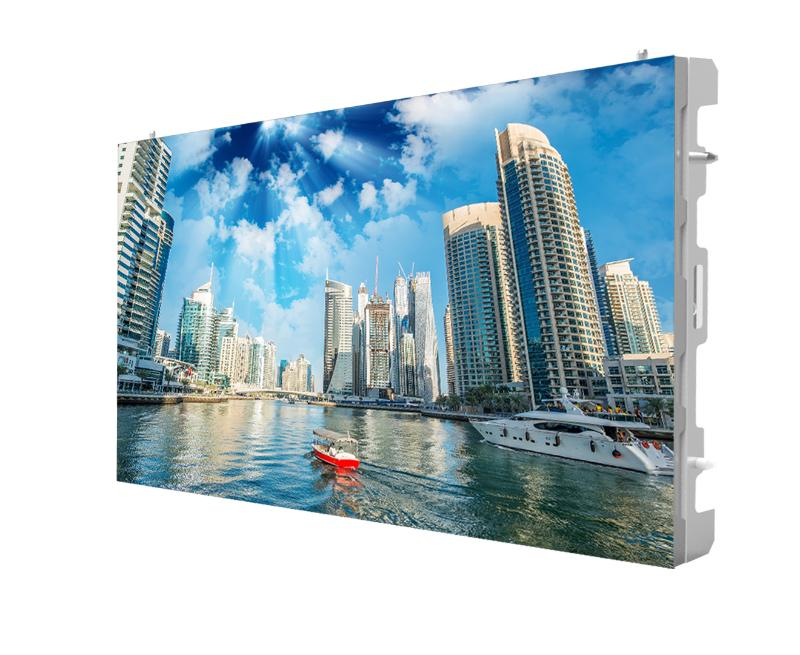

P1.66 Fine Fixel Pitch LED Display Unit

1.6 mm Pixel pitch，achieving good visual effect
16:9 Aspect ratio，supporting popular resolutions
Built-in power board and signal receiving card in unit
Adaptive resolution, no loss of content
Image enhancement for better display
Automatic detection and dehumidification to protect lamp boards from water damage
Low blue display mode to protect eyes
Support IR remote control to adjust parameters
Modular unit structure is easy to install
Support front maintenance mode to replace modules

View Less

Available models:

DS-D4216FI-GWF 600*337.5MM/BOX

DS-D4216FI-GWF

EOL

Specification
Resources
Accessories

Cabinet
Modules component1 × 2
Dimensions600 (W) × 337.5 (H) × 61 (D) mm (23.62 × 13.29 × 2.40 inch)
Resolution360 × 204
Area0.2025 m2
Weight8.3 kg (18.3 lb.)
Pixel density543992 dots/m2
Cabinet materialMagnalium
Maintenance methodFront maintenance for all components. Power supply can be maintained from both front and rear.

Display
White balance brightness600 cd/m2 by default. Up to 800 cd/m2.
Color temperature3000 to 10000 adjustable
Viewing angleHorizontal 160°, vertical 160°
Brightness uniformity≥ 97%
Color uniformity≤ ± 0.003Cx, Cy
Contrast ratio≥ 3000:1

Touch
Pixel pitch1.667 mm

Processing Performance
Driving methodConstant current driving
Frame frequency60 Hz
Refresh rateUp to 3840 Hz
Grey levelUp to 16 bit

Power
Power supply100 to 240 VAC ± 15%

Working Environment
Opration Temperature–10°C to 40°C (14°F to 104°F)
Operation Humidity10% to 80% RH (non-condensing)
Storage humidity–20°C to 60°C (–4°F to 140°F)
Storage temperature10% to 85% RH(non-condensing)

General
Gross weight9.8 kg (21.6 lb. including packaging)
Package dimensions796 × 484 × 192 mm (31.33 × 19.05 × 7.56 inch)

Cabinet

Modules component

1 × 2

Dimensions

600 (W) × 337.5 (H) × 61 (D) mm (23.62 × 13.29 × 2.40 inch)

Resolution

360 × 204

Area

0.2025 m2

Weight

8.3 kg (18.3 lb.)

Pixel density

543992 dots/m2

Cabinet material

Magnalium

Maintenance method

Front maintenance for all components. Power supply can be maintained from both front and rear.

Display

White balance brightness

600 cd/m2 by default. Up to 800 cd/m2.

Color temperature

3000 to 10000 adjustable

Viewing angle

Horizontal 160°, vertical 160°

Brightness uniformity

≥ 97%

Color uniformity

≤ ± 0.003Cx, Cy

Contrast ratio

≥ 3000:1

Touch

Pixel pitch

1.667 mm

Processing Performance

Driving method

Constant current driving

Frame frequency

60 Hz

Refresh rate

Up to 3840 Hz

Grey level

Up to 16 bit

Power

Power supply

100 to 240 VAC ± 15%

Working Environment

Opration Temperature

–10°C to 40°C (14°F to 104°F)

Operation Humidity

10% to 80% RH (non-condensing)

Storage humidity

–20°C to 60°C (–4°F to 140°F)

Storage temperature

10% to 85% RH(non-condensing)

General

Gross weight

9.8 kg (21.6 lb. including packaging)

Package dimensions

796 × 484 × 192 mm (31.33 × 19.05 × 7.56 inch)
