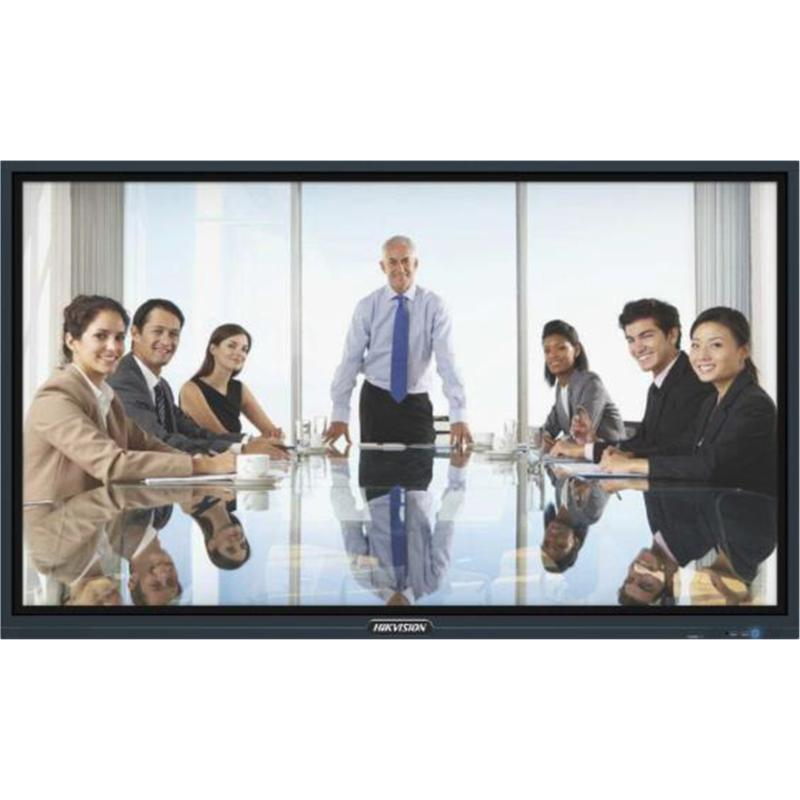

86-inch 4K Interactive Display

  • 4K display, and the resolution of the input signal is up to 3840 × 2160.
  • 20 px ultra fine writing, and 1 mm writing in diameter recognizable.
  • Built-in interactive whiteboard system allows sharing by scanning QR code.
  • Annotating on any interfaces supports 20 people writing at the same time.
  • Built-in Wi-Fi realizes wireless screen mirroring supporting 2/4-split screen without any cable connection.
  • Software and hardware video conferences realize tele-cooperation.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5A86RB/B
DS-D5A86RB/B
EOL
Data Sheet

Specification

  • Product Model
  • Product ModelDS-D5A86RB/B
  • Display
  • Viewing Angle178°(H)/178°(V)
  • Screen Size86 inch LED Backlight
  • BacklightDLED
  • Pixel Pitch0.4935(H) mm × 0.4935(V) mm
  • Resolution3840 × 2160@60 Hz
  • Brightness400 cd/m²
  • Color Depth10 bit
  • Contrast Ratio1200:1 (Typ.)
  • Response Time6 ms
  • Refresh Rate60 Hz
  • Touch
  • Touch TypeInfrared touch screen
  • Touch Point20 point multi-touch
  • Touch Response Time＜ 10 ms
  • Touch Precision±1 mm (≥ 90% touching area)
  • Built-in System
  • Operation SystemAndroid 8.0
  • Processor4-core A73 × 2 + A53 × 2, 1.5 GHz
  • Memory3 GB
  • Built-in Storage32 GB
  • NICBuilt-in 100 Mbps NIC, supporting routing
  • Interface
  • Video & Audio InputHDMI IN × 2, VGA IN × 1, PC AUDIO IN × 1, LINE IN × 1
  • Video & Audio OutputHDMI OUT × 1, LINE OUT × 1, SPDIF OUT × 1, Built-in 16 W speaker × 2
  • Network InterfaceRJ45 (100Mbps ports) × 2
  • Data Transmission Interface2 USB on front panel , 2 USB on rear panel
  • Control InterfaceRS-232 × 1
  • Power
  • Standby Consumption0.5 W
  • Power Consumption< 400 W (full load)
  • Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity10% to 90% RH
  • General
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Gross Weight96 kg (211.64 lb)
  • Net Weight73 kg (160.94 lb)
  • Package Dimensions (W × H × D)2205 mm × 1413 mm × 315 mm (86.81'' × 55.63'' × 12.40'')
  • Product Dimensions (W × H × D)1990 mm × 1186 mm × 117 mm (78.35'' × 46.69'' × 4.61'')
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5A86RB/B
Display
Viewing Angle
178°(H)/178°(V)
Screen Size
86 inch LED Backlight
Backlight
DLED
Pixel Pitch
0.4935(H) mm × 0.4935(V) mm
Resolution
3840 × 2160@60 Hz
Brightness
400 cd/m²
Color Depth
10 bit
Contrast Ratio
1200:1 (Typ.)
Response Time
6 ms
Refresh Rate
60 Hz
Touch
Touch Type
Infrared touch screen
Touch Point
20 point multi-touch
Touch Response Time
＜ 10 ms
Touch Precision
±1 mm (≥ 90% touching area)
Built-in System
Operation System
Android 8.0
Processor
4-core A73 × 2 + A53 × 2, 1.5 GHz
Memory
3 GB
Built-in Storage
32 GB
NIC
Built-in 100 Mbps NIC, supporting routing
Interface
Video & Audio Input
HDMI IN × 2, VGA IN × 1, PC AUDIO IN × 1, LINE IN × 1
Video & Audio Output
HDMI OUT × 1, LINE OUT × 1, SPDIF OUT × 1, Built-in 16 W speaker × 2
Network Interface
RJ45 (100Mbps ports) × 2
Data Transmission Interface
2 USB on front panel , 2 USB on rear panel
Control Interface
RS-232 × 1
Power
Standby Consumption
0.5 W
Power Consumption
< 400 W (full load)
Working Environment
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
10% to 90% RH
General
Power Supply
100 to 240 VAC, 50/60 Hz
Gross Weight
96 kg (211.64 lb)
Net Weight
73 kg (160.94 lb)
Package Dimensions (W × H × D)
2205 mm × 1413 mm × 315 mm (86.81'' × 55.63'' × 12.40'')
Product Dimensions (W × H × D)
1990 mm × 1186 mm × 117 mm (78.35'' × 46.69'' × 4.61'')
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Product Model
  • Product ModelDS-D5A86RB/B
Display
  • Viewing Angle178°(H)/178°(V)
  • Screen Size86 inch LED Backlight
  • BacklightDLED
  • Pixel Pitch0.4935(H) mm × 0.4935(V) mm
  • Resolution3840 × 2160@60 Hz
  • Brightness400 cd/m²
  • Color Depth10 bit
  • Contrast Ratio1200:1 (Typ.)
  • Response Time6 ms
  • Refresh Rate60 Hz
Touch
  • Touch TypeInfrared touch screen
  • Touch Point20 point multi-touch
  • Touch Response Time＜ 10 ms
  • Touch Precision±1 mm (≥ 90% touching area)
Built-in System
  • Operation SystemAndroid 8.0
  • Processor4-core A73 × 2 + A53 × 2, 1.5 GHz
  • Memory3 GB
  • Built-in Storage32 GB
  • NICBuilt-in 100 Mbps NIC, supporting routing
Interface
  • Video & Audio InputHDMI IN × 2, VGA IN × 1, PC AUDIO IN × 1, LINE IN × 1
  • Video & Audio OutputHDMI OUT × 1, LINE OUT × 1, SPDIF OUT × 1, Built-in 16 W speaker × 2
  • Network InterfaceRJ45 (100Mbps ports) × 2
  • Data Transmission Interface2 USB on front panel , 2 USB on rear panel
  • Control InterfaceRS-232 × 1
Power
  • Standby Consumption0.5 W
  • Power Consumption< 400 W (full load)
Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity10% to 90% RH
General
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Gross Weight96 kg (211.64 lb)
  • Net Weight73 kg (160.94 lb)
  • Package Dimensions (W × H × D)2205 mm × 1413 mm × 315 mm (86.81'' × 55.63'' × 12.40'')
  • Product Dimensions (W × H × D)1990 mm × 1186 mm × 117 mm (78.35'' × 46.69'' × 4.61'')
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
