DS-D4460FO

EOL

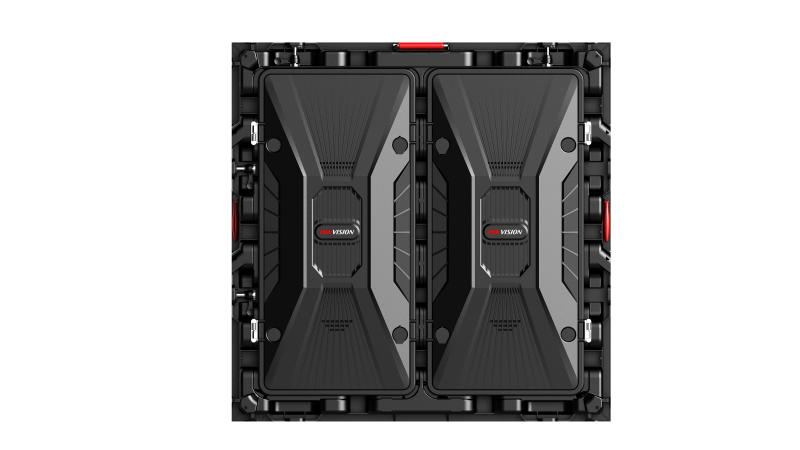

P6 Fixed Outdoor LED Display Unit

  • Widely applied in outdoor permanent advertising scenes
  • Thin and light cabinet with the die-casting aluminum design
  • IP 65 rating for both the front and back panels
  • Free of air conditioners with multiple ventilation modes working together inside the cabinets
  • Rear maintenance available and front maintenance customizable
  • Standing, wall mount, and lifting available for installation
  • Customizable as stadium LED screens
View Less
View more

Available models:

DS-D4460FO
DS-D4460FO,960*960mm@
DS-D4460FO

Specification

  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP6
  • Pixel Pitch6.67 mm
  • Modules Component3 × 6
  • Dimensions (W × H × D)960 mm × 960 mm × 102.5 mm (37.8" × 37.8" × 4.0")
  • Resolution144 × 144
  • Area0.9216 m²
  • Weight29 Kg (63.9 lb)
  • Pixel Density22500 dots/m²
  • Lamp Board HousingWith housing
  • Cabinet MaterialMagnalium
  • Maintenance MethodBack maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP65 both front and back
  • Key Material
  • Lamp EncapsulationNationstar 3535
  • Control SystemDS-D42C04-H、DS-D42C08-H
  • Display
  • White Balance Brightness6000 cd/m²
  • Color Temperature2000 K to 9300 K adjustable
  • Viewing AngleHorizontal 140°, vertical 140°
  • Contrast Ratio≥ 5000:1
  • Color Uniformity≤ ± 0.003Cx,Cy
  • Brightness Uniformity≥ 97%
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh RateUp to 3840 Hz
  • Grey LevelUp to 16 bit
  • Display Color281 trillion
  • Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 850 W/m²
  • Average Consumption< 280 W/m²
  • Working Environment
  • Working Temperature-10-55 ℃
  • Working Humidity10%~80%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60 ℃
  • General
  • Gross Weight145 Kg (320 lb) /4 in 1
  • Package Dimension (W × H × D)1030 mm × 680 mm × 1150 mm (40.6" × 26.8" ×45.3")
  • LifespanLamp 100,000 hours

Specification

Specification
Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP6
  • Pixel Pitch6.67 mm
  • Modules Component3 × 6
  • Dimensions (W × H × D)960 mm × 960 mm × 102.5 mm (37.8" × 37.8" × 4.0")
  • Resolution144 × 144
  • Area0.9216 m²
  • Weight29 Kg (63.9 lb)
  • Pixel Density22500 dots/m²
  • Lamp Board HousingWith housing
  • Cabinet MaterialMagnalium
  • Maintenance MethodBack maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP65 both front and back
Key Material
  • Lamp EncapsulationNationstar 3535
  • Control SystemDS-D42C04-H、DS-D42C08-H
Display
  • White Balance Brightness6000 cd/m²
  • Color Temperature2000 K to 9300 K adjustable
  • Viewing AngleHorizontal 140°, vertical 140°
  • Contrast Ratio≥ 5000:1
  • Color Uniformity≤ ± 0.003Cx,Cy
  • Brightness Uniformity≥ 97%
Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh RateUp to 3840 Hz
  • Grey LevelUp to 16 bit
  • Display Color281 trillion
Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 850 W/m²
  • Average Consumption< 280 W/m²
Working Environment
  • Working Temperature-10-55 ℃
  • Working Humidity10%~80%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60 ℃
General
  • Gross Weight145 Kg (320 lb) /4 in 1
  • Package Dimension (W × H × D)1030 mm × 680 mm × 1150 mm (40.6" × 26.8" ×45.3")
  • LifespanLamp 100,000 hours
