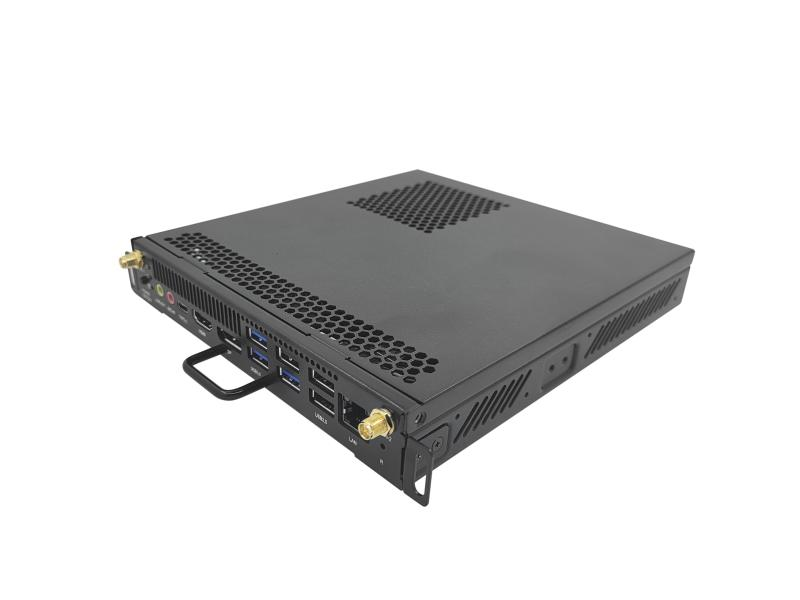

OPS Module

  • Intel UHD Graphic, support H.265 and 4K resolution
  • Support M.2 nvme system disk quick start
  • Support 3 USB 3.0 ports, 3 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port
  • Support dual channel memory
  • Support Wi-Fi IEEE 802.11 a/b/g/n/ac
View Less
View more
Sales Inquiry

Available models:

DS-D5AC9C5-8S2
DS-D5AC9C5-8S2
EOL

Specification

  • Built-in System
  • Processor Intel® Core i5 9400H
  • CPU Clock Speed2.5GHz
  • Platform ArchitectureIntel® Coffeelake
  • PCHIntel® Z370
  • GraphicsIntel® UHD Graphics 630
  • Memory8G
  • Storage256G
  • NICIntegrated 10/100/1000M Adaption
  • Cooling SystemSingle Brass & Single Fan
  • Interface
  • Network InterfaceRJ45×1
  • Data Transmission InterfaceBluetooth 4.2
  • Antenna2
  • Video OutputHDMIx1, DPx1
  • Power
  • Input Voltage12V-19V DC
  • Max. Consumption60W
  • Standby Consumption0.5W
  • Working Environment
  • Storage Temperature-20°C - 60°C
  • Storage Humidity10%-90%
  • Working Temperature0°C - 40°C
  • Working Humidity10%-90%
  • General
  • ColorBlack
  • Product Dimensions (W × H × D)180×195×30mm
  • Net WeightAbout 1.24kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Built-in System
Processor
Intel® Core i5 9400H
CPU Clock Speed
2.5GHz
Platform Architecture
Intel® Coffeelake
PCH
Intel® Z370
Graphics
Intel® UHD Graphics 630
Memory
8G
Storage
256G
NIC
Integrated 10/100/1000M Adaption
Cooling System
Single Brass & Single Fan
Interface
Network Interface
RJ45×1
Data Transmission Interface
Bluetooth 4.2
Antenna
2
Video Output
HDMIx1, DPx1
Power
Input Voltage
12V-19V DC
Max. Consumption
60W
Standby Consumption
0.5W
Working Environment
Storage Temperature
-20°C - 60°C
Storage Humidity
10%-90%
Working Temperature
0°C - 40°C
Working Humidity
10%-90%
General
Color
Black
Product Dimensions (W × H × D)
180×195×30mm
Net Weight
About 1.24kg
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Built-in System
  • Processor Intel® Core i5 9400H
  • CPU Clock Speed2.5GHz
  • Platform ArchitectureIntel® Coffeelake
  • PCHIntel® Z370
  • GraphicsIntel® UHD Graphics 630
  • Memory8G
  • Storage256G
  • NICIntegrated 10/100/1000M Adaption
  • Cooling SystemSingle Brass & Single Fan
Interface
  • Network InterfaceRJ45×1
  • Data Transmission InterfaceBluetooth 4.2
  • Antenna2
  • Video OutputHDMIx1, DPx1
Power
  • Input Voltage12V-19V DC
  • Max. Consumption60W
  • Standby Consumption0.5W
Working Environment
  • Storage Temperature-20°C - 60°C
  • Storage Humidity10%-90%
  • Working Temperature0°C - 40°C
  • Working Humidity10%-90%
General
  • ColorBlack
  • Product Dimensions (W × H × D)180×195×30mm
  • Net WeightAbout 1.24kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
