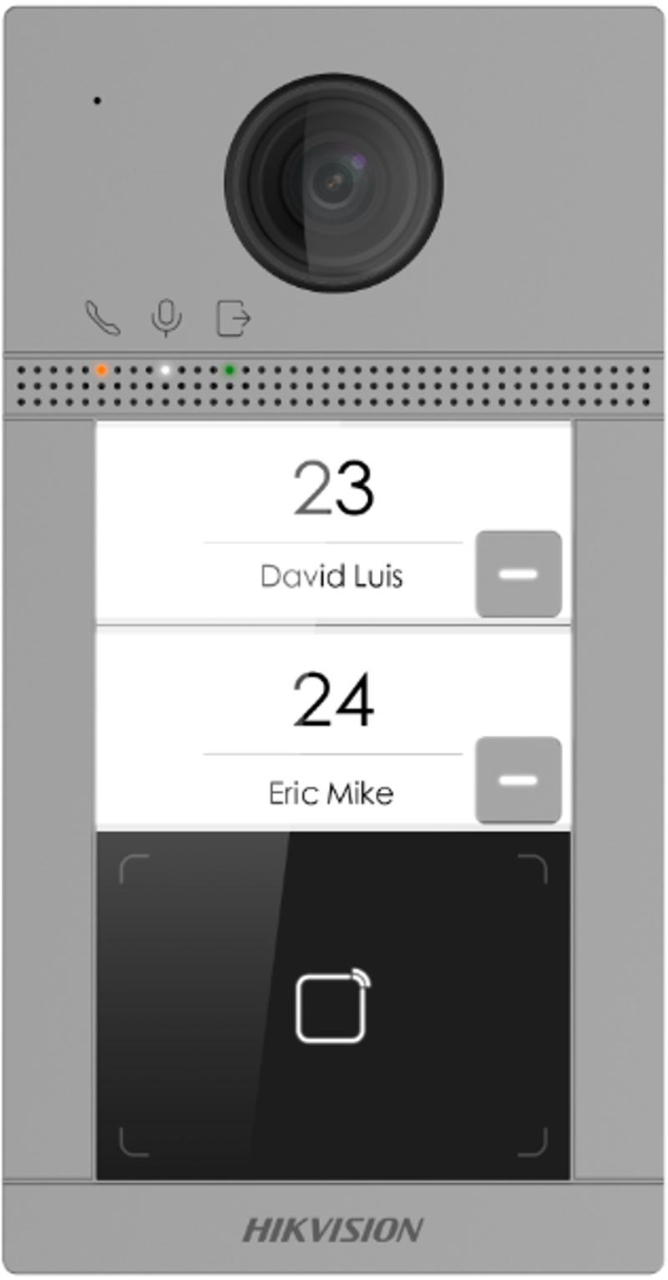

2 Buttons Metal Villa Door Station

  • Support Wifi, convenient setting up and no wiring required
  • Support web configuration
  • Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated;
  • Internal Mifare card reader, 2-ch Indoor station access control;
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/ 12 VDC
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KV8213-WME1
DS-KV8213-WME1
EOL
Data Sheet

Specification

  • System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 M
  • RAM256 M
  • CPUEmbedded MCU Processor
  • Display parameters
  • Screen size/
  • Operation method/
  • Type/
  • Resolution/
  • Video parameters
  • Supplement light Low illumination IR supplement mode:3 m
  • Video standardH.264
  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • WDRSupport
  • Simultaneous live viewUp to 3 channels
  • ResolutionMain stream : 1920 × 1080 Sub stream : 720 × 480
  • Audio parameters
  • Audio compression standardG.711 U
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker (More than 85 dB within 20 cm)
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • Fingerprint capacity/
  • User capacity2000
  • Face capacity/
  • Linked indoor station capacity2
  • Event capacity/
  • Network parameters
  • Communication protocolTCP/IP, RSTP
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
  • 3G/4G/
  • Device interfaces
  • Alarm input4
  • Network interface1
  • TAMPER1
  • Exit button2
  • RS-4851
  • USB/
  • Wiegand/
  • TF card0
  • Alarm output/
  • Lock control2
  • Door contact input2
  • Power interface1
  • General
  • Button2
  • InstallationSurface mounting/ Flush mounting
  • Indicator3
  • Weight385 g
  • Protective levelIP65, IK08
  • Power supply methodIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimensions-40° C to 53° C(-40° F to 127.4° F)
  • Battery/
  • Application environmentOutdoor environment
  • Power consumption＜ 10 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Operating system
Embedded Linux operation system
ROM
32 M
RAM
256 M
CPU
Embedded MCU Processor
Display parameters
Screen size
/
Operation method
/
Type
/
Resolution
/
Video parameters
Supplement light
Low illumination IR supplement mode:3 m
Video standard
H.264
Lens
1
FOV
Horizontal: 129° Vertical: 75°
WDR
Support
Simultaneous live view
Up to 3 channels
Resolution
Main stream : 1920 × 1080 Sub stream : 720 × 480
Audio parameters
Audio compression standard
G.711 U
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker (More than 85 dB within 20 cm)
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
Fingerprint capacity
/
User capacity
2000
Face capacity
/
Linked indoor station capacity
2
Event capacity
/
Network parameters
Communication protocol
TCP/IP, RSTP
Wired network
10/100 Mbps self-adaptive Ethernet
Wi-Fi
/
Bluetooth
/
3G/4G
/
Device interfaces
Alarm input
4
Network interface
1
TAMPER
1
Exit button
2
RS-485
1
USB
/
Wiegand
/
TF card
0
Alarm output
/
Lock control
2
Door contact input
2
Power interface
1
General
Button
2
Installation
Surface mounting/ Flush mounting
Indicator
3
Weight
385 g
Protective level
IP65, IK08
Power supply method
IEEE802.3af, standard PoE 12 VDC
Working temperature
-40° C to +55° C(-40° F to 131° F)
Working humidity
10% to 95%
Dimensions
-40° C to 53° C(-40° F to 127.4° F)
Battery
/
Application environment
Outdoor environment
Power consumption
＜ 10 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 M
  • RAM256 M
  • CPUEmbedded MCU Processor
Display parameters
  • Screen size/
  • Operation method/
  • Type/
  • Resolution/
Video parameters
  • Supplement light Low illumination IR supplement mode:3 m
  • Video standardH.264
  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • WDRSupport
  • Simultaneous live viewUp to 3 channels
  • ResolutionMain stream : 1920 × 1080 Sub stream : 720 × 480
Audio parameters
  • Audio compression standardG.711 U
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker (More than 85 dB within 20 cm)
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
Capacity
  • Fingerprint capacity/
  • User capacity2000
  • Face capacity/
  • Linked indoor station capacity2
  • Event capacity/
Network parameters
  • Communication protocolTCP/IP, RSTP
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
  • 3G/4G/
Device interfaces
  • Alarm input4
  • Network interface1
  • TAMPER1
  • Exit button2
  • RS-4851
  • USB/
  • Wiegand/
  • TF card0
  • Alarm output/
  • Lock control2
  • Door contact input2
  • Power interface1
General
  • Button2
  • InstallationSurface mounting/ Flush mounting
  • Indicator3
  • Weight385 g
  • Protective levelIP65, IK08
  • Power supply methodIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimensions-40° C to 53° C(-40° F to 127.4° F)
  • Battery/
  • Application environmentOutdoor environment
  • Power consumption＜ 10 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.1.35_210406
