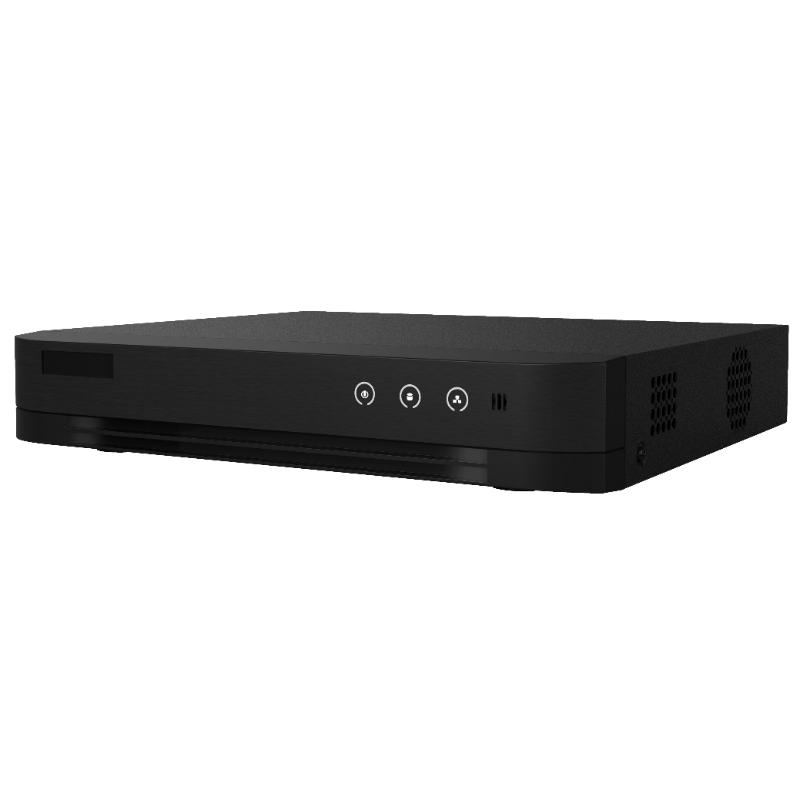

DS-7204HQHI-K1/E
EOL

Specification

  • Recording
  • Encoding resolutionWhen 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Video bit rate32 Kbps to 6 Mbps
  • Frame rateMain stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
  • HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS outputN/A
  • HDMI/VGA outputHDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceN/A
  • USB interface2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
  • General
  • Consumption(without HDD)≤ 5 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weights (without HDD)≤ 1.6 kg (3.5 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Recording
Encoding resolution
When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video bit rate
32 Kbps to 6 Mbps
Frame rate
Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual stream
Support
Stream type
Video, Video & Audio
Audio compression
G.711u
Audio bit rate
64 Kbps
Video and Audio
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
Audio output
1-ch, RCA (Linear, 1 KΩ)
Synchronous playback
4-ch
IP video input
1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
HDCVI input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input
PAL/NTSC
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog video input
4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS output
N/A
HDMI/VGA output
HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote connections
32
Network interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
Capacity
Up to 10 TB capacity for each disk
Serial interface
N/A
USB interface
2 × USB 2.0
Alarm in/out
N/A
SATA
1 SATA interface
General
Consumption(without HDD)
≤ 5 W
Working humidity
10% to 90%
Power supply
12 VDC
Working temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)
265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weights (without HDD)
≤ 1.6 kg (3.5 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Recording
  • Encoding resolutionWhen 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Video bit rate32 Kbps to 6 Mbps
  • Frame rateMain stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
  • HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS outputN/A
  • HDMI/VGA outputHDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceN/A
  • USB interface2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
General
  • Consumption(without HDD)≤ 5 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weights (without HDD)≤ 1.6 kg (3.5 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_Asia_V4.30.210_210111
Firmware_V4.30.210_210111
Applied to:
DS-7204HQHI-K1/E(S)
