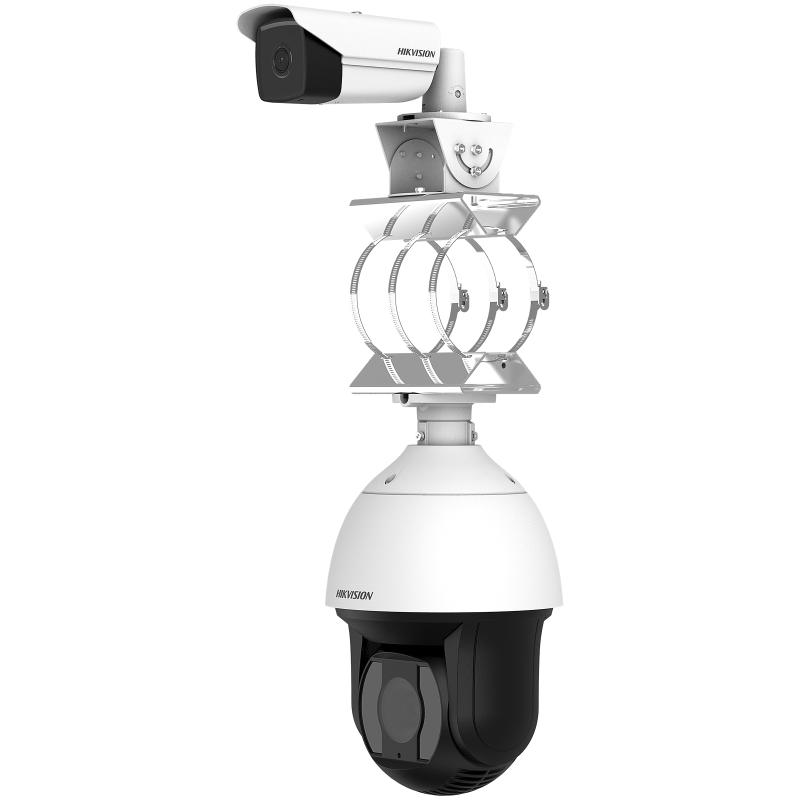

Thermal Smart Linkage Tracking System

High sensitivity thermal module with 384 × 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Speed Dome supports 36x optical zoom with over 200 m IR distance
Smart analysis and linkage, no VCA server configuration required
Automatic master-slave tracking: Stable and continuous
Track up to 30 targets simultaneously with up to 150 m effective detecting distance (on human targets)
Target multi-tracking and auto-switch, with less than 1-second response time

View Less

Data Sheet

Available models:

DS-2TX3636-25P/V1

DS-2TX3636-25P/V1 ^Discontinued
