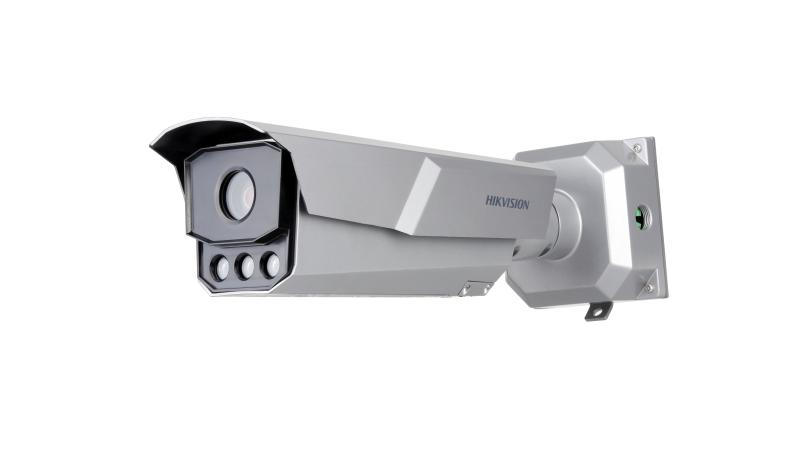

2 MP Traffic Flow Camera

1/1.8” progressive scan CMOS;
50 Hz: 1920 × 1080 @ 50 fps,60 Hz: 1920 × 1080 @ 60 fps;
Color: 0.001 Lux @ (F1.2, AGC ON), 0.0005 Lux with IR;
H.265, H.264, MJPEG;
120 dB WDR, 3D DNR;
IR range up to 50 m;
Data type: lane flow/average vehicle speed/time headway/space headway/time occupancy/space occupancy/lane queue length/vehicle type (large, small, motorcycle)/lane traffic status (smooth, slow, congestion)/congestion level.

View Less

Data Sheet

Available models:

iDS-TCD203-A/0832(850nm)

iDS-TCD203-A

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8″ progressive scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON), 0.0005 Lux with IR
Shutter Time1/25 s to 1/100,000 s
Slow ShutterSupported
Day & NightIR cut filter

Lens
Focal Length & FOV8-32 mm Horizontal FOV: 114.7° to 41.9°; Vertical FOV: 59.4° to 23.6°; Diagonal FOV: 141.5° to 48.1°
Focus Auto
Iris TypeDC drive
ApetureF1.6-1.65

Illuminator
Built-in Supplement Light RangeUp to 50 m
IR Wavelength850 nm

Video
Main Stream50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 60 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Sub Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG;H.264 and H.265 encoding
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeBaseline profile/Main profile/High profile

Audio
Audio Compression G.711/G.722.1
Audio Bit Rate8 Kbps (G.711) /16 Kbps (G.722.1)

Network
ProtocolsTCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
Network StorageMicro SD/TF card (128 GB), local storage and CVR, NVR, ANR
ClientiVMS-8600
Web BrowserIE7+

Image SettingsRotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
Day/Night SwitchAuto/Scheduled/Triggered by alarm in
Wide Dynamic Range (WDR)120 dB
Image Enhancement3D DNR

Supplement Detection (Satellite Positioning)
Satellite PositioningOptional

Interface
Video OutputNetwork
Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
On-board StorageBuilt-in microSD/TF card, up to 128 GB
AudioSupported
Alarm 2 input interfaces, 2 output interfaces
RS-4852 RS-485 interfaces
RS-2321 RS-232 port
Reset KeySupported

Road Traffic and Vehicle Detection
Smart FunctionVehicle counting, traffic monitoring, traffic status release;Large/Small/Motorcycle
Accuracy (Under recommended installation and lighting conditions)Vehicle counting accuracy > 95%

General
Firmware VersionV4.2.2
Operating SystemLinux
Power12 VDC to 24 VDC ± 20%;Max. 15 W
MaterialAluminum alloy
Dimension120 × 132.8 × 428.5 mm (4.72 × 5.23 × 16.87 inch)
Weight 3.12 ± 0.5 kg (6.88 ± 1.1 lb)
Operating ConditionTemperature: -30 °C to +70 °C (-22 °F to +158 °F) Humidity: 95% or less (non-condensing)
General FunctionOne-key reset, three streams, heartbeat, password protection, watermark

Approval
EMCCE, FCC
EnvironmentRoHS
ProtectionIP67, IK10

Camera

Image Sensor

1/1.8″ progressive scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON), 0.0005 Lux with IR

Shutter Time

1/25 s to 1/100,000 s

Slow Shutter

Supported

Day & Night

IR cut filter

Lens

Focal Length & FOV

8-32 mm Horizontal FOV: 114.7° to 41.9°; Vertical FOV: 59.4° to 23.6°; Diagonal FOV: 141.5° to 48.1°

Focus

Auto

Iris Type

DC drive

Apeture

F1.6-1.65

Illuminator

Built-in Supplement Light Range

Up to 50 m

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 60 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

Sub Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

Third Stream

50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG;H.264 and H.265 encoding

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile/Main profile/High profile

H.265 Type

Baseline profile/Main profile/High profile

Audio

Audio Compression

G.711/G.722.1

Audio Bit Rate

8 Kbps (G.711) /16 Kbps (G.722.1)

Network

Protocols

TCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP

Simultaneous Live View

Up to 6 channels

API

ONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)

Network Storage

Micro SD/TF card (128 GB), local storage and CVR, NVR, ANR

Client

iVMS-8600

Web Browser

IE7+


Image Settings

Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.

Day/Night Switch

Auto/Scheduled/Triggered by alarm in

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

3D DNR

Supplement Detection (Satellite Positioning)

Satellite Positioning

Optional

Interface

Video Output

Network

Ethernet Interface

1 RJ45 10M/100M/1000M Ethernet interface

On-board Storage

Built-in microSD/TF card, up to 128 GB

Audio

Supported

Alarm

2 input interfaces, 2 output interfaces

RS-485

2 RS-485 interfaces

RS-232

1 RS-232 port

Reset Key

Supported

Road Traffic and Vehicle Detection

Smart Function

Vehicle counting, traffic monitoring, traffic status release;Large/Small/Motorcycle

Accuracy (Under recommended installation and lighting conditions)

Vehicle counting accuracy > 95%

General

Firmware Version

V4.2.2

Operating System

Linux

Power

12 VDC to 24 VDC ± 20%;Max. 15 W

Material

Aluminum alloy

Dimension

120 × 132.8 × 428.5 mm (4.72 × 5.23 × 16.87 inch)

Weight

3.12 ± 0.5 kg (6.88 ± 1.1 lb)

Operating Condition

Temperature: -30 °C to +70 °C (-22 °F to +158 °F) Humidity: 95% or less (non-condensing)

General Function

One-key reset, three streams, heartbeat, password protection, watermark

Approval

EMC

CE, FCC

Environment

RoHS

Protection

IP67, IK10
