iDS-2CD9136-AIS

EOL

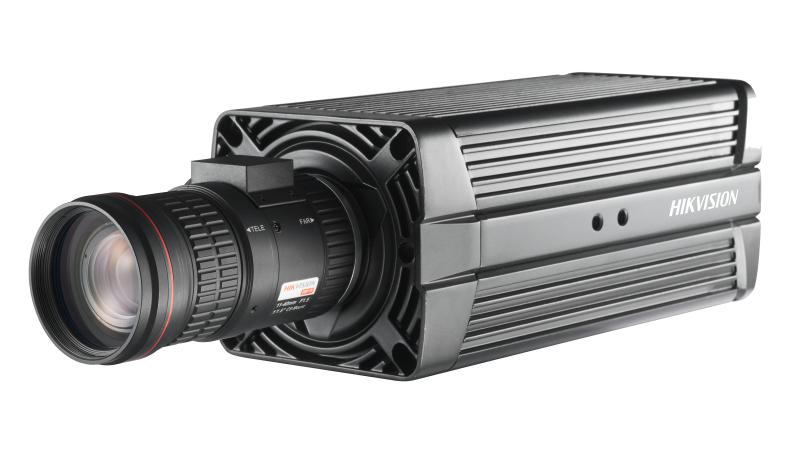

3 MP IR GMOS ANPR Capture Camera

3 MP (1/1.8'' GMOS), max. 2064 × 1544
Supports infrared mode
Built-in ANPR engine, equipped with deep learning algorithm, no-plate vehicle capture
Multiple detection and recognition: vehicle type recognition / vehicle color recognition / vehicle manufacturer / radar speed measurement / vehicle driving direction
Illegal violation detection (intersection violation mode): running the red light, wrong-way driving, illegal lane change, solid line driving, driving in wrong lane at intersection, illegal U-turn detection
H.265 / H.264 / MJPEG.

View Less

Available models:

iDS-2CD9136-AIS

Software Features and Performance
Working DistanceUp to 35 m (with 11 to 40 mm focal length)
Coverage1 lane
Detection Sensitivity0.99
LPR Accuracy> 97%
LPR RegionMid-East, Africa, Asia-Pacific, India, America, Europe, Russian-Speaking Countries, UK
Supplement LightStrobe light/Xenon flash light
OCROn-board ANPR engine
Frame rate50 fps
Vehicle TypeCar/Van/Bus/Truck/Others
Vehicle ColorRecognizable at daytime only
Vehicle ManufacturerSupport
Capture Speed Range5 to 250 km/h
Video CompressionH.265/H.264/MJPEG
StreamingRTSP

Configuration
Web ServerSupport
TCP/IP ServerSDK
Time SynchronizationNTP/GPS/Manually
Software UpdateWeb/SDK

Data Transmission
FTPFTP, Multiple FTP
Standard ProtocolsTCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Serial Port3 RS-485 ports, 1 RS-232 port
Data OutputSDK/ISAPI

System
ANPR Camera3 MP (1/1.8'' GMOS), max. 2064 × 1544
Programming InterfaceONVIF (Version 2.1), ISAPI
LensCS-Mount, 11 to 40 mm horizontal field: 36.7~11.5°,vertical field:23.9°~7.6°,C-Mount (with adapter ring needed)
Operating SystemLinux
Digital I/O4-ch inputs, 6-ch outputs
Communication Interface2 RJ45 10M/100M/1000M self-adaptive Ethernet interfaces
StorageTF card, up to 128 GB
GPSOptional

Technical Data
CertificationsCE, FCC
Operating & Storage Temperature-30 °C to +70 °C(-22 °F to +158 °F),-30 °C ~ 70 °C(-22°F to +158°F )
Operating & Storage Humidity5% to 95%@+40 °C (+104 °F), non-condensing
Power Supply12-24V DC
Power Consumption< 30 W

Trigger Mode
By VideoContinuous video analysis with automatic vehicle detection, even without plate.
By External InterfacesI/O, RS-485

Specification

Software Features and Performance

Working Distance

Up to 35 m (with 11 to 40 mm focal length)

Coverage

1 lane

Detection Sensitivity

0.99

LPR Accuracy

> 97%

LPR Region

Mid-East, Africa, Asia-Pacific, India, America, Europe, Russian-Speaking Countries, UK

Supplement Light

Strobe light/Xenon flash light

OCR

On-board ANPR engine

Frame rate

50 fps

Vehicle Type

Car/Van/Bus/Truck/Others

Vehicle Color

Recognizable at daytime only

Vehicle Manufacturer

Support

Capture Speed Range

5 to 250 km/h

Video Compression

H.265/H.264/MJPEG

Streaming

RTSP

Configuration

Web Server

Support

TCP/IP Server

SDK

Time Synchronization

NTP/GPS/Manually

Software Update

Web/SDK

Data Transmission

FTP

FTP, Multiple FTP

Standard Protocols

TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP

Serial Port

3 RS-485 ports, 1 RS-232 port

Data Output

SDK/ISAPI

System

ANPR Camera

3 MP (1/1.8'' GMOS), max. 2064 × 1544

Programming Interface

ONVIF (Version 2.1), ISAPI

Lens

CS-Mount, 11 to 40 mm horizontal field: 36.7~11.5°,vertical field:23.9°~7.6°,C-Mount (with adapter ring needed)

Operating System

Linux

Digital I/O

4-ch inputs, 6-ch outputs

Communication Interface

2 RJ45 10M/100M/1000M self-adaptive Ethernet interfaces

Storage

TF card, up to 128 GB

GPS

Optional

Technical Data

Certifications

CE, FCC

Operating & Storage Temperature

-30 °C to +70 °C(-22 °F to +158 °F),-30 °C ~ 70 °C(-22°F to +158°F )

Operating & Storage Humidity

5% to 95%@+40 °C (+104 °F), non-condensing

Power Supply

12-24V DC

Power Consumption

< 30 W

Trigger Mode

By Video

Continuous video analysis with automatic vehicle detection, even without plate.

By External Interfaces

I/O, RS-485
