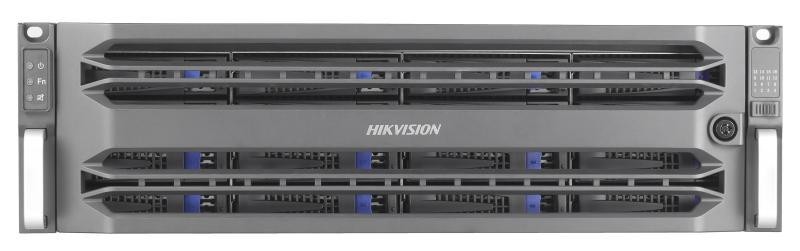

16-slot Cost-efficient Super Capacity Storage

  • 16*20 TB IoT SMR enterprise HDD
  • IoT fully sealed helium HDD technology
  • Surveillance-specialized direct storage (Direct Streaming mode)
  • Highly cost efficient, safe and reliable
  • Energy saving and space saving
  • Easy operation and maintenance
  • SMR HDD providing 5-year warranty
View Less
View more
Sales Inquiry

Available models:

DS-AT1000S/320
DS-AT1000S/320
EOL

Specification

  • Hardware
  • Cache12 GB, extendable to 32 GB
  • Processor64-bit multi-core processor
  • Storage Management
  • Disk managementDisk detection, pre-alarm, and repair
  • Logical volume managementRecording volume management
  • Recording Management
  • Recording modeContinuous recording, manual recording, and alarm recording
  • Video protectionVideo lock, video loss alarm
  • Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
  • Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
  • Network
  • ProtocolRTSP;ONVIF;HKSDK
  • Device Maintenance
  • Management modeGUI based on web, serial port CLI, platform
  • Alarm modeAudio, indicator, GUI
  • Storage
  • HDD slot16
  • Interface/capacitySATA, Up to 20TB
  • RAIDRAID5, RAID6, iRAID
  • Performance
  • Video performance256
  • Picture performance50
  • Direct streaming mode: video (2 Mbps) + picture256-ch
  • General
  • Power supply100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
  • Consumption (with HDDs)≤ 255 W
  • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
  • Dimension (W × H × D)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
  • Weight (without HDDs)≤20kg (44.1 lb)
  • External interface
  • USB2, USB 3.0
  • Data network interface3, 1000 Mbps Ethernet interface
  • MiniSAS interface2
  • COM1, RS-232
  • Management network interface1, 1000 Mbps Ethernet interface
  • HDD
  • HDD ModelHikvision,HK7220AH,20T
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware
Cache
12 GB, extendable to 32 GB
Processor
64-bit multi-core processor
Storage Management
Disk management
Disk detection, pre-alarm, and repair
Logical volume management
Recording volume management
Recording Management
Recording mode
Continuous recording, manual recording, and alarm recording
Video protection
Video lock, video loss alarm
Searching mode
Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Downloading mode
Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Network
Protocol
RTSP;ONVIF;HKSDK
Device Maintenance
Management mode
GUI based on web, serial port CLI, platform
Alarm mode
Audio, indicator, GUI
Storage
HDD slot
16
Interface/capacity
SATA, Up to 20TB
RAID
RAID5, RAID6, iRAID
Performance
Video performance
256
Picture performance
50
Direct streaming mode: video (2 Mbps) + picture
256-ch
General
Power supply
100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
Consumption (with HDDs)
≤ 255 W
Environment temperature
Working: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Environment humidity
Working: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
Dimension (W × H × D)
486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
Weight (without HDDs)
≤20kg (44.1 lb)
External interface
USB
2, USB 3.0
Data network interface
3, 1000 Mbps Ethernet interface
MiniSAS interface
2
COM
1, RS-232
Management network interface
1, 1000 Mbps Ethernet interface
HDD
HDD Model
Hikvision,HK7220AH,20T
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Hardware
  • Cache12 GB, extendable to 32 GB
  • Processor64-bit multi-core processor
Storage Management
  • Disk managementDisk detection, pre-alarm, and repair
  • Logical volume managementRecording volume management
Recording Management
  • Recording modeContinuous recording, manual recording, and alarm recording
  • Video protectionVideo lock, video loss alarm
  • Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
  • Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Network
  • ProtocolRTSP;ONVIF;HKSDK
Device Maintenance
  • Management modeGUI based on web, serial port CLI, platform
  • Alarm modeAudio, indicator, GUI
Storage
  • HDD slot16
  • Interface/capacitySATA, Up to 20TB
  • RAIDRAID5, RAID6, iRAID
Performance
  • Video performance256
  • Picture performance50
  • Direct streaming mode: video (2 Mbps) + picture256-ch
General
  • Power supply100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
  • Consumption (with HDDs)≤ 255 W
  • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
  • Dimension (W × H × D)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
  • Weight (without HDDs)≤20kg (44.1 lb)
External interface
  • USB2, USB 3.0
  • Data network interface3, 1000 Mbps Ethernet interface
  • MiniSAS interface2
  • COM1, RS-232
  • Management network interface1, 1000 Mbps Ethernet interface
HDD
  • HDD ModelHikvision,HK7220AH,20T
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
