DS-2DF6225X-AEL

    EOL

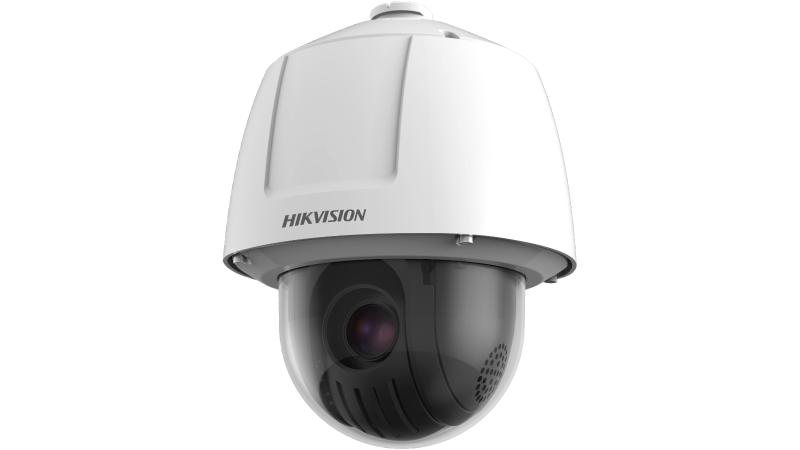

    6-inch 2 MP 25X DarkFighter Network Speed Dome

    • High quality imaging with 2 MP resolution
    • Excellent low-light performance via DarkFighter technology
    • 25x optical zoom provides close up views over expansive areas
    • Intelligent functions based on deep learning
    • Water and dust resistant (IP67) and vandal proof (IK10).

    View Less
    View more

    Available models:

    DS-2DF6225X-AEL(B)

    Specification

    • Lens
    • FOVHorizontal field of view: 59.8° to 2.8° (wide-tele),Vertical field of view: 33.6° to 1.6° (wide-tele),Diagonal field of view: 68.6° to 3.2° (wide-tele)
    • Zoom SpeedApprox. 3.7 s (optical lens, wide-tele)
    • Working Distance10 mm to 1500 mm (wide-tele)
    • Aperture RangeF1.5 to F3.4
    • Focal Length5.7 mm to 142.5 mm, 25× optical zoom
    • Image
    • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
    • Max. Resolution1920 × 1080
    • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
    • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),
    • Compression Standard
    • SVCYes
    • Camera Module
    • Image Sensor1/1.9" progressive scan CMOS
    • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
    • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
    • Shutter Time1/1 s to 1/30,000 s
    • Day & NightIR Cut Filter
    • Digital Zoom16×
    • Privacy Mask24 programmable polygon privacy masks
    • Focus ModeAuto/Semi-automatic/Manual
    • WDR120 dB
    • Rapid FocusYes
    • PTZ
    • Movement Range (Pan)360° endless
    • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
    • Movement Range (Tilt)From -15° to 90°
    • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
    • Proportional ZoomYes
    • Presets300
    • Patrol Scan8 patrols, up to 32 presets for each patrol
    • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
    • Power-off MemoryYes
    • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
    • 3D PositioningYes
    • PTZ Status DisplayYes
    • Preset FreezingYes
    • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Lens
    FOV
    Horizontal field of view: 59.8° to 2.8° (wide-tele),Vertical field of view: 33.6° to 1.6° (wide-tele),Diagonal field of view: 68.6° to 3.2° (wide-tele)
    Zoom Speed
    Approx. 3.7 s (optical lens, wide-tele)
    Working Distance
    10 mm to 1500 mm (wide-tele)
    Aperture Range
    F1.5 to F3.4
    Focal Length
    5.7 mm to 142.5 mm, 25× optical zoom
    Sub-Stream
    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
    Max. Resolution
    1920 × 1080
    Main Stream
    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
    Third Stream
    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),
    Compression Standard
    SVC
    Yes
    Camera Module
    Image Sensor
    1/1.9" progressive scan CMOS
    Min. Illumination
    Color: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
    White Balance
    Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
    Shutter Time
    1/1 s to 1/30,000 s
    Day & Night
    IR Cut Filter
    Digital Zoom
    16×
    Privacy Mask
    24 programmable polygon privacy masks
    Focus Mode
    Auto/Semi-automatic/Manual
    WDR
    120 dB
    Rapid Focus
    Yes
    PTZ
    Movement Range (Pan)
    360° endless
    Pan Speed
    Configurable, from 0.1°/s to 300°/s, preset speed: 540°/s
    Movement Range (Tilt)
    From -15° to 90°
    Tilt Speed
    Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
    Proportional Zoom
    Yes
    Presets
    300
    Patrol Scan
    8 patrols, up to 32 presets for each patrol
    Pattern Scan
    4 pattern scans, record time over 10 minutes for each scan
    Power-off Memory
    Yes
    Park Action
    Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
    3D Positioning
    Yes
    PTZ Status Display
    Yes
    Preset Freezing
    Yes
    Scheduled Task
    Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Lens
    • FOVHorizontal field of view: 59.8° to 2.8° (wide-tele),Vertical field of view: 33.6° to 1.6° (wide-tele),Diagonal field of view: 68.6° to 3.2° (wide-tele)
    • Zoom SpeedApprox. 3.7 s (optical lens, wide-tele)
    • Working Distance10 mm to 1500 mm (wide-tele)
    • Aperture RangeF1.5 to F3.4
    • Focal Length5.7 mm to 142.5 mm, 25× optical zoom
    • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
    • Max. Resolution1920 × 1080
    • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
    • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),
    Compression Standard
    • SVCYes
    Camera Module
    • Image Sensor1/1.9" progressive scan CMOS
    • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
    • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
    • Shutter Time1/1 s to 1/30,000 s
    • Day & NightIR Cut Filter
    • Digital Zoom16×
    • Privacy Mask24 programmable polygon privacy masks
    • Focus ModeAuto/Semi-automatic/Manual
    • WDR120 dB
    • Rapid FocusYes
    PTZ
    • Movement Range (Pan)360° endless
    • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
    • Movement Range (Tilt)From -15° to 90°
    • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
    • Proportional ZoomYes
    • Presets300
    • Patrol Scan8 patrols, up to 32 presets for each patrol
    • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
    • Power-off MemoryYes
    • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
    • 3D PositioningYes
    • PTZ Status DisplayYes
    • Preset FreezingYes
    • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Firmware

    Firmware_V5.6.0_190130
    PTZ Camera V5.6.0 Release Note --H3
    Applied to:
    DS-2DF6225X-AEL(B)
