DS-2DY5223IW-AE

EOL

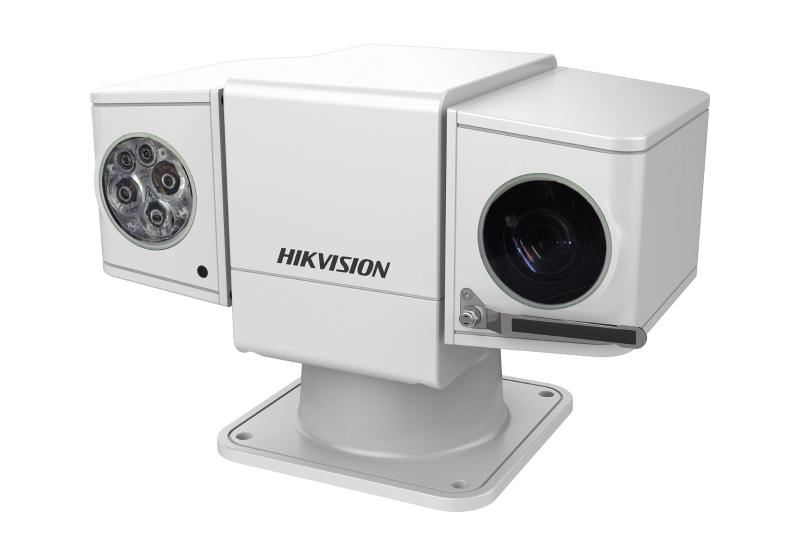

5-inch 2 MP 23X DarkFighter IR Network Positioning System

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Covering a vertical area with tilt angle from -90° to 90°
23x optical zoom provides close up views over expansive areas

View Less

Available models:

DS-2DY5223IW-AE

Lens
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.5 to F3.4
Focal Length5.9-135.7mm, 23X
Field of View59.8°-3.0°(Wide-Tele)

Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 720)
SVCYes

Network
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Alarm7-ch alarm input/2-ch alarm output

Interface
Audio Input 1-ch audio input
Audio Output 1-ch audio output
Network Interface1 RJ45 10 M/100 M Ethernet Interface
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-AI2daptive
CVBS1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

Compression Standard
H.264+Yes
H.265+Yes
Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

IR
IR Distance150 m
Smart IRYes
IR IntensityAutomatically adjusted, depending on the zoom ratio

Smart Feature
Event DetectionFace detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection
ROISupport 12 areas with adjustable levels

Camera Module
3D DNRYes
Image Sensor1/1.9" Progressive Scan CMOS
Min. IlluminationColor：0.002Lux @ (F1.5, AGC ON),B/W：0.0002Lux @(F1.5, AGC ON)
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time1/1 s to 1/10,000 s
Day & NightICR
Digital Zoom16×
Privacy MaskYes
Focus ModeAuto/Semi-automatic/Manual
WDRtrue WDR
BLCYes
DefogYes

PTZ
Movement Range (Pan)360° endless
Pan Speed0.1°/s to 200°/s
Movement Range (Tilt)From -90° to 90°
Tilt Speed0.1°/s to 50°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memorysupport
Park Actionsupport
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes

General
Dimensions306 mm×167 mm×212 mm
WeightApprox. 7.8 kg
Protection LevelIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
PowerHi-PoE&24 VAC, Max. 45W
Working Environment- 40°C to 65°C (-22°F to 149°F), Humidity: ≤ 95%

Specification

Lens

Working Distance

10 mm to 1500 mm (wide-tele)

Aperture Range

F1.5 to F3.4

Focal Length

5.9-135.7mm, 23X

Field of View

59.8°-3.0°(Wide-Tele)


Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 720)

SVC

Yes

Network

Protocols

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

API

ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Alarm

7-ch alarm input/2-ch alarm output

Interface

Audio Input

1-ch audio input

Audio Output

1-ch audio output

Network Interface

1 RJ45 10 M/100 M Ethernet Interface

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-AI2daptive

CVBS

1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

Compression Standard

H.264+

Yes

H.265+

Yes

Video Compression

H.265+/H.265/H.264+/H.264/MJPEG

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

IR Distance

150 m

Smart IR

Yes

IR Intensity

Automatically adjusted, depending on the zoom ratio

Smart Feature

Event Detection

Face detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection

ROI

Support 12 areas with adjustable levels

Camera Module

3D DNR

Yes

Image Sensor

1/1.9" Progressive Scan CMOS

Min. Illumination

Color：0.002Lux @ (F1.5, AGC ON),B/W：0.0002Lux @(F1.5, AGC ON)

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Gain

Auto/Manual

Shutter Time

1/1 s to 1/10,000 s

Day & Night

ICR

Digital Zoom

16×

Privacy Mask

Yes

Focus Mode

Auto/Semi-automatic/Manual

WDR

true WDR

BLC

Yes

Defog

Yes

PTZ

Movement Range (Pan)

360° endless

Pan Speed

0.1°/s to 200°/s

Movement Range (Tilt)

From -90° to 90°

Tilt Speed

0.1°/s to 50°/s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

support

Park Action

support

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

General

Dimensions

306 mm×167 mm×212 mm

Weight

Approx. 7.8 kg

Protection Level

IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Power

Hi-PoE&24 VAC, Max. 45W

Working Environment

- 40°C to 65°C (-22°F to 149°F), Humidity: ≤ 95%
