EOL

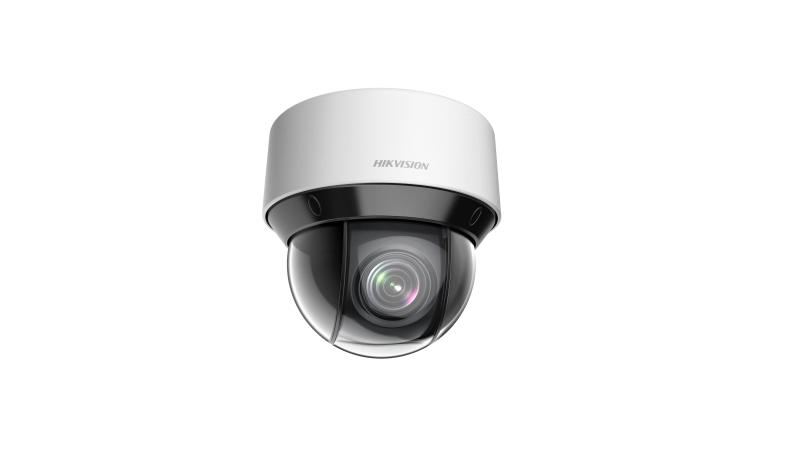

4-inch 2 MP 4X DarkFighter IR Network Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 50m IR range ensures safety at night
  • Water and dust resistant (IP66)
View Less
View more

Available models:

DS-2DE4A204IW-DE(2.8-12mm)

Specification

  • Smart Features
  • Smart DetectionIntrusion detection, line crossing detection, region entrance detection, region exiting detection
  • Smart TrackingYes
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support two fixed areas.
  • Lens
  • FOVHorizontal field of view:83°~31° (Wide~Tele) Vertical field of view:45°~18°(Wide~Tele) Diagonal field of view:98°~36°(Wide~Tele)
  • Zoom SpeedApprox. 2.2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F2.8
  • Focal Length2.8 mm to 12 mm, 4× Optical
  • Image
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200
  • Web BrowserIE7+, Chrome18+, Firefox5.0+, Safari5.02+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Interface
  • Alarm Output2-ch alarm output
  • Alarm Input2-ch alarm input
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
  • StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR
  • Compression Standard
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG,H.264 with Baseline/Main/High Profile
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • SVCSupport
  • Camera Module
  • 3D DNRSupport
  • AGCAuto/Manual
  • Regional ExposureSupport
  • Regional FocusSupport
  • Image Sensor1/1.9" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.6, AGC ON),B/W: 0.0002Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDRSupport
  • BLCSupport
  • Supplement Light
  • IR DistanceUp to 50 m
  • IR IntensityAutomatically adjusted, depending on the zoom ratio
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, Preset Speed: 350°/s
  • Movement Range (Tilt)From -5° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 160°/s, Preset Speed: 200°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
  • General
  • DimensionsΦ 169 mm × 161 mm (Φ6.65" × 6.34")
  • WeightApprox. 2.45 kg (5.40 lb)
  • Protection LevelIP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power12 VDC and PoE+ (802.3at, class4),Max.: 18 W (IR light 5 W Max.)
  • Working TemperatureWorking Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F)
  • Working HumidityWorking Humidity: ≤ 90%
  • InstallationVariable installation methods optional, including ceiling mounting (default), in-ceiling mounting, pendant mounting and wall mounting

Specification

Specification
Smart Features
  • Smart DetectionIntrusion detection, line crossing detection, region entrance detection, region exiting detection
  • Smart TrackingYes
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support two fixed areas.
Lens
  • FOVHorizontal field of view:83°~31° (Wide~Tele) Vertical field of view:45°~18°(Wide~Tele) Diagonal field of view:98°~36°(Wide~Tele)
  • Zoom SpeedApprox. 2.2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F2.8
  • Focal Length2.8 mm to 12 mm, 4× Optical
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200
  • Web BrowserIE7+, Chrome18+, Firefox5.0+, Safari5.02+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Interface
  • Alarm Output2-ch alarm output
  • Alarm Input2-ch alarm input
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
  • StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR
Compression Standard
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG,H.264 with Baseline/Main/High Profile
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • SVCSupport
Camera Module
  • 3D DNRSupport
  • AGCAuto/Manual
  • Regional ExposureSupport
  • Regional FocusSupport
  • Image Sensor1/1.9" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.6, AGC ON),B/W: 0.0002Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDRSupport
  • BLCSupport
Supplement Light
  • IR DistanceUp to 50 m
  • IR IntensityAutomatically adjusted, depending on the zoom ratio
PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, Preset Speed: 350°/s
  • Movement Range (Tilt)From -5° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 160°/s, Preset Speed: 200°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
General
  • DimensionsΦ 169 mm × 161 mm (Φ6.65" × 6.34")
  • WeightApprox. 2.45 kg (5.40 lb)
  • Protection LevelIP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power12 VDC and PoE+ (802.3at, class4),Max.: 18 W (IR light 5 W Max.)
  • Working TemperatureWorking Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F)
  • Working HumidityWorking Humidity: ≤ 90%
  • InstallationVariable installation methods optional, including ceiling mounting (default), in-ceiling mounting, pendant mounting and wall mounting

Download Center

Firmware

Applied to:
DS-2DE4A204IW-DE(2.8-12mm)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
