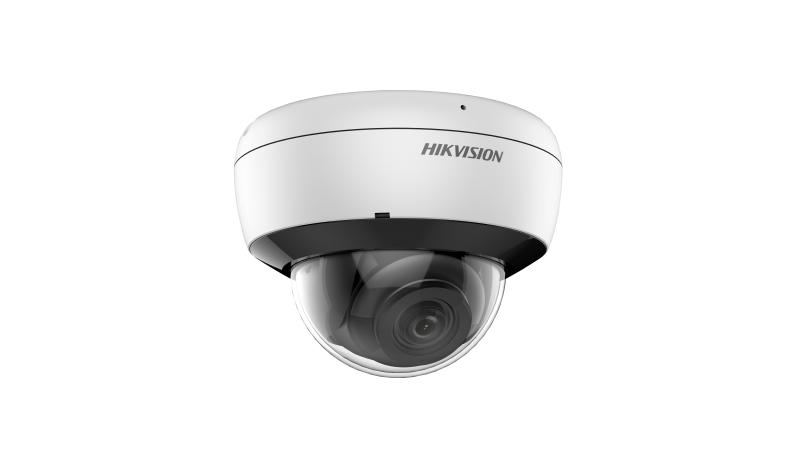

DS-2CD1723G1-I(Z)(S)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Day &NightIR cut filter
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
DNR3D DNR

Lens
Lens2.8 to 8 mm
Auto-IrisNo
ApertureF1.9
FocusWithout -Z model: Manual,-Z model: Auto
FOVHorizontal field of view: 111° to 54.7°,Vertical field of view: 57.8° to 30.5°,Diagonal field of view: 134° to 63°
Lens MountΦ14

Illuminator
IR RangeUp to 20 m
Wavelength850 nm

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set
Region of Interest1 fixed region for main stream

Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio-S model: Built-in mic, 1 input (line in), 1 output (line out),Without -S model: Built-in mic
Alarm1 alarm input, 1 alarm output
Video Output1Vp-p composite output (75 Ω/BNC)
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard
H.264+Main stream supports
H.265+Main stream supports

General
Firmware Version5.5.82
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
ResetYes
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current-Z model: 12 VDC, 0.8 A, max. 10 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W Without -Z model: 12 VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 8 W
MaterialBubble: plastic, front cover: plastic, bottom base: metal
DimensionsCamera: Φ 121 mm × 92 mm (4.8" × 3.6") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightCamera: Approx. 400 g (0.9 lb.) With package: Approx. 700 g (1.5 lb.)
Interface ProtectionIP66, IK10

Camera

Image Sensor

1/2.8" Progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Day &Night

IR cut filter

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°

DNR

3D DNR

Lens

2.8 to 8 mm

Auto-Iris

Aperture

F1.9

Focus

Without -Z model: Manual,-Z model: Auto

FOV

Horizontal field of view: 111° to 54.7°,Vertical field of view: 57.8° to 30.5°,Diagonal field of view: 134° to 63°

Lens Mount

Φ14

Illuminator

IR Range

Up to 20 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Region of Interest

1 fixed region for main stream


Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger

Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio

-S model: Built-in mic, 1 input (line in), 1 output (line out),Without -S model: Built-in mic

Alarm

1 alarm input, 1 alarm output

Video Output

1Vp-p composite output (75 Ω/BNC)

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+

Main stream supports

H.265+

Main stream supports

General

Firmware Version

5.5.82

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Reset

Yes

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

-Z model: 12 VDC, 0.8 A, max. 10 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W Without -Z model: 12 VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 8 W

Material

Bubble: plastic, front cover: plastic, bottom base: metal

Dimensions

Camera: Φ 121 mm × 92 mm (4.8" × 3.6") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Camera: Approx. 400 g (0.9 lb.) With package: Approx. 700 g (1.5 lb.)

Interface Protection

IP66, IK10

Camera

Image Sensor1/2.8" Progressive scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON)
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Day &NightIR cut filter
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
DNR3D DNR

Lens

Lens2.8 to 8 mm
Auto-IrisNo
ApertureF1.9
FocusWithout -Z model: Manual,-Z model: Auto
FOVHorizontal field of view: 111° to 54.7°,Vertical field of view: 57.8° to 30.5°,Diagonal field of view: 134° to 63°
Lens MountΦ14

Illuminator

IR RangeUp to 20 m
Wavelength850 nm

Video

Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps

Audio

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Region of Interest1 fixed region for main stream


Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio-S model: Built-in mic, 1 input (line in), 1 output (line out),Without -S model: Built-in mic
Alarm1 alarm input, 1 alarm output
Video Output1Vp-p composite output (75 Ω/BNC)
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+Main stream supports
H.265+Main stream supports

General

Firmware Version5.5.82
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
ResetYes
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current-Z model: 12 VDC, 0.8 A, max. 10 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W Without -Z model: 12 VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 8 W
MaterialBubble: plastic, front cover: plastic, bottom base: metal
DimensionsCamera: Φ 121 mm × 92 mm (4.8" × 3.6") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightCamera: Approx. 400 g (0.9 lb.) With package: Approx. 700 g (1.5 lb.)
Interface ProtectionIP66, IK10
