DS-2CD4B45G0-IZS

EOL

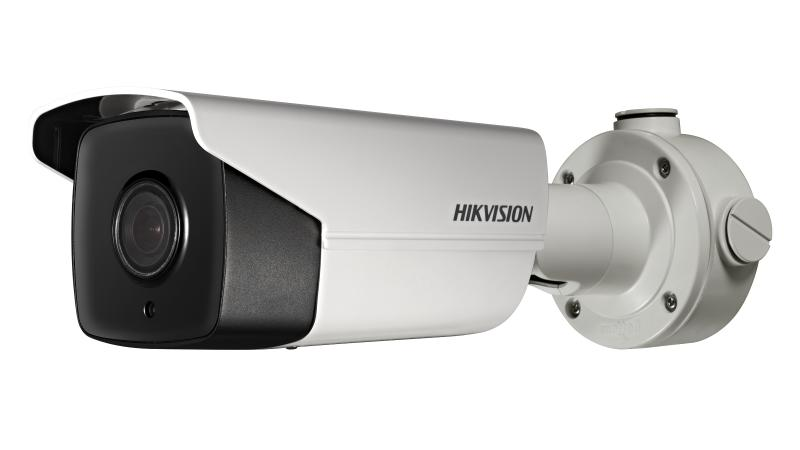

4MP Moto Varifocal Bullet Network Camera

High quality imaging with 4 MP resolution
Efficient H.265 compression technology to save bandwidth and storage
12x optical zoom (4.7~65.8mm/F1.4) lens with Smart Focus
Water and dust resistant (IP67)

View Less

Camera
Image Sensor1/2.5'' Progressive Scan CMOS
Min. Illumination0.007 Lux @ (F1.2, AGC ON)，0.01 Lux @ (F1.4, AGC ON)
Shutter Speed1 s – 1/100,000 s
Slow ShutterYes
Day &NightIR Cut Filter
Wide Dynamic Range105dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR3D DNR

Lens
Lens4.7 to 65.8 mm @F1.4
Auto-IrisDC drive
FocusAuto
FOV4.7 to 65.8 mm @F1.4, horizontal FOV 58.25° to 2.90°, vertical FOV 33.60° to 1.64°, diagonal FOV 65.87° to 3.31°
Lens MountIntegrated

Illuminator
IR RangeUp to 120 m
Wavelength850nm

Video
Max. Resolution2560 × 1440
Main Stream50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps – 16 Mbps
SVCH.264 and H.265 encoding

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringSupport
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set
Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Region of InterestSupport 4 fixed region for each stream, and dynamic face tracking

Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance adjustable by client software or web browser
Target CroppingYes
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-connect
Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

4G
StandardONVIF (PROFILE S, PROFILE G), ISAPI

Interface
Communication Interface1 RJ45 10M/100M Ethernet port;,1 RS-485 interface
Audio1 input (line in/mic in), 1 output (line out), mono
Alarm1 input, 1 output (up to 24V DC, 1A or 110V AC, 500mA)
Video Output1Vp-p composite output (75 Ω/BNC)
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard
H.264+Support
H.265+Support

Smart Feature-set
Exception DetectionScene change detection, defocus detection, audio exception detection
StatisticsCounting
Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Region Entrance DetectionEnter a pre-defined virtual region from the outside place
Region Exit DetectionExit from a pre-defined virtual region
Object Removal DetectionObjects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage DetectionObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
RecognitionFace detection

General
General FunctionOne-key reset, anti-flicker, three streams, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
ResetYes
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply12 V DC ± 20%, PoE (802.3at, class 4), three-core terminal blocks
DimensionsCamera: 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″),With package:,386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
WeightCamera: 1740 g (3.8 lb.),With package: 2125 g (4.7 lb.)
Power Consumption and Current12 V DC ± 20%: Max. 12 W/1 A,PoE (802.3at, 42.5V-57V), 0.2 A to 0.3 A
Interface ProtectionIP67,TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Specification

Camera

Image Sensor

1/2.5'' Progressive Scan CMOS

Min. Illumination

0.007 Lux @ (F1.2, AGC ON)，0.01 Lux @ (F1.4, AGC ON)

Shutter Speed

1 s – 1/100,000 s

Slow Shutter

Yes

Day &Night

IR Cut Filter

Wide Dynamic Range

105dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

DNR

3D DNR

Lens

4.7 to 65.8 mm @F1.4

Auto-Iris

DC drive

Focus

Auto

FOV

4.7 to 65.8 mm @F1.4, horizontal FOV 58.25° to 2.90°, vertical FOV 33.60° to 1.64°, diagonal FOV 65.87° to 3.31°

Lens Mount

Integrated

Illuminator

IR Range

Up to 120 m

Wavelength

850nm

Video

Max. Resolution

2560 × 1440

Main Stream

50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

Video Compression

Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps – 16 Mbps

SVC

H.264 and H.265 encoding

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Environment Noise Filtering

Support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Behavior Analysis

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Region of Interest

Support 4 fixed region for each stream, and dynamic face tracking


Image Enhancement

BLC/HLC/3D DNR/Defog/EIS

Image Setting

Rotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance adjustable by client software or web browser

Target Cropping

Yes

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Simultaneous Live View

Up to 20 channels

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-connect

Web Browser

IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Standard

ONVIF (PROFILE S, PROFILE G), ISAPI

Interface

Communication Interface

1 RJ45 10M/100M Ethernet port;,1 RS-485 interface

Audio

1 input (line in/mic in), 1 output (line out), mono

Alarm

1 input, 1 output (up to 24V DC, 1A or 110V AC, 500mA)

Video Output

1Vp-p composite output (75 Ω/BNC)

On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+

Support

H.265+

Support

Smart Feature-set

Exception Detection

Scene change detection, defocus detection, audio exception detection

Statistics

Counting

Line Crossing Detection

Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported

Intrusion Detection

Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported

Region Entrance Detection

Enter a pre-defined virtual region from the outside place

Region Exit Detection

Exit from a pre-defined virtual region

Object Removal Detection

Objects removed from the pre-defined region, such as the exhibits on display.

Unattended Baggage Detection

Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Recognition

Face detection

General

General Function

One-key reset, anti-flicker, three streams, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter

Reset

Yes

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Power Supply

12 V DC ± 20%, PoE (802.3at, class 4), three-core terminal blocks

Dimensions

Camera: 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″),With package:,386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)

Weight

Camera: 1740 g (3.8 lb.),With package: 2125 g (4.7 lb.)

Power Consumption and Current

12 V DC ± 20%: Max. 12 W/1 A,PoE (802.3at, 42.5V-57V), 0.2 A to 0.3 A

Interface Protection

IP67,TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor1/2.5'' Progressive Scan CMOS
Min. Illumination0.007 Lux @ (F1.2, AGC ON)，0.01 Lux @ (F1.4, AGC ON)
Shutter Speed1 s – 1/100,000 s
Slow ShutterYes
Day &NightIR Cut Filter
Wide Dynamic Range105dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR3D DNR

Lens

Lens4.7 to 65.8 mm @F1.4
Auto-IrisDC drive
FocusAuto
FOV4.7 to 65.8 mm @F1.4, horizontal FOV 58.25° to 2.90°, vertical FOV 33.60° to 1.64°, diagonal FOV 65.87° to 3.31°
Lens MountIntegrated

Illuminator

IR RangeUp to 120 m
Wavelength850nm

Video

Max. Resolution2560 × 1440
Main Stream50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps – 16 Mbps
SVCH.264 and H.265 encoding

Audio

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringSupport
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Region of InterestSupport 4 fixed region for each stream, and dynamic face tracking


Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance adjustable by client software or web browser
Target CroppingYes
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-connect
Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

StandardONVIF (PROFILE S, PROFILE G), ISAPI

Interface

Communication Interface1 RJ45 10M/100M Ethernet port;,1 RS-485 interface
Audio1 input (line in/mic in), 1 output (line out), mono
Alarm1 input, 1 output (up to 24V DC, 1A or 110V AC, 500mA)
Video Output1Vp-p composite output (75 Ω/BNC)
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+Support
H.265+Support

Smart Feature-set

Exception DetectionScene change detection, defocus detection, audio exception detection
StatisticsCounting
Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Region Entrance DetectionEnter a pre-defined virtual region from the outside place
Region Exit DetectionExit from a pre-defined virtual region
Object Removal DetectionObjects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage DetectionObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
RecognitionFace detection

General

General FunctionOne-key reset, anti-flicker, three streams, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
ResetYes
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply12 V DC ± 20%, PoE (802.3at, class 4), three-core terminal blocks
DimensionsCamera: 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″),With package:,386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
WeightCamera: 1740 g (3.8 lb.),With package: 2125 g (4.7 lb.)
Power Consumption and Current12 V DC ± 20%: Max. 12 W/1 A,PoE (802.3at, 42.5V-57V), 0.2 A to 0.3 A
Interface ProtectionIP67,TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Firmware

DS-2CD4B45G0-IZS

4MP Moto Varifocal Bullet Network Camera

Specification

Camera

Lens

Illuminator

Video

Audio

Smart Feature-Set


Network

4G

Interface

Compression Standard

Smart Feature-set

General

Specification
